| Applications: | |||
|---|---|---|---|
| |||
| Features: | |||
|
| Part Number | Description | End Type | Opening Thru Ball | Max PSI |
|---|---|---|---|---|
| VSMT200CF | Standard Port | 2″ Flange x 2″ Male NPT | 1-1/2″ | 150 PSI |
| VSF200CF | Standard Port | 2″ Flange x 2″ Male Adapter | 1-1/2″ | 100 PSI |
| MVS220FP | Full Port | 2″ Flange x 2″ Female NPT | 2″ | 300 PSI |

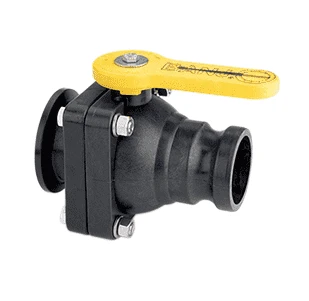

| MVSF220FP | Full Port | 2″ Flange x 2″ Male Adapter | 2″ | 150 PSI |
| MVS220CF | Full Port | 2″ Flange x 2″ FP Flange | 2″ | 150 PSI |
| MVSMT220FP | Full Port | 2″ Flange x 2″ Male NPT | 2″ | 225 PSI |
![]() | |||
|---|---|---|---|
| Replacement Parts for VSF200CF, VSMT200CF, MVS220FP, MVSF220FP, MVS220CF, MVSMT220FP | |||
| Item | Part Number | Description | Quantity Required |
| 3 | V20021 | Handle Washer | 1 |
| 4 | V20020 | Handle Bolt | 1 |
| 6 | V20018 | Lock Washer | 4 |
| 7 | V20019 | 3/8″ 316 SS Hex Nut | 4 |
| 8 | V20010SS | Body Bolt | 4 |
| 9 | V20060* | Upper Stem Bushing | 1 |
| 10 | V20060* | Thrust Bearing | 1 |
| 11 | VS20151 | Stem | 1 |
| Replacement Parts for VSF200CF, VSMT200CF | |||
|---|---|---|---|
| Item | Part Number | Description | Quantity Required |
| 1 | VMT20254 | 2″ Male NPT Body (VSMT200CF) | 1 |
| 1 | VF20254 | 2″ Male Quick Connect Body (VSF200CF) | 1 |
| 2 | VS20152SH | 2″ Short Handle | 1 |
| 12 | VS20258A* | Seat | 2 |
| 13 | VS20255* | Ball | 1 |
| 14 | V21204* | Body Gasket | 1 |
* Is included in Repair Kit
