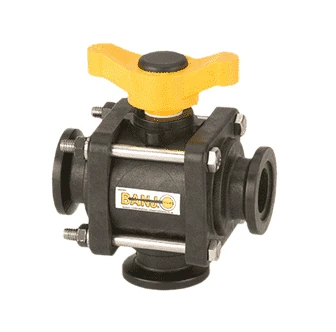

MV100BL By Banjo | 3-Way Manifold Ball Valve For Bottom Load | 4-Bolt | 1″ Flange X 1″ Flange | Opening Thru Ball: 1″ | T Handle | 300 PSI | Polypropylene | Pack Of 6

Original price was: $292.24.Current price is: $97.99.

Applications:
Fluids
Features:
BOTTOM LOAD: Directional flow right or left. Valve can be turned off to stop flow. Stainless steel bolts Precision molded in polypropylene. Polypro py lene is reinforced with fiber glass for additional strength Self-aligning ball moves freely against the PTFE seats for smooth operation The valve opens and closes with very little pressure on the handle Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats PTFE self-lubricating stem bushings and seats cannot stick or bind FKM (viton type) seals

Part Number	Description	End Type	Opening Thru Ball	Max PSI	Handle Type	Package Quantity
4 Bolt Bottom Load Manifold Valves
MV100BL	Full Port	1″ Flange x 1″ Flange x 1″ Flange	1″	300 PSI	T	1
MV200BL	Standard Port	2″ Flange x 2″ Flange x 2″ Flange	1-1/2″	225 PSI	T	1
MV220BL	Full Port	2″ Flange x 2″ Flange x 2″ Flange	2″	150 PSI	Straight	1
6 Bolt Bottom Load Manifold Valves
MV300BL	Full Port	3″ Flange x 3″ Flange x 3″ Flange	3″	150 PSI	Straight	1
