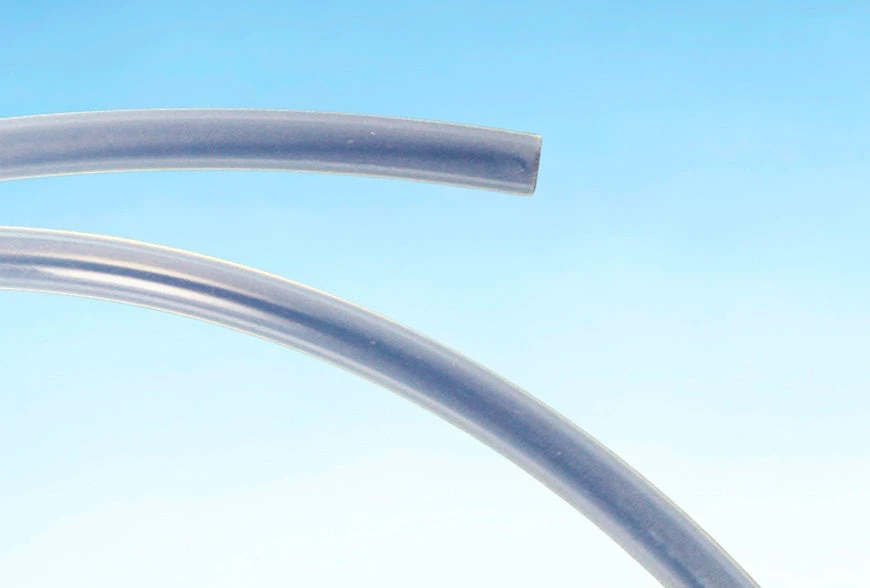

MUS1000-0250-047-50 Versilon™ By Saint Gobain | 5/32″ I.D. X 1/4″ O.D. X 3/32″ Wall | MUS-1000 Tubing | 50′ Package Length
Original price was: $186.00.$97.99Current price is: $97.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Application: | Environmental, Chemical processing, General industrial, Water purification, Nuclear | Tube: | Fluoropolymer |
|---|---|---|---|
| Continuous Operating Temp Range: | -400 deg. F (-400 deg. C) to 400 deg. F (205 deg. C) | Color: | Clear |
| Durometer Hardness (Shore D), 1 sec: | 56 / D2240 | ||
| Literature: | Versilon™ MUS-1000 Tubing (PDF) | ||
| Other Features: | |||
| |||
| Part Number (50ft Lengths) | Inside Diameter (in. or mm) | Outside Diameter (in. or mm) | Wall Thickness (in. or mm) | Bend Radius (in.) | Max. Working Pressure at 73 deg. F (PSI)* | Max. Working Pressure at 212 deg. F (PSI)* | Max. Working Pressure at 400 deg. F (PSI)* |
|---|---|---|---|---|---|---|---|
| MUS1000-0125-031-50 | 1/16″ | 1/8″ | 1/32″ | 1/2″ | 379 PSI | 165 PSI | 87 PSI |
| MUS1000-0250-062-50 | 1/8″ | 1/4″ | 1/16″ | 1/2″ | 383 PSI | 167 PSI | 88 PSI |
| MUS1000-0250-047-50 | 5/32″ | 1/4″ | 3/32″ | 3/4″ | 266 PSI | 116 PSI | 61 PSI |
| MUS1000-0250-031-50 | 3/16″ | 1/4″ | 1/32″ | 1″ | 163 PSI | 71 PSI | 37 PSI |
| MUS1000-0312-031-50 | 1/4″ | 5/16″ | 1/32″ | 1-3/4″ | 129 PSI | 56 PSI | 29 PSI |
| MUS1000-0375-062-50 | 1/4″ | 3/8″ | 1/16″ | 1″ | 230 PSI | 100 PSI | 53 PSI |
| MUS1000-0500-062-50 | 3/8″ | 1/2″ | 1/16″ | 2″ | 164 PSI | 71 PSI | 38 PSI |
* Safety factor of 4 to 1 ratio burst pressure to working pressure. ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available “by the foot” through our site.
