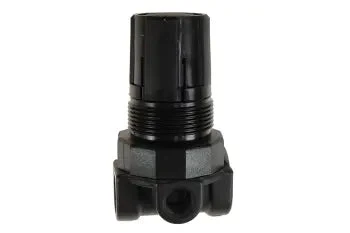

MR2-JP By Coilhose | 1/4″ Miniature Series Regulator | 0-20 PSI | Zinc Die Cast Range | Panel Mount | 250 PSI | Zinc Die Cast

Original price was: $29.00.Current price is: $20.30.

Overview:
The Miniature Series Regulators are designed for applications where space is limited and flow requirements are low. They excel in control panels and miniature circuitry. Each unit can be disassembled by hand for easy maintenance.
Features:
Reliable low friction “U” cup piston seal. 1/8″ gauge ports can be used for secondary outlets. Built in self-relieving feature prevents excessive downstream pressure build-up. Adjusting knob locks in place to maintain pressure setting.
Specifications:
Maximum Supply Pressure: 250 PSI Maximum Operating Temp.: 250° F Materials: Adjusting Knob: High-Impact Plastic Body: Zinc Die Cast Height: 2-7/8″ Maximum Diameter: 1-1/2″ Weight: 0.55 oz. Regulator Pressure Ranges: 0-125 – Standard 0-50 – Optional 0-20 – Optional

Supply 100 PSI Regulated Pressure	Pressure Drop
Supply 100 PSI Regulated Pressure	5	10	15
25	4 SCFM	8 SCFM	11 SCFM
50	3 SCFM	9 SCFM	11 SCFM
75	2 SCFM	6 SCFM	9 SCFM
Note: All values are approximate.

Part Number	Port Size	Gauge	Panel Mount	Pressure Range	Max Pressure
MR1	1/8″	No	No	0-125 PSI	250 PSI
MR1-P	1/8″	No	Yes	0-125 PSI	250 PSI
MR1-L	1/8″	No	No	0-50 PSI	250 PSI
MR1-J	1/8″	No	No	0-20 PSI	250 PSI
MR1-G	1/8″	Yes	No	0-125 PSI	250 PSI
MR1-GP	1/8″	Yes	Yes	0-125 PSI	250 PSI
MR1-GL	1/8″	Yes	No	0-50 PSI	250 PSI
MR1-GJ	1/8″	Yes	No	0-20 PSI	250 PSI
MR1-GLP	1/8″	Yes	Yes	0-50 PSI	250 PSI
MR1-GJP	1/8″	Yes	Yes	0-20 PSI	250 PSI
MR1-G-CS*	1/8″	Yes	No	0-125 PSI	250 PSI

MR2	1/4″	No	No	0-125 PSI	250 PSI
MR2-L	1/4″	No	No	0-50 PSI	250 PSI
MR2-J	1/4″	No	No	0-20 PSI	250 PSI
MR2-G	1/4″	Yes	No	0-125 PSI	250 PSI
MR2-P	1/4″	No	Yes	0-125 PSI	250 PSI
MR2-JP	1/4″	No	Yes	0-20 PSI	250 PSI
MR2-LP	1/4″	No	Yes	0-50 PSI	250 PSI
MR2-GP	1/4″	Yes	Yes	0-125 PSI	250 PSI
MR2-GL	1/4″	Yes	No	0-50 PSI	250 PSI
MR2-GJ	1/4″	Yes	No	0-20 PSI	250 PSI
MR2-DL	1/4″	No	No	0-125 PSI	250 PSI
MR2-GJP	1/4″	Yes	Yes	0-20 PSI	250 PSI
MR2-G-CS*	1/4″	Yes	No	0-125 PSI	250 PSI
