Sale!

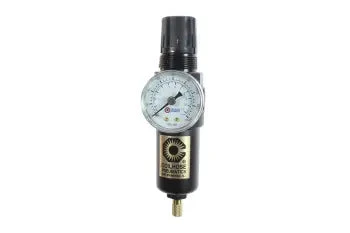

MFC2-GLMX By Coilhose | Miniature Series | Integral Filter/Regulator | 1/4″ Female NPT Thread | Gauge | Metal Bowl | 0-50 PSI | 5 Micron Element

Original price was: $77.98.Current price is: $54.59.

Overview:
Miniature combination units have all the same features as the individual units, but in space saving configurations. Assembled units save costly assembly time when installed.
Features:
Combines filter and regulator in one compact unit.

Part Number	Port Size	Drain	Gauge	Material	Max Pressure	Micron Level	Pressure Range
MFC1	1/8″	Manual	No	Polycarbonate	150 PSI	20 Micron	0-125 PSI
MFC1-G	1/8″	Manual	Yes	Polycarbonate	150 PSI	20 Micron	0-125 PSI
MFC1-G-CS*	1/8″	Manual	Yes	Polycarbonate	150 PSI	20 Micron	0-125 PSI
MFC1-GM	1/8″	Manual	Yes	Metal	250 PSI	20 Micron	0-125 PSI

MFC2	1/4″	Manual	No	Polycarbonate	150 PSI	20 Micron	0-125 PSI
MFC2-MX	1/4″	Manual	No	Metal	250 PSI	5 Micron	0-125 PSI
MFC2-M	1/4″	Manual	No	Metal	250 PSI	20 Micron	0-125 PSI
MFC2-LX	1/4″	Manual	No	Polycarbonate	150 PSI	5 Micron	0-50 PSI
MFC2-L	1/4″	Manual	No	Polycarbonate	150 PSI	20 Micron	0-50 PSI
MFC2-J	1/4″	Manual	No	Polycarbonate	150 PSI	20 Micron	0-20 PSI
MFC2-GX	1/4″	Manual	Yes	Polycarbonate	150 PSI	5 Micron	0-125 PSI
MFC2-GP	1/4″	Manual	Yes	Polycarbonate	150 PSI	20 Micron	0-125 PSI
MFC2-GMX	1/4″	Manual	Yes	Metal	250 PSI	5 Micron	0-125 PSI
MFC2-GM	1/4″	Manual	Yes	Metal	250 PSI	20 Micron	0-125 PSI
MFC2-GLX	1/4″	Manual	Yes	Polycarbonate	150 PSI	5 Micron	0-50 PSI
MFC2-GLMX	1/4″	Manual	Yes	Metal	250 PSI	5 Micron	0-50 PSI
MFC2-GL	1/4″	Manual	Yes	Polycarbonate	150 PSI	20 Micron	0-50 PSI
MFC2-GJ	1/4″	Manual	Yes	Polycarbonate	150 PSI	20 Micron	0-20 PSI
MFC2-G-CS*	1/4″	Manual	Yes	Polycarbonate	150 PSI	20 Micron	0-125 PSI
MFC2-G	1/4″	Manual	Yes	Polycarbonate	150 PSI	20 Micron	0-125 PSI
MFC2-CS*	1/4″	Manual	No	Polycarbonate	150 PSI	20 Micron	0-125 PSI
MFC2-X	1/4″	Manual	No	Polycarbonate	150 PSI	5 Micron	0-125 PSI
