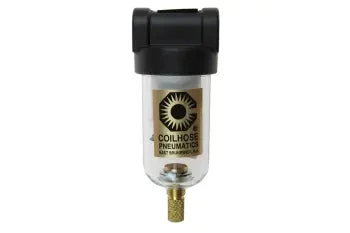

MC1 By Coilhose | 1/8″ Miniature Series Coalescing Filter | 0.3 Micron Element | 150 PSI | Zinc Die Cast

Original price was: $66.11.Current price is: $46.28.

SKU: AG9ZZ 14699071078770 Categories: Additional Equipment, Tools & Equipment Tags: 0.3 Micron Element, 029292504348, 1/8", 150 PSI, Coalescing Filters, Coilhose, Compact, Control panels, Filter, Manual Drain, MC1, Miniature circuitry, Miniature Series

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
The Miniature Series Filters are designed for applications where space is limited and flow requirements are low. They excel in control panels and miniature circuitry. Each unit can be disassembled by hand for easy maintenance.
Features:
Compact size Removes 99.97% of solids and fluids down to .3 microns. Tough die cast zinc body. Manual drain for quick and easy fluid removal. Metal bowl option 1.5 oz. bowl capacity
Specifications:
Maximum Supply Pressure: Plastic Bowl: 150 PSI Metal Bowl: 250 PSI Maximum Operating Temp.: Plastic Bowl: 120° F Metal Bowl: 250° F Materials: Plastic Bowl: Polycarbonate Metal Bowl: Zinc Die Cast Body: Zinc Die Cast Filter Element: Porous Polypropylene Height: 4″ Maximum Diameter: 1-1/2″ Bowl Capacity: 1.5 oz.
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

SCFM at 1.5 PSID Pressure Drop
Supply Pressure	SCFM
10 PSI	2.4 SCFM
20 PSI	3.3 SCFM
30 PSI	4.3 SCFM
40 PSI	5.2 SCFM
50 PSI	6.2 SCFM
60 PSI	7.2 SCFM
80 PSI	9.1 SCFM
100 PSI	11 SCFM
120 PSI	12.9 SCFM
140 PSI	14.8 SCFM
Note: All values are approximate.

Part Number	Drain	Material	Max Pressure	Micron Level	Port Size
MC1	Manual	Polycarbonate	150 PSI	0.3 Micron	1/8″
MC1-M	Manual	Metal	250 PSI	0.3 Micron	1/8″
MC2	Manual	Polycarbonate	150 PSI	0.3 Micron	1/4″
MC2-M	Manual	Metal	250 PSI	0.3 Micron	1/4″
