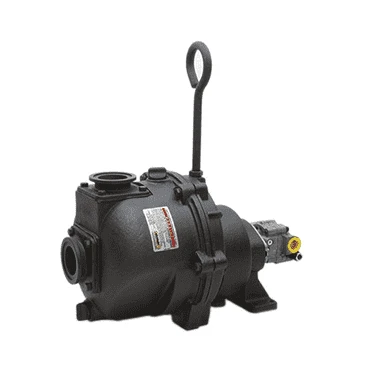

M332PIHYW By Banjo | Centrifugal Pumps | 3″ Manifold Cast Iron Wet Seal Pump With 21 HP Hydraulic Motor (M332 Series)

Original price was: $302.00.Current price is: $95.99.

SKU: AG9ZZ 1480700231716 Categories: Pumps, Tools & Equipment Tags: 3" M332 Series Cast Iron Manifold Wet Seal Pumps with Hydraulic Motors & Replacement Parts, 3" M332 Series Cast Iron Manifold Wet Seal Pumps with Hydraulic Motors Spool Valves, 3" Self-Priming Centrifugal Pumps, 3" Standard Port Ball Valves "Stubby Valve" Replacement Parts, All-categories, Banjo Liquid Handling Products, Bolted Ball Valves, Collection-lvl1_All Equipment, Collection-lvl2_Pumps, Collection-lvl3_Cast Iron Pumps, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Pumps, Replacement Parts for VSMT300, Self-Priming Centrifugal Pumps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Hydraulic Motor Data:
Application:	Fluids, Agriculture, Industrial
Product Manual:	N/A
Replacement Parts:	Replacement Parts for 3″ M332 Series Cast Iron Manifold Wet Seal Pumps with Hydraulic Motors
U.S. Gallons/Rev.	0.0038	Cubic Inches/Rev.	0.878
Liters/Rev.	0.0144	Max Hydraulic Pressure	3000 PSI
Min Hydraulic Pressure	600 PSI	Inlet Port	1-1/16-12UN-2B
Outlet Port	1-5/16-12UN-2B	Minimum GPM Required	9 GPM 2370 RPM
Maximum GPM Required	13 GPM 3450 RPM	Ideal GPM Required	9 GPM 3600 RPM
Connection Information
Inlet	“A” Port	Outlet	“B” Port
Supplied check valve is to ensure proper rotation of the Banjo pump. Place check valve in outlet port (marked “B”) for proper right hand rotation. It is recommended that a minimum 3/4″ inlet line & a minimum 1″ outlet line be used. The outlet port must be connected directly back to the hydraulic fluid reservoir & not to any valving, regulators or flow diverters. The outlet port/return line back pressure must not exceed 250 PSI.
Spool Valve Information
Required Outlet Flow	Min 9 GPM / Max 13 GPM	Required System Pressure	Min 600 PSI / Max 3000 PSI
Pump Features:
Durable cast iron construction Dynamically balanced impeller Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber Pump end separated from engine Large weep holes between pump end and motor “V” Shaped for quicker priming
Notes:
DO NOT USE WITH FLAMMABLE LIQUIDS. Recommendation: Banjo recommends using the motor spool control valve or a suitable equivalent. The lack of such a valve in this circuit may cause failure to the hydraulic motor.

Part Number	Description	Horsepower
3″ M332 Series Cast Iron Manifold Wet Seal Pumps with Hydraulic Motors
M332PIHYW	3″ Manifold Cast Iron Wet Seal Pump with 21 HP Hydraulic Motor	21 HP	(Made to Order)
Hydraulic Motor Spool Valve
HSV1000	Hydraulic Motor Spool Valve	N/A	—

Replacement Parts for 3″ Cast Iron Hydraulic Pumps
Item	Part Number	Description	Quantity Required
1	13719	O-Ring	1
2	15035E	EPDM Mechanical Seal Assembly	1
3	12901	SS Rear Bracket Washer	4
4	12717	O-Ring for Screw Head	4
5	12709	O-Ring	4
6	13055	Adapter Shaft	1
7	19702	Volute	1
8	19772	5 Vane Impeller	1
9	12705	Check Valve	1
10	12719A	Body O-Ring	1
11	12902A	Impeller Key	1
12	16901	1/4″ SQ. 3/4″ Key Stock	1
13	V10118	5/16″ SS Lock Washer	9
14	CV10175	Gasket	2
15	12777	1/2″ Plug	2
16	UV15163	Prime/Drain Plug O-Ring	2
17	19703W	Rear Bracket	1
18	19201W	Wet Seal Reservoir	1
19	12715A	SS Bracket Screws	9
20	18034	5/8″ SS Jam Nut	1
21	18033	Handle	1
22	M19712X	Pump Body	1
23	13777	3/4″ Plug	2
24	13778	O-Ring	2
25	19001H	Reservoir Backing Plate	1
26	HY1012	Tyrone® UM16 Hydraulic Motor	1
27	18502	SKF 63306-2RS1/C3 Bearing	1
28	18055H	Hydraulic Motor Adapter Shaft	1
29	19766	3/8″ Flat Washer	1
30	A203V	O-Ring	1
32	17449	Bolt	2
33	18058	1/2″ Split Lock Washer	2
