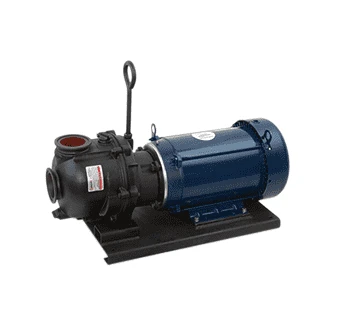

M332PIE10W By Banjo | Centrifugal Pumps | 3″ Manifold Cast Iron Wet Seal Pump With 10 HP Three Phase Electric Motor (M332 Series)

Original price was: $359.00.Current price is: $98.99.

SKU: AG9ZZ 1480699772964 Categories: Pumps, Tools & Equipment Tags: 3" M332 Series Cast Iron Manifold Wet Seal Pumps with Electric or Gas Engines & Replacement Parts, 3" M332 Series Cast Iron Manifold Wet Seal Pumps with Electric or Gas Engines Bearing Pedestals Single Pumps, 3" Self-Priming Centrifugal Pumps, All-categories, Banjo Liquid Handling Products, Collection-lvl1_All Equipment, Collection-lvl2_Pumps, Collection-lvl3_Cast Iron Pumps, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Pumps, Self-Priming Centrifugal Pumps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Features:
Application:	Fluids, Agriculture, Industrial
Product Manual:	N/A	Video:	N/A
Run Dry Capability Seal reservoir double seals Durable cast iron construction Dynamically balanced impeller Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber Pump end separated from engine Large weep holes between pump end and engine “V” Shaped for quicker priming
Notes:
DO NOT USE WITH FLAMMABLE LIQUIDS. NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.

Part Number	Description	Horsepower
3″ M332 Series Cast Iron Pumps with Electric Motors
M332PIH13W	3″ Manifold Cast Iron Wet Seal Pump with 13 HP Honda® Engine with Electric Start & Pull Rope	13 HP	—
3″ M332 Series Cast Iron Pumps with Gas Engines
M332PIE10W	3″ Manifold Cast Iron Wet Seal Pump with 10 HP Three Phase Electric Motor	10 HP	(Made to Order)
M332PIE101W	3″ Manifold Cast Iron Wet Seal Pump with 10 HP Single Phase Electric Motor	10 HP	(Made to Order)
3″ M332 Series Cast Iron Bearing Pedestal
M332POIW	3″ Manifold Cast Iron Wet Seal Pump Only	N/A	(Made to Order)


Replacement Parts for M332 Wet Seal Cast Iron Pumps
Item	Part Number	Description	Quantity Required
1	13719	O-Ring	1
2	15035E	EPDM Mechanical Seal Assembly	1
3	12034	5/16″ – 24 x 3-3/4″ HHCS	4
4	12901	5/16″ Flat Washer	8
5	12717	O-Ring for Bracket Screw	4
6	12709	O-Ring	4
7	13055	Adapter Shaft	1
8	19702	Volute	1
9	19772	5 Vane Impeller	1
10	12705	Check Valve	1
11	12774VA	Impeller Bolt Gasket	1
12	12719A	Body O-Ring	1
13	12902A	Impeller Key	1
14	16901	1/4″ sq x 3/4″ Key Stock	1
15	13766	3/8″ – 24 x 2-1/4″ HFS	1
18	17029	5/16″ – 18 x 1-3/4″ HHCS	4
19	V10118	5/16″ Lock Washer	13
20	V10119	5/16″ Hex Nut	4
21	CV10175	Gasket	2
22	12777	1/2″ Plug	2
23	UV15163	O-Ring	2
24	19703W	Rear Bracket	1
25	19201W	Wet Seal Reservoir	1
26	12715A	5/16″- 24 x 1-3/4″ HHCS	9
27	18034	5/8″-11 Jam Nut	1
28	18033	Pump Handle	1
29	M19712X	Pump Body	1
30	13777	3/4″ Plug	2
31	13778	O-Ring	2
