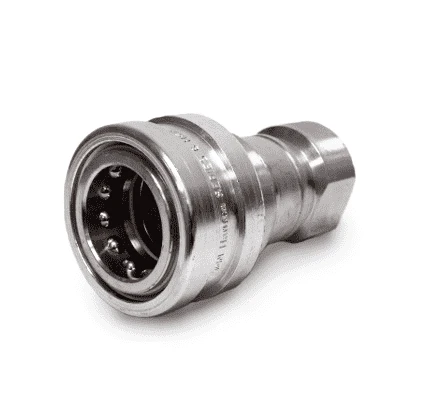

LL8HP36BS115 Hansen® By Danfoss | HK 1-8 Series | Quick Disconnect Coupling | 1″ Female BSPP Valved X 1″ ISO 7241-1-B | Female Socket | PTFE Seal | 303 Stainless Steel
Original price was: $370.00.$99.99Current price is: $99.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
Eaton’s HK Series stainless steel is a general purpose industrial interchange coupling available in valved or non-valved designs, offered in 303/316
grades of stainless steel for excellent corrosion resistance in rugged applications. The HK Series features a ball latch mechanism with automatic
self-sealing poppet valves.
See How to Order
SPECIFICATIONS
| Applications & Markets: |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Features: | Meets dimensional requirements to ISO Standard 7241-1 Series B | 303/316 Stainless Steel construction for greater corrosion resistance and fluid compatibility | Self-sealing poppet valve design provides excellent high and low pressure sealing | Standard body material: 303 or 316 Stainless Steel | Standard seal material: Buna-N Seal Options available: PTFE, Neoprene, EPDM, FKM or Kalrez® | |
| Seal Elastomer Data | ||||||
| Elastomer | Buna-N | Neoprene | EPDM **not compatible with mineral-based greases or oils | FKM (Fluorocarbon) | PTFE | Kalrez® |
| Application Specification | None | None | None | MIL-R-25897 | Contact Eaton for additional information | Contact Eaton for additional information |
| Max. Operation Temperature Range | -40°C to +121°C 40°F to +250°F | -54°C to +100°C -65°F to +212°F | -54°C to +149°C -65°F to +300°F | -29°C to +204°C -15°F to +400°F | Contact Eaton for additional information | Contact Eaton for additional information |
**Based on Eaton recommended temperatures (for reference only)
For seals not listed call 330-535-7105
Physical Characteristics
| Series | Body Size | ISO Size | Nominal Flow Diameter | Max. Operating Pressure | Rated Flow | Air Inclusion | Fluid Loss | ||
|---|---|---|---|---|---|---|---|---|---|
| in | mm | mm | bar | psi | lpm | gpm | cc.max. | cc.max. | |
| 1HK | 1/8 | 5 | 4.4 | 344 | 5000 | 3 | 0.8 | 0.6 | 0.5 |
| 2HK | 1/4 | 6.3 | 5.9 | 255 | 3700 | 12 | 3 | 1.2 | 0.9 |
| 3HK | 3/8 | 10 | 7.8 | 255 | 3700 | 23 | 6 | 2.9 | 2.1 |
| 4HK | 1/2 | 12.5 | 10 | 293 | 4250 | 45 | 12 | 3.6 | 3.5 |
| 6HK | 3/4 | 20 | 17 | 242 | 3500 | 100 | 26 | 11.5 | 9.3 |
| 8HK | 1 | 25 | 19.6 | 207 | 3000 | 189 | 50 | 18.0 | 16.9 |
| 10HK | 1 1/4** | – | 26.7 | 118 | 1700 | 288 | 76 | 48.0 | 48.0 |
| 12HK | 1 1/2 | 40 | 35.1 | 152 | 2200 | 375 | 99 | 91.3 | 91.3 |
| 20HK | 2 1/2 | 50 | 46 | 104 | 1500 | 757 | 200 | 209.9 | 209.9 |
*For questions related to vacuum please contact Eaton
** No ISO Standard available for the 10HK
| NV = No Valve | VAA = Valve Actuator Assembly | SL = Sleeve Lock | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Seal Elastomer | Body Size | ISO Size | Thread Size (Female) | Dimensions | ||||||
| 303 Stainless Steel | 316 Stainless Steel | in | mm | NPTF | BSPP | SAE | A | B | Across Flats | ||
| in(mm) | in(mm) | in(mm) | |||||||||
| LL2H16115 | ML2H16115 | PTFE | 1/4 | 6.3 | 1/4-18 | – | – | 2.26(57.4) | 1.14(29.0) | 0.75(19.1) | |
| LL2H16BS115 | – | PTFE | 1/4 | 6.3 | – | 1/4-19 | – | 2.31(58.7) | 1.14(29.0) | 0.75(19.1) | |
| LL3H21115 | ML3H21115 | PTFE | 3/8 | 10 | 3/8-18 | – | – | 2.56(65.0) | 1.42(36.1) | 0.88(22.4) | |
| LL4HP26115 | – | PTFE | 1/2 | 12.5 | 1/2-14 | – | – | 2.96(75.2) | 1.86(47.2) | 1.13(28.7) | |
| LL4HP26BS115 | – | PTFE | 1/2 | 12.5 | – | 1/4-14 | – | 2.96(75.2) | 1.86(47.2) | 1.13(28.7) | |
| – | ML6HP31115 | PTFE | 3/4 | 20 | 3/4-14 | – | – | 3.48(88.4) | 2.22(56.4) | 1.31(33.3) | |
| LL6HP31BS115 | – | PTFE | 3/4 | 20 | – | 3/4-14 | – | 3.48(88.4) | 2.22(56.4) | 1.31(33.3) | |
| LL8HP36115 | ML8HP36115 | PTFE | 1 | 25 | 1-11 1/2 | – | – | 4.13(104.9) | 2.61(66.3) | 1.75(44.5) | |
| LL8HP36BS115 | – | PTFE | 1 | 25 | – | 1-11 1/2 | – | 4.13(104.9) | 2.61(66.3) | 1.75(44.5) | |
