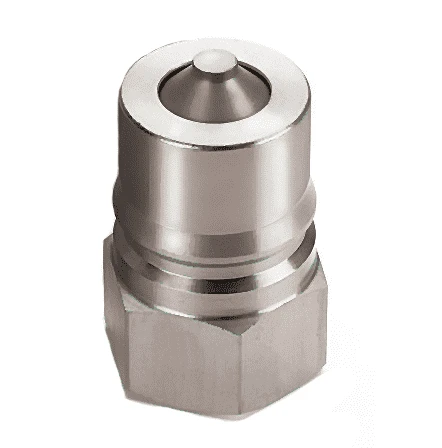

LL4KP10VAA Hansen® By Danfoss | HK 1-8 Series | Quick Disconnect Coupling | 7/8″ SAE 37° Non-Valved X 1/2″ ISO 7241-1-B With Valve Actuator | Male Plug | Standard Buna-N Seal | 303 Stainless Steel

Original price was: $96.60.Current price is: $67.62.

SKU: AG9ZZ 1479830274084 Categories: Adapters & More, Quick Disconnects w/o Barb Tags: All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Quick Disconnects, Collection-lvl3_Hydraulic Quick Disconnects, Eaton Hansen HK 1-8 Series Male Plug Quick Disconnect Couplings, Eaton Hansen HK Series ISO 7241-1-B Interchange Quick Disconnect Couplings, Fluid Transfer and Hydraulic, Hydraulic Hoses and Fittings, Hydraulic Quick Disconnect Couplings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, PriceTeirs_Quick Disconnects, Quick-disconnects, TempQDFilter_ISO B

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Eaton’s HK Series stainless steel is a general purpose industrial interchange coupling available in valved or non-valved designs, offered in 303/316 grades of stainless steel
for excellent corrosion resistance in rugged applications. The HK Series features a ball latch mechanism with automatic self-sealing poppet valves.

See How to Order

SPECIFICATIONS

Seal Elastomer Data
Applications & Markets:	Agriculture Chemical Fluid Transfer	Food and Beverage General Industry Law Enforcement / Rescue	Hydraulic Tool Nuclear Oil and Gas	Transportation Trucks Construction	Consumer Products HVAC	Aerospace Medical
Features:	Meets dimensional requirements to ISO Standard 7241-1 Series B	303/316 Stainless Steel construction for greater corrosion resistance and fluid compatibility	Self-sealing poppet valve design provides excellent high and low pressure sealing	Standard body material: 303 or 316 Stainless Steel	Standard seal material: Buna-N Seal Options available: PTFE, Neoprene, EPDM, FKM or Kalrez®
Elastomer	Buna-N	Neoprene	EPDM **not compatible with mineral-based greases or oils	FKM (Fluorocarbon)	PTFE	Kalrez®
Application Specification	None	None	None	MIL-R-25897	Contact Eaton for additional information	Contact Eaton for additional information
Max. Operation Temperature Range	-40°C to +121°C 40°F to +250°F	-54°C to +100°C -65°F to +212°F	-54°C to +149°C -65°F to +300°F	-29°C to +204°C -15°F to +400°F	Contact Eaton for additional information	Contact Eaton for additional information

Physical Characteristics

Series	Body Size	ISO Size	Nominal Flow Diameter	Max. Operating Pressure		Rated Flow		Air Inclusion	Fluid Loss
	in	mm	mm	bar	psi	lpm	gpm	cc.max.	cc.max.
1HK	1/8	5	4.4	207	3000	3	0.8	0.6	0.5
2HK	1/4	6.3	5.9	186	2700	12	3	1.2	0.9
3HK	3/8	10	7.8	152	2200	23	6	2.9	2.1
4HK	1/2	12.5	10	155	2250	45	12	3.6	3.5
6HK	3/4	20	17	138	2000	100	26	11.5	9.3
8HK	1	25	19.6	103	1500	189	50	18.0	16.9
10HK	1 1/4.*	–	26.7	83	1200	288	76	48.0	48.0
12HK	1 1/2	40	35.1	104	1500	375	99	91.3	91.3
20HK	2 1/2	50	46	49	700	757	200	209.9	209.9

*For questions related to vacuum please contact Eaton
**No ISO Standard available for the 10HK

Dimensions

NV = No Valve \| VAA = Valve Actuator Assembly \| VB = Bleeder Valve (Plugs Only)
Part Number		Seal Elastomer	Valved	Body Size	ISO Size	Thread Size (Female)			Dimensions
303 Stainless Steel	316 Stainless Steel			Body Size	ISO Size	NPTF	BSPP	SAE	C	D	E	Hex
303 Stainless Steel	316 Stainless Steel			in	in	NPTF	BSPP	SAE	in(mm)	in(mm)	in(mm)	in(mm)
LL1K11	ML1K11	Standard Buna-N	Yes	1/8	5	1/8-27	–	–	1.26(32.0)	0.65(16.5)	0.44(11.2)	0.56(14.2)
LL1K11BS	–	Standard Buna-N	Yes	1/8	5	–	1/8-28	–	1.26(32.0)	0.65(16.5)	0.44(11.2)	0.56(14.2)
LL1K11VAA	–	Standard Buna-N	No	1/8	5	1/8-27	–	–	1.26(32.0)	0.65(16.5)	0.44(11.2)	0.56(14.2)

LL2K16	ML2K16	Standard Buna-N	Yes	1/4	6.3	1/4-18	–	–	1.52(38.6)	0.87(22.1)	0.56(14.2)	0.75(19.1)
LL2K16146	–	Special Buna-N‡	Yes	1/4	6.3	1/4-18	–	–	1.52(38.6)	0.87(22.1)	0.56(14.2)	0.75(19.1)
LL2K16BS	ML2K16BS	Standard Buna-N	Yes	1/4	6.3	–	1/4-19	–	1.52(38.6)	0.87(22.1)	0.56(14.2)	0.75(19.1)
LL2K16BSVAA	–	Standard Buna-N	No	1/4	6.3	–	1/4-19	–	1.52(38.6)	0.87(22.1)	0.56(14.2)	0.75(19.1)
LL2K16NV	–	Standard Buna-N	No	1/4	6.3	1/4-18	–	–	1.52(38.6)	0.87(22.1)	0.56(14.2)	0.75(19.1)
LL2K16VAA	–	Standard Buna-N	No	1/4	6.3	1/4-18	–	–	1.52(38.6)	0.87(22.1)	0.56(14.2)	0.75(19.1)
LL2K16VB	–	Standard Buna-N	Yes	1/4	6.3	1/4-18	–	–	1.52(38.6)	0.87(22.1)	0.56(14.2)	0.75(19.1)

LL2K6	–	Standard Buna-N	Yes	1/4	6.3	–	–	9/16-18	1.66(42.2)	1.01(25.7)	0.70(17.8)	0.88(22.4)

LL3K21	ML3K21	Standard Buna-N	Yes	3/8	10	3/8-18	–	–	1.76(44.7)	1.01(25.7)	0.61(15.5)	0.88(22.4)
LL3K21BS	ML3K21BS	Standard Buna-N	Yes	3/8	10	–	3/8-19	–	1.76(44.7)	1.01(25.7)	0.61(15.5)	0.88(22.4)

LL4KP26NV	–	Standard Buna-N	No	1/2	12.5	1/2-14	–	–	2.03(51.6)	1.30(33.0)	0.76(19.3)	1.13(28.7)
LL4KP26VAA	ML4KP26VAA	Standard Buna-N	No	1/2	12.5	1/2-14	–	–	2.03(51.6)	1.30(33.0)	0.76(19.3)	1.13(28.7)
LL4KP10VAA	–	Standard Buna-N	No	3/4	20	–	–	7/8-14	2.36(59.9)	1.52(38.6)	0.71(18.0)	1.31(33.3)

LL6KP31NV	–	Standard Buna-N	No	3/4	20	3/4-14	–	–	2.36(59.9)	1.52(38.6)	0.71(18.0)	1.31(33.3)
LL6KP31VAA	ML6KP31VAA	Standard Buna-N	No	3/4	20	3/4-14	–	–	2.36(59.9)	1.52(38.6)	0.71(18.0)	1.31(33.3)
LL6KP12VAA	–	Standard Buna-N	No	3/4	20	–	–	1-1/16-12	2.54(64.5)	1.59(40.4)	0.89(22.6)	1.38(35.1)

LL8KP36NV	–	Standard Buna-N	No	1	25	1-11 1/2	–	–	2.85(72.4)	1.88(47.8)	0.97(24.6)	1.63(41.4)
LL8KP36VAA	–	Standard Buna-N	No	1	25	1-11 1/2	–	–	2.85(72.4)	1.88(47.8)	0.97(24.6)	1.63(41.4)
LL8KP16NV	–	Standard Buna-N	No	1	25	–	–	1-5/16-12	2.85(72.4)	2.17(55.1)	0.97(24.6)	1.88(47.8)
