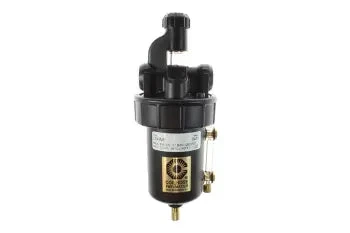

L100MB By Coilhose | General Purpose Series Lubricator With Metal Bowl | 1″ Pipe Size

Original price was: $226.25.Current price is: $97.99.

SKU: AG9ZZ 14699097129330 Categories: Pneumatic Equipment, Tools & Equipment Tags: 029292179423, 1" Pipe Size, Atomizing, Coilhose, General Purpose Series, Industrial, Industrial applications, L100MB, Lubrication, Lubricator, Metal Bowl, Mist type atomizing, Oil delivery, Oil-to-air, Zinc Die Cast

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
The General Purpose Series Lubricators offer port sizes from 1/4″ through 2″. This size range allows reliable interchange with other manufactures. Units are manufactured with zinc die cast bodies, and available with plastic bowls with guards or metal bowls. An excellent choice for most industrial applications.
Features:
Mist type atomizing with see through sight glass. Once oil delivery rate is set, proportional oil-to-air delivery rate assures even lubrication at all times. Bowl volumes from 5 oz. to 20 oz.
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Supply Pressure	Pressure Drop
Supply Pressure	1	2	3	4	5
1/4″ at 100 PSI	15 SCFM	30 SCFM	40 SCFM	50 SCFM	58 SCFM
3/8″ at 100 PSI	25 SCFM	50 SCFM	67 SCFM	80 SCFM	90 SCFM
1/2″ at 100 PSI	62 SCFM	88 SCFM	104 SCFM	118 SCFM	127 SCFM
3/4″ at 100 PSI	120 SCFM	190 SCFM	240 SCFM	275 SCFM	300 SCFM
1″ at 100 PSI	140 SCFM	210 SCFM	250 SCFM	290 SCFM	325 SCFM
1-1/4″ at 100 PSI	25 SCFM	120 SCFM	440 SCFM	540 SCFM	575 SCFM
1-1/2″ at 100 PSI	50 SCFM	200 SCFM	380 SCFM	450 SCFM	475 SCFM
Note: All values are approximate.
