Sale!

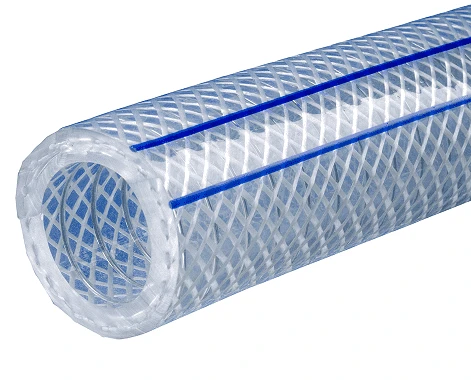

K7300-12X25 Kuri-Tec By Kuriyama | Polywire Plus K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 3/4" ID | 1.196" OD | 25ft Length

K7300-12X25 Kuri-Tec By Kuriyama | Polywire Plus K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 3/4″ ID | 1.196″ OD | 25ft Length

Original price was: $107.67.Current price is: $75.37.

SKU: AG9ZZ 1487166144548 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Pressure and vacuum applications which require excellent
kink resistance,
Ideal for applications which require the hose to withstand
both high vacuum and pressure,
Water transfer, Liquid food transfer,		 SAE Rating: N/A
Other Ratings: N/A Tube: The inner food contact surface is made with PVC
compound formulated with ingredients in compliance with
applicable FDA(03) requirements, meets USDA(17), 3A(01),
NSF(13) and RoHS(15) criteria.
Reinforcement: High tensile yarns and helically-wound spring steel wire Cover: N/A
Temperature Range: +15 deg. F (-9 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), USDA(17)
Other Features:
  • Wire helix reinforcement prevents kinking or collapsing, hose diameter will not expand under normal rated working pressures.
  • 29.9″ Hg vacuum rating @ 70 deg. F.
  • Electrogalvanized helical steel wire can be used for static dissipation (see below **).
  • Yarn reinforcement provides higher working pressure.
  • Heavy duty construction prevents hose O.D. from
    expanding and I.D. from collapsing.
  • Crystal clear – allows visual confirmation of product flow
    Glass-smooth interior – reduces material buildup.
  • Inner contact surface material is NSF certified for food
    applications (standard 51). It also meets other criteria
    such as 3A and USDA.
  • Resistant to chemicals (see chemical-resistance chart in
    Kuri Tec Catalog).
  • Self-extinguishing.
  • Non-marking.
  • Non-toxic.
  • Silicone-free.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight
per Pkg		 Min. Bend
Radius
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C)
(PSI)		 @ 122 deg. F (50 deg. C)
(PSI)		 Coils @ 70 deg. F
K7300-08X100 1/2″ 12.7mm .906″ 23.0mm 250 PSI 125 PSI 100 ft. 26 lbs. 2″
K7300-08X50 1/2″ 12.7mm .906″ 23.0mm 250 PSI 125 PSI 50 ft. 13 lbs. 2″
K7300-08X25 1/2″ 12.7mm .906″ 23.0mm 250 PSI 125 PSI 25 ft. 6.5 lbs. 2″
K7300-12X100 3/4″ 19.1mm 1.196″ 30.4mm 225 PSI 112 PSI 100 ft. 40 lbs. 2-1/2″
K7300-12X50 3/4″ 19.1mm 1.196″ 30.4mm 225 PSI 112 PSI 50 ft. 20 lbs. 2-1/2″
K7300-12X25 3/4″ 19.1mm 1.196″ 30.4mm 225 PSI 112 PSI 25 ft. 10 lbs. 2-1/2″
K7300-16X100 1″ 25.4mm 1.464″ 37.2mm 225 PSI 112 PSI 100 ft. 53lbs. 3-1/2″
K7300-16X50 1″ 25.4mm 1.464″ 37.2mm 225 PSI 112 PSI 50 ft. 26.5lbs. 3-1/2″
K7300-16X25 1″ 25.4mm 1.464″ 37.2mm 225 PSI 112 PSI 25 ft. 13.3 lbs. 3-1/2″
K7300-20X50 1-1/4″ 31.8mm 1.780″ 45.2mm 175 PSI 87 PSI 50 ft. 37 lbs. 4-1/2″
K7300-20X25 1-1/4″ 31.8mm 1.780″ 45.2mm 175 PSI 87 PSI 25 ft. 18.5 lbs. 4-1/2″
K7300-24X50 1-1/2″ 38.1mm 2.030″ 51.6mm 175 PSI 87 PSI 50 ft. 43 lbs. 5-1/2″
K7300-24X25 1-1/2″ 38.1mm 2.030″ 51.6mm 175 PSI 87 PSI 25 ft. 43 lbs. 5-1/2″
K7300-32X50 2″ 50.8mm 2.600″ 66.0mm 150 PSI 75 PSI 50 ft. 64 lbs. 7″
K7300-32X25 2″ 50.8mm 2.600″ 66.0mm 150 PSI 75 PSI 25 ft. 32 lbs. 7″

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Use of compression fittings with Kuri TecĀ® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
** Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
