Sale!

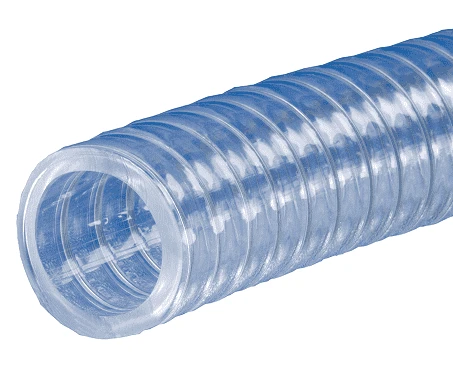

K7160-12X100 Kuri-Tec By Kuriyama | Polyspring K7160 Series | Standard Wall PVC | 100ft Length Food & Beverage Vacuum/Transfer Hose | 3/4″ ID | 1.031″ OD | PVC | 100ft Length
Original price was: $228.00.$96.99Current price is: $96.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Full vacuum lines, Industrial vacuum pumps, Food & beverage dispensing, Air and water supply lines, Pneumatic parts transfer, Car wash applications, Coolant lines, Air breathing lines, Deionized water systems | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria. |
| Reinforcement: | Helically-wound spring steel wire | Cover: | N/A |
| Temperature Range: | +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | 3A(01), FDA(03), NSF(13), RoHS(15), USDA(17), USP(18) |
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal OD | Working Pressure | Standard Lengths | Approx Weight per Pkg | Min. Bend Radius | |||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | @ 70 deg. F (20 deg. C) (PSI) | @ 122 deg. F (50 deg. C) (PSI) | Coils | @ 70 deg. F | ||
| K7160-04X100 | 1/4″ | 6.4mm | .460″ | 11.7mm | 150 PSI | 70 PSI | 100 ft. | 7 lbs. | 1″ |
| K7160-06X100 | 3/8″ | 9.5mm | .600″ | 15.2mm | 100 PSI | 70 PSI | 100 ft. | 11 lbs. | 1-1/2″ |
| K7160-08X100 | 1/2″ | 12.7mm | .750″ | 19.1mm | 100 PSI | 70 PSI | 100 ft. | 15 lbs. | 2″ |
| K7160-10X100 | 5/8″ | 15.9mm | .891″ | 22.6mm | 100 PSI | 50 PSI | 100 ft. | 19 lbs. | 2-1/2″ |
| K7160-12X100 | 3/4″ | 19.1mm | 1.031″ | 26.2mm | 70 PSI | 50 PSI | 100 ft. | 24 lbs. | 3″ |
| K7160-16X100 | 1″ | 25.4mm | 1.297″ | 32.9mm | 70 PSI | 35 PSI | 100 ft. | 33 lbs. | 4″ |
| K7160-20X50 | 1-1/4″ | 31.8mm | 1.609″ | 40.9mm | 70 PSI | 35 PSI | 50 ft. | 25 lbs. | 5″ |
| K7160-24X50 | 1-1/2″ | 38.1mm | 1.860″ | 47.2mm | 50 PSI | 30 PSI | 50 ft. | 29 lbs. | 6″ |
| K7160-32X50 | 2″ | 50.8mm | 2.391″ | 60.7mm | 50 PSI | 30 PSI | 50 ft. | 42 lbs. | 8″ |
| K7160-36X50 | 2-1/4″ | 57.2mm | 2.750″ | 69.9mm | 50 PSI | 30 PSI | 50 ft. | 58 lbs. | 9″ |
| K7160-40X50 | 2-1/2″ | 63.5mm | 3.000″ | 76.2mm | 50 PSI | 30 PSI | 50 ft. | 69 lbs. | 10″ |
| K7160-48X50 | 3″ | 76.2mm | 3.500″ | 88.9mm | 50 PSI | 30 PSI | 50 ft. | 81 lbs. | 12″ |
| K7160-48X25 | 3″ | 76.2mm | 3.500″ | 88.9mm | 50 PSI | 30 PSI | 25 ft. | 40.5 lbs. | 12″ |
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings
with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CAUTION: This product is designed to
dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
