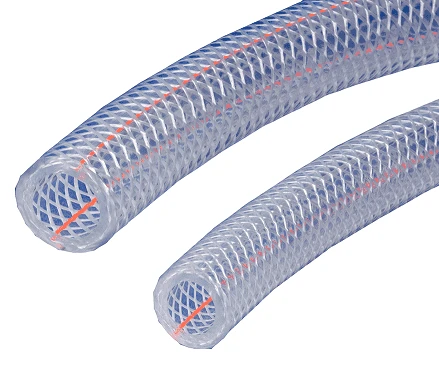

K3150-MM10X100 Kuri-Tec By Kuriyama | Clearbraid K3150 Series | RF Standard Wall Food & Beverage Clear Hose | .394″ ID | .630″ OD | PVC | 100ft Length

Original price was: $80.00.Current price is: $56.00.

SKU: AG9ZZ 1487163686948 Categories: Bulk Hose & Covers, Industrial Hose Tags: All-categories, Collection-lvl1_All Hose, Collection-lvl2_Industrial Hose, Collection-lvl3_Water Hose, Filter-All-Brand_Kuri Tec, Filter-All-Series_K3150 Series, Filter-All-Specifications and Approvals_Applicable 3-A Sanitary Standards, Filter-All-Specifications and Approvals_Applicable FDA Requirements, Filter-All-Specifications and Approvals_Applicable NSF Requirements, Filter-All-Specifications and Approvals_Applicable USDA Requirements, Filter-All-Specifications and Approvals_RoHS Compliant, Filter-All-Specifications and Approvals_UL94HB Flammability Rating, Filter-All-Specifications and Approvals_USP - Class VI, Filter-AllHose-Color_White/Off-White & Clear/Semi-Clear, Filter-AllHose-CoverConstruction_PVC, Filter-AllHose-ID_0.394", Filter-AllHose-TubingConstruction_PVC, Filter-IndustrialHoseTubingJoints-OD_0.630", Industrial Hose Fittings, Industrial-hose, K3150 Series RF Standard Wall PVC Food & Beverage Hose, Kuri Tec Thermoplastic Hose/Tubing, Kuriyama Tigerflex Hose, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Reinforced Water Supply & Food Grade Hoses, Unit-ft-100

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Other Features:
Application:	Food & beverage dispensing, Air and water lines, Deionized water, Powdered food products, Liquid food products, Potable water transfer, Air breathing lines, Pneumatic lines, Packaging machines.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), RoHS(15) and USP(18) Class VI criteria.
Reinforcement:	Reinforced with spiraled polyester yarn and longitudinal orange tracer yarns for identification.	Cover:	N/A
Temperature Range:	25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), FDA(03), NSF(13), RoHS(15), UL(16), USDA(17), USP(18)
Constructed with non-toxic compounds. NSF-51 certified material. Crystal clear – allows visual confirmation of product flow. Longitudinally-reinforced to reduce elongation under pressure. Light weight. Self-extinguishing. Non-marking. Silicone-free. Non-conductive. One-piece lengths. Resistant to chemicals (see chemical-resistance chart). Compound hardness 73±3 Shore “A”.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Coils
K3150-03X100	3/16″	4.8mm	.375″	9.5mm	250 PSI	150 PSI	100 ft.	4 lbs.
K3150-03X300	3/16″	4.8mm	.375″	9.5mm	250 PSI	150 PSI	300 ft.	13 lbs.
K3150-04X100	1/4″	6.5mm	.438″	11.1mm	250 PSI	150 PSI	100 ft.	6 lbs.
K3150-04X300	1/4″	6.5mm	.438″	11.1mm	250 PSI	150 PSI	300 ft.	17 lbs.
K3150-05X100	5/16″	7.9mm	.531″	13.5mm	250 PSI	135 PSI	100 ft.	8 lbs.
K3150-05X300	5/16″	7.9mm	.531″	13.5mm	250 PSI	135 PSI	300 ft.	24 lbs.
K3150-06X100	3/8″	9.5mm	.594″	15.1mm	225 PSI	125 PSI	100 ft.	9 lbs.
K3150-06X300	3/8″	9.5mm	.594″	15.1mm	225 PSI	125 PSI	300 ft.	27 lbs.
K3150-08X100	1/2″	12.7mm	.750″	19.1mm	200 PSI	100 PSI	100 ft.	13 lbs.
K3150-08X300	1/2″	12.7mm	.750″	19.1mm	200 PSI	100 PSI	300 ft.	40 lbs.
K3150-08X600R	1/2″	N/A	N/A	N/A	N/A	N/A	600 ft.	N/A
K3150-10X100	5/8″	15.9mm	.891″	22.6mm	200 PSI	100 PSI	100 ft.	18 lbs.
K3150-10X200	5/8″	15.9mm	.891″	22.6mm	200 PSI	100 PSI	200 ft.	35 lbs.
K3150-12X100	3/4″	19.1mm	1.031″	26.2mm	150 PSI	85 PSI	100 ft.	22 lbs.
K3150-12X200	3/4″	19.1mm	1.031″	26.2mm	150 PSI	85 PSI	200 ft.	43 lbs.
K3150-12X825R	3/4″	N/A	N/A	N/A	N/A	N/A	825 ft.	N/A
K3150-16X100	1″	25.4mm	1.300″	33.0mm	125 PSI	75 PSI	100 ft.	30 lbs.
K3150-16X200	1″	25.4mm	1.300″	33.0mm	125 PSI	75 PSI	200 ft.	59 lbs.
K3150-16X600R	1″	N/A	N/A	N/A	N/A	N/A	600 ft.	N/A
K3150-16X750R	1″	N/A	N/A	N/A	N/A	N/A	750 ft.	N/A
K3150-20X100	1-1/4″	31.8mm	1.620″	41.1mm	100 PSI	55 PSI	100 ft.	45 lbs.
K3150-20X50	1-1/4″	31.8mm	1.620″	41.1mm	100 PSI	55 PSI	50 ft.	23 lbs.
K3150-24X100	1-1/2″	38.1mm	1.938″	49.2mm	100 PSI	50 PSI	100 ft.	64 lbs.
K3150-24X50	1-1/2″	38.1mm	1.938″	49.2mm	100 PSI	50 PSI	50 ft.	32 lbs.
K3150-32X100	2″	50.8mm	2.490″	63.2mm	75 PSI	35 PSI	100 ft.	94 lbs.
K3150-32X50	2″	50.8mm	2.490″	63.2mm	75 PSI	35 PSI	50 ft.	47 lbs.
K3150-MM04X100	.157″	4.0mm	.354″	9.0mm	250 PSI	150 PSI	100 ft.	4 lbs.
K3150-MM06X100	.236″	6.0mm	.433″	11.0mm	250 PSI	150 PSI	100 ft.	6 lbs.
K3150-MM08X100	.315″	8.0mm	.531″	13.5mm	250 PSI	135 PSI	100 ft.	8 lbs.
K3150-MM10X100	.394″	10.0mm	.630″	16.0mm	225 PSI	125 PSI	100 ft.	10 lbs.
K3150-MM12X100	.472″	12.0mm	.709″	18.0mm	200 PSI	100 PSI	100 ft.	12 lbs.
K3150-MM19X100	.748″	19.0mm	1.024″	26.0mm	150 PSI	85 PSI	100 ft.	21 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec Clearbraid® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CLEARBRAID® is a registered trademark of Accuflex Industrial Hose, Ltd. and is used under license by Kuriyama of America, Inc.
