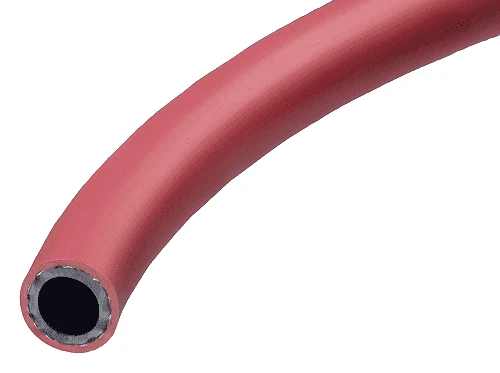

K1174-10X300 Kuri-Tec By Kuriyama | K1174 Series | General Service Air & Water Hose | Red | 5/8″ ID | .860″ OD | PVC | 300ft Length

Original price was: $248.00.Current price is: $95.99.

SPECIFICATIONS

Other Features:
Application:	Transfer of air, water and mild water soluble chemicals, Ideal for in-plant and outdoor applications that require an economical general purpose hose, Excellent air supply line for pneumatic tools and paint spray systems.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black PVC compound
Reinforcement:	High tensile strength yarn	Cover:	PVC compound
Temperature Range:	-15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Economical, lightweight, low temperature alternative to rubber hose. Excellent abrasion resistance. U. V. and weather resistant. 300 PSI working pressure on all sizes. Non-marking pin-pricked cover Complies with RMA’s Class B designation for medium/high oil resistance. One-piece lengths. Formulated for low temperature flexibility.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Coils
K1174-04X500	1/4″	6.5mm	.475″	12.1mm	300 PSI	150 PSI	500 ft.	36 lbs.
K1174-06X500	3/8″	9.5mm	.600″	15.2mm	300 PSI	150 PSI	500 ft.	48 lbs.
K1174-08X300	1/2″	12.7 mm	.750″	19.1mm	300 PSI	150 PSI	300 ft.	42 lbs.
K1174-10X300	5/8″	15.9 mm	.860″	21.8mm	250 PSI	125 PSI	300 ft.	46 lbs.
