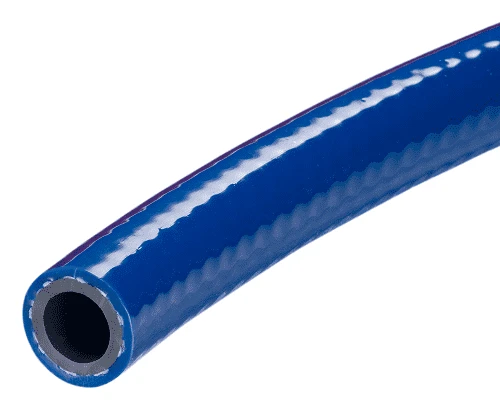

K1156-10X100 Kuri-Tec By Kuriyama | K1156 Series | General Purpose Air & Water Hose | Blue | 5/8″ ID | .895″ OD | PVC | 100ft Length
Original price was: $93.33.$65.33Current price is: $65.33.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Transfer of air, water and mild water soluble chemicals, Ideal for in-plant applications that require an economical general purpose hose, Excellent air supply line for pneumatic tools and paint spray systems. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black PVC compound |
| Reinforcement: | High tensile strength yarn | Cover: | PVC compound |
| Temperature Range: | +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal OD | Working Pressure | Standard Lengths | Approx Weight per Pkg | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | @ 70 deg. F (20 deg. C) (PSI) | @ 122 deg. F (50 deg. C) (PSI) | |||
| K1156-04X100 | 1/4″ | 6.4mm | .500″ | 12.7mm | 300 PSI | 150 PSI | 100 ft. Coil | 8 lbs. |
| K1156-04X500 | 1/4″ | 6.4mm | .500″ | 12.7mm | 300 PSI | 150 PSI | 500 ft. Reel | 44 lbs. |
| K1156-05X500 | 5/16″ | 7.9 mm | .625″ | 15.9mm | 300 PSI | 150 PSI | 500 ft. Reel | 68 lbs. |
| K1156-06X100 | 3/8″ | 9.5mm | .625″ | 15.9mm | 300 PSI | 150 PSI | 100 ft. Coil | 11 lbs. |
| K1156-06X500 | 3/8″ | 9.5mm | .625″ | 15.9mm | 300 PSI | 150 PSI | 500 ft. Reel | 56 lbs. |
| K1156-08X100 | 1/2″ | 12.7mm | .750″ | 19.1mm | 300 PSI | 150 PSI | 100 ft. Coil | 14 lbs. |
| K1156-08X500 | 1/2″ | 12.7mm | .750″ | 19.1mm | 300 PSI | 150 PSI | 500 ft. Reel | 77 lbs. |
| K1156-10X100 | 5/8″ | 15.9mm | .895″ | 22.6mm | 200 PSI | 100 PSI | 100 ft. Coil | 18 lbs. |
| K1156-10X300 | 5/8″ | 15.9mm | .895″ | 22.6mm | 200 PSI | 100 PSI | 300 ft. Reel | 60 lbs. |
| K1156-12X100 | 3/4″ | 19.1mm | 1.030″ | 26.2mm | 200 PSI | 75 PSI | 100 ft. Coil | 22 lbs. |
| K1156-12X300 | 3/4″ | 19.1mm | 1.030″ | 26.2mm | 200 PSI | 75 PSI | 300 ft. Reel | 72 lbs. |
| K1156-16X100 | 1″ | 25.4mm | 1.313″ | 33.3mm | 150 PSI | 75 PSI | 100 ft. Coil | 31 lbs. |
| K1156-16X300 | 1″ | 25.4mm | 1.313″ | 33.3mm | 150 PSI | 75 PSI | 300 ft. Reel | 105 lbs. |
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
