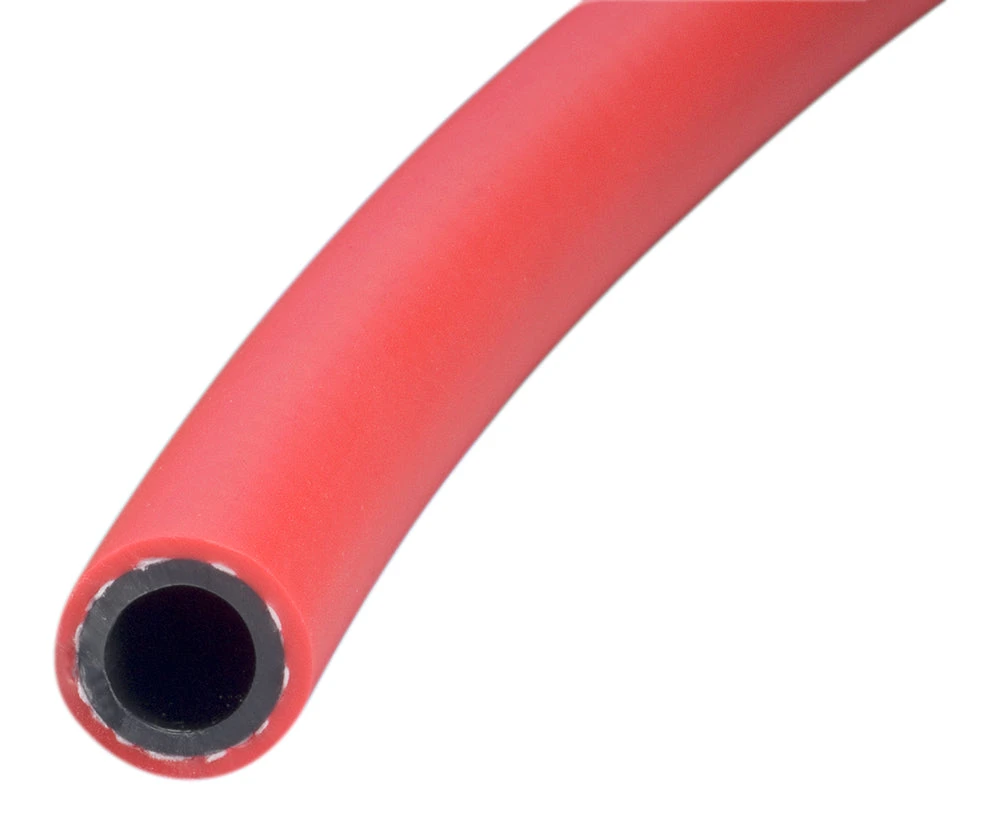

K1134-05X500 Kuri-Tec By Kuriyama | Polyair K1134 Series | Multi-Purpose Air & Water Hose | Red | 5/16″ ID | .625″ OD | 500ft Length

Original price was: $393.33.Current price is: $95.99.

SKU: AG9ZZ 1487175155748 Categories: Bulk Hose & Covers, Industrial Hose Tags: All-categories, Collection-lvl1_All Hose, Collection-lvl2_Industrial Hose, Collection-lvl3_Air and Multipurpose Hose, Collection-lvl3_Chemical Hose, Collection-lvl3_Water Hose, Filter-All-Brand_Kuri Tec, Filter-All-Brand_POLYAIR, Filter-All-Series_K1134 Series, Filter-All-SpecialProperties_Pin Pricked Hose Cover, Filter-All-Specifications and Approvals_RoHS Compliant, Filter-AllHose-Color_Red, Filter-AllHose-CoverConstruction_PVC, Filter-AllHose-ID_0.3125", Filter-AllHose-TubingConstruction_PVC, Filter-IndustrialHoseTubingJoints-OD_0.625", Industrial Hose Fittings, Industrial-hose, Kuri Tec Thermoplastic Hose/Tubing, Kuriyama Tigerflex Hose, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Polyair Series K1131 K1134 K1136 K1137 K1138 Multi-Purpose Air & Water Hose, Reinforced Air & Water Hoses, Unit-ft-500

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Ideal for in-plant applications requiring color coding of hose supply lines, Transfer of air, water and mild water-soluble chemicals, Outdoor applications requiring a low temperature hose, Low pressure spray hose for water-soluble chemicals, General air supply line for pneumatic tools and paint spray systems	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black PVC compound
Reinforcement:	Spiral polyester yarn with additional longitudinal yarns – reduces elongation under pressure.	Cover:	PVC compound
Temperature Range:	-15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(15)
U. V. and weather resistant. Excellent cold weather flexibility. Easily re-coiled after use. Medium/high oil resistance, complies with RMA’s Class B Designation. Non-marking pin-pricked cover. Lightweight. One-piece lengths. Chemical resistance of PVC. Silicone-free core and cover. RoHS(15) compliant.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)
K1134-04X100	1/4″	6.5mm	.500″	12.7mm	300 PSI	180 PSI	100 ft. Coil	8 lbs.
K1134-04X500	1/4″	6.5mm	.500″	12.7mm	300 PSI	180 PSI	500 ft. Reel	44 lbs.
K1134-05X100	5/16″	8.0mm	.625″	15.9mm	300 PSI	180 PSI	100 ft. Coil	13 lbs.
K1134-05X500	5/16″	8.0mm	.625″	15.9mm	300 PSI	180 PSI	500 ft. Reel	67 lbs.
K1134-06X100	3/8″	9.5mm	.625″	15.9mm	300 PSI	180 PSI	100 ft. Coil	11 lbs.
K1134-06X500	3/8″	9.5mm	.625″	15.9mm	300 PSI	180 PSI	500 ft. Reel	58 lbs.
K1134-08X100	1/2″	12.7mm	.813″	20.7mm	300 PSI	180 PSI	100 ft. Coil	18 lbs.
K1134-08X500	1/2″	12.7mm	.813″	20.7mm	300 PSI	180 PSI	500 ft. Reel	93 lbs.
K1134-10X100	5/8″	15.9mm	.906″	23.0mm	250 PSI	125 PSI	100 ft. Coil	19 lbs.
K1134-10X300	5/8″	15.9mm	.906″	23.0mm	250 PSI	125 PSI	300 ft. Reel	64 lbs.
K1134-12X100	3/4″	19.0mm	1.125″	28.6mm	250 PSI	100 PSI	100 ft. Coil	30 lbs.
K1134-12X300	3/4″	19.0mm	1.125″	28.6mm	250 PSI	100 PSI	300 ft. Reel	96 lbs.
K1134-16X100	1″	25.4mm	1.406″	35.7mm	250 PSI	100 PSI	100 ft. Coil	41 lbs.
K1134-16X300	1″	25.4mm	1.406″	35.7mm	250 PSI	100 PSI	300 ft. Reel	130 lbs.
