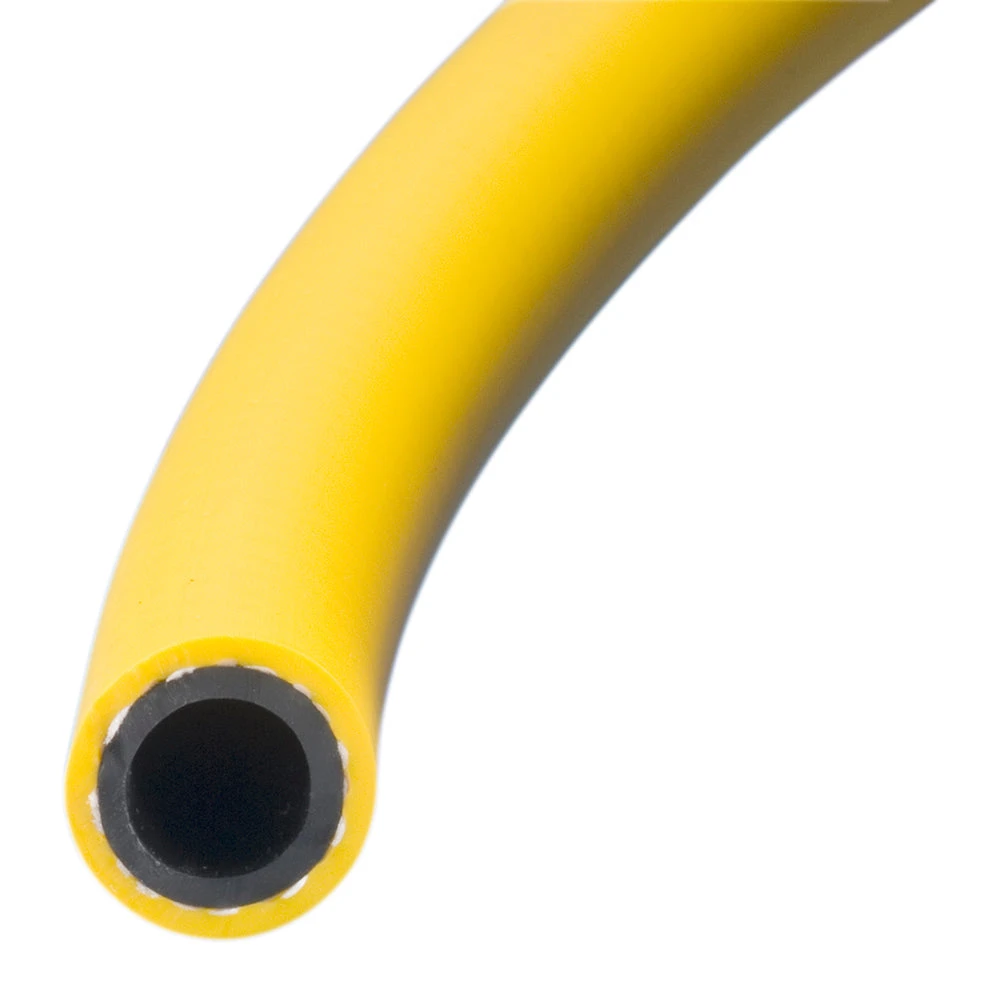

K1131-16X300 Kuri-Tec By Kuriyama | Polyair K1131 Series | Multi-Purpose Air & Water Hose | Yellow | 1″ ID | 1.406″ OD | 300ft Length

Original price was: $390.00.Current price is: $97.99.

SPECIFICATIONS

Other Features:
Application:	Ideal for in-plant applications requiring color coding of hose supply lines, Transfer of air, water and mild water-soluble chemicals, Outdoor applications requiring a low temperature hose, Low pressure spray hose for water-soluble chemicals, General air supply line for pneumatic tools and paint spray systems	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black PVC compound
Reinforcement:	Spiral polyester yarn with additional longitudinal yarns – reduces elongation under pressure.	Cover:	PVC compound
Temperature Range:	-15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(15)
U. V. and weather resistant. Excellent cold weather flexibility. Easily re-coiled after use. Medium/high oil resistance, complies with RMA’s Class B Designation. Non-marking pin-pricked cover. Lightweight. One-piece lengths. Chemical resistance of PVC. Silicone-free core and cover. RoHS(15) compliant.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)
K1131-04X100	1/4″	6.5mm	.500″	12.7mm	300 PSI	180 PSI	100 ft. Coil	8 lbs.
K1131-04X500	1/4″	6.5mm	.500″	12.7mm	300 PSI	180 PSI	500 ft. Reel	44 lbs.
K1131-06X100	3/8″	9.5mm	.625″	15.9mm	300 PSI	180 PSI	100 ft. Coil	11 lbs.
K1131-06X500	3/8″	9.5mm	.625″	15.9mm	300 PSI	180 PSI	500 ft. Reel	58 lbs.
K1131-08X100	1/2″	12.7mm	.813″	20.7mm	300 PSI	180 PSI	100 ft. Coil	18 lbs.
K1131-08X500	1/2″	12.7mm	.813″	20.7mm	300 PSI	180 PSI	500 ft. Reel	93 lbs.
K1131-12X100	3/4″	19.0mm	1.125″	28.6mm	250 PSI	100 PSI	100 ft. Coil	30 lbs.
K1131-12X300	3/4″	19.0mm	1.125″	28.6mm	250 PSI	100 PSI	300 ft. Reel	96 lbs.
K1131-16X100	1″	25.4mm	1.406″	35.7mm	250 PSI	100 PSI	100 ft. Coil	41 lbs.
K1131-16X300	1″	25.4mm	1.406″	35.7mm	250 PSI	100 PSI	300 ft. Reel	130 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
