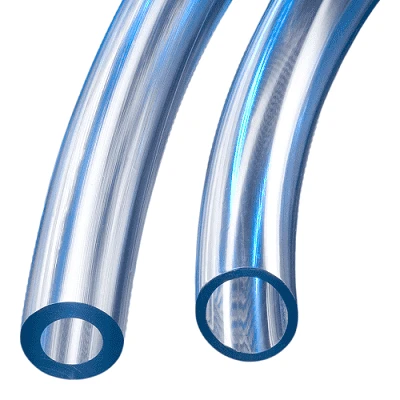

K010-1622X100 Kuri-Tec By Kuriyama | Klearon 73 Series | Clear Tubing | 1″ ID | 1-3/8″ OD | PVC | 100ft Length
Original price was: $228.00.$99.99Current price is: $99.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Tubing for laboratories, Water distillation lines, Bottling plants, Deionized water systems, Air lines, Air conditioning drainage, Refrigeration drainage, Beverage dispensing units, Ice making machines, Printing press equipment, Water, air, drainage lines, High efficiency furnace drainage, Transfer of weak chemicals & acids | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), RoHS(15) and USP(18) Class VI criteria. |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | 25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | 3A(01), FDA(03), NSF(13), RoHS(15), UL(16), USDA(17), USP(18) |
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal OD | Nominal Wall Thickness | Working Pressure @ 70deg. F (20 deg. C) | Standard Length | Approx Weight per Pkg | |||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | (in.) | (mm) | PSI | Ctn/Coils | ||
| K010-0204X100 | 1/8″ | 3.2mm | 1/4″ | 6.4mm | 1/16″ | 1.6mm | 65 PSI | 100ft | 2.0 lbs |
| K010-0304X100 | 3/16″ | 4.8mm | 1/4″ | 6.4mm | 1/32″ | 0.8mm | 50 PSI | 100ft | 1.2 lbs |
| K010-0305X100 | 3/16″ | 4.8mm | 5/16″ | 7.9mm | 1/16″ | 1.6mm | 55 PSI | 100ft | 2.7 lbs |
| K010-0306X100 | 3/16″ | 4.8mm | 3/8″ | 9.5mm | 3/32″ | 2.4mm | 60 PSI | 100ft | 4.5 lbs |
| K010-0406X100 | 1/4″ | 6.4mm | 3/8″ | 9.5mm | 1/16″ | 1.6mm | 55 PSI | 100ft | 3.4 lbs |
| K010-0407X100 | 1/4″ | 6.4mm | 7/16″ | 11.1mm | 3/32″ | 2.4mm | 58 PSI | 100ft | 5.5 lbs |
| K010-0408X100 | 1/4″ | 6.4mm | 1/2″ | 12.7mm | 1/8″ | 3.2mm | 60 PSI | 100ft | 8.0 lbs |
| K010-0507X100 | 5/16″ | 7.9mm | 7/16″ | 11.1mm | 1/16″ | 1.6mm | 50 PSI | 100ft | 4.0 lbs |
| K010-0508X100 | 5/16″ | 7.9mm | 1/2″ | 12.7mm | 3/32″ | 2.4mm | 55 PSI | 100ft | 6.5 lbs |
| K010-0509X100 | 5/16″ | 7.9mm | 9/16″ | 14.3mm | 1/8″ | 3.2mm | 60 PSI | 100ft | 9.4 lbs |
| K010-0608X100 | 3/8″ | 9.5mm | 1/2″ | 12.7mm | 1/16″ | 1.6mm | 45 PSI | 100ft | 4.7 lbs |
| K010-0609X100 | 3/8″ | 9.5mm | 9/16″ | 14.3mm | 3/32″ | 2.4mm | 50 PSI | 100ft | 7.5 lbs |
| K010-0610X100 | 3/8″ | 9.5mm | 5/8″ | 15.9mm | 1/8″ | 3.2mm | 55 PSI | 100ft | 10.7 lbs |
| K010-0709X100 | 7/16″ | 11.1mm | 9/16″ | 14.3mm | 1/16″ | 1.6mm | 35 PSI | 100ft | 6.0 lbs |
| K010-0810X100 | 1/2″ | 12.7mm | 5/8″ | 15.9mm | 1/16″ | 1.6mm | 30 PSI | 100ft | 6.0 lbs |
| K010-0811X100 | 1/2″ | 12.7mm | 11/16″ | 17.5mm | 3/32″ | 2.4mm | 40 PSI | 100ft | 9.5 lbs |
| K010-0812X100 | 1/2″ | 12.7mm | 3/4″ | 19.1mm | 1/8″ | 3.2mm | 45 PSI | 100ft | 13.4 lbs |
| K010-1012X100 | 5/8″ | 15.9mm | 3/4″ | 19.1mm | 1/16″ | 1.6mm | 25 PSI | 100ft | 8.2 lbs |
| K010-1013X100 | 5/8″ | 15.9mm | 13/16″ | 20.6mm | 3/32″ | 2.4mm | 35 PSI | 100ft | 11.6 lbs |
| K010-1014X100 | 5/8″ | 15.9mm | 7/8″ | 22.2mm | 1/8″ | 3.2mm | 40 PSI | 100ft | 16.1 lbs |
| K010-1216X100 | 3/4″ | 19.1mm | 1″ | 25.4mm | 1/8″ | 3.2mm | 35 PSI | 100ft | 18.8 lbs |
| K010-1218X100 | 3/4″ | 19.1mm | 1-1/8″ | 28.6mm | 3/16″ | 4.8mm | 40 PSI | 100ft | 30.0 lbs |
| K010-1220X100 | 3/4″ | 19.1mm | 1-1/4″ | 31.8mm | 1/4″ | 6.4mm | 45 PSI | 100ft | 42.9 lbs |
| K010-1418X100 | 7/8″ | 22.2mm | 1-1/8″ | 28.6mm | 1/8″ | 3.2mm | 30 PSI | 100ft | 21.4 lbs |
| K010-1420X100 | 7/8″ | 22.2mm | 1-1/4″ | 31.8mm | 3/16″ | 4.8mm | 35 PSI | 100ft | 34.1 lbs |
| K010-1620X100 | 1″ | 25.4mm | 1-1/4″ | 31.8mm | 1/8″ | 3.2mm | 25 PSI | 100ft | 24.1 lbs |
| K010-1622X100 | 1″ | 25.4mm | 1-3/8″ | 34.9mm | 3/16″ | 4.8mm | 30 PSI | 100ft | 38.2 lbs |
| K010-1624X100 | 1″ | 25.4mm | 1-1/2″ | 38.1mm | 1/4″ | 6.4mm | 35 PSI | 100ft | 53.6 lbs |
| K010-2024X50 | 1-1/4″ | 31.8mm | 1-1/2″ | 38.1mm | 1/8″ | 3.2mm | 20 PSI | 50ft | 14.8 lbs |
| K010-2026X50 | 1-1/4″ | 31.8mm | 1-5/8″ | 41.3mm | 3/16″ | 4.8mm | 30 PSI | 50ft | 23.1 lbs |
| K010-2028X50 | 1-1/4″ | 31.8mm | 1-3/4″ | 44.5mm | 1/4″ | 6.4mm | 40 PSI | 50ft | 32.2 lbs |
| K010-2430X50 | 1-1/2″ | 38.1mm | 1-7/8″ | 47.6mm | 3/16″ | 4.8mm | 30 PSI | 50ft | 27.1 lbs |
| K010-2432X50 | 1-1/2″ | 38.1mm | 2″ | 50.8mm | 1/4″ | 6.4mm | 35 PSI | 50ft | 37.5 lbs |
| K010-3240X50 | 2″ | 50.8mm | 2-1/2″ | 63.5mm | 1/4″ | 6.4mm | 35 PSI | 50ft | 48.2 lbs |
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings
with Kuri Tec® non-reinforced PVC tubing is not recommended. Hose claims involving use of these fittings will be disallowed.
