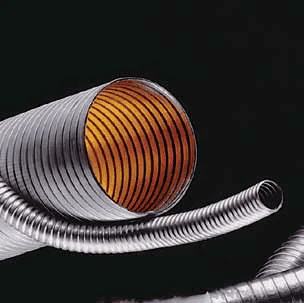

HTS4100-800X25 Hose-Tec By Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Light Weight | ID: 8" | 300 Stainless Steel | 25ft Length

HTS4100-800X25 Hose-Tec By Kuriyama | HT4000 Series | Rough Bore (Unlined) “Multi-Flex” Interlocked Metal Hose | Light Weight | ID: 8″ | 300 Stainless Steel | 25ft Length

Original price was: $338.00.Current price is: $98.99.

SKU: AG9ZZ 1487115321380 Categories: , Tags: , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Abrasive Material Handling, Air Intake Supply; Fresh Air Intake, Bend Restrictor,
Bop (Blow Out Protection) for Hydraulic, Cryogenic and Other High Pressure Hoses,
Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant),
Dust/Fume Collection, Engine Exhaust, Environmental/Industrial Clean-Up,
Fly Ash/Soda Ash Handling, Fume Hood Exhaust, Garage Fume Exhaust,Grain Handling,
High Temperature Material Handling, Hot Air Blower/Suction, Hot Air Ducting,
Industrial Dryer Vents, Liner for Corrugated/Braided Assemblies,
Low Temperature Material Transfer, Oven/Kiln Exhaust, Plastic Pellet Transfer,
Pneumatic Transfer, Protective Armor/Shielding for Hoses Railcar – Bulk Unloading/Loading,
Shielding for Wiring, Spot Cooling/Air Conditioning Ducting, Steam Hose Liner,
Truck – Bulk Unloading/Loading, Truck Exhaust/Flexible Tailpipe Exhaust,
Vacuum Trucks and Equipment		 SAE Rating: N/A
Other Ratings: N/A Tube: 300 Stainless Steel
Reinforcement: N/A Cover: N/A
Temperature Range: Max. Service Temp: Up to 1500 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Construction: A single metal strip is formed to create a flexible interlocked metal hose that offers maximum flexibility and strength, as well as superior service life.
  • Available in Galvanized steel with strip thicknesses from 0.010″ to 0.031″.
  • High strength construction.
  • Temperature and corrosion-resistant.
  • Flexible… can be formed and holds its shape, yet is easily moved.
  • Can be formed and holds its shape, yet is easily moved.
  • 4″ and 5″ available in RIDGELINE™
Part Number Hose Size ID
(in.)		 Min Inside Bend Radius
(in.)		 Length
(ft.) 		Weight
(per foot)
HTS4100-031X25 5/16″ 1.25″ 25ft 0.10 lbs
HTS4100-037X25 3/8″ 1.50″ 25ft 0.12 lbs
HTS4100-062X25 5/8″ 2.00″ 25ft 0.20 lbs
HTS4100-075X25 3/4″ 2.625″ 25ft 0.25 lbs
HTS4100-100X25 1″ 3.50″ 25ft 0.33 lbs
HTS4100-125X25 1-1/4″ 4.00″ 25ft N/A
HTS4100-150X25 1-1/2″ 4.75″ 25ft N/A
HTS4100-162X25 1-5/8″ 5.00″ 25ft 0.54lbs
HTS4100-175X25 1-3/4″ 5.25″ 25ft 0.58lbs
HTS4100-187X25 1-7/8″ 5.50″ 25ft 0.62lbs
HTS4100-200X25 2″ 6.00″ 25ft 0.70lbs
HTS4100-225X25 2-1/4″ 6.75″ 25ft 0.75lbs
HTS4100-250X25 2-1/2″ 7.50″ 25ft 0.80lbs
HTS4100-275X25 2-3/4″ 8.75″ 25ft 0.90lbs
HTS4100-300X25 3″ 10.00″ 25ft 1.00lbs
HTS4100-325X25 3-1/4″ 10.50″ 25ft 1.10lbs
HTS4100-350X25 3-1/2″ 11.00″ 25ft 1.20lbs
HTS4100-400X25 4″ 12.50″ 25ft 1.40lbs
HTS4100-450X25 4-1/2″ 14.00″ 25ft 1.50lbs
HTS4100-500X25 5″ 15.00″ 25ft 1.70lbs
HTS4100-525X25 5-1/4″ 16.00″ 25ft 1.80lbs
HTS4100-550X25 5-1/2″ 17.50″ 25ft 1.90lbs
HTS4100-600X25 6″ 20.00″ 25ft 2.00lbs
HTS4100-625X25 6-1/4″ 20.50″ 25ft 2.10lbs
HTS4100-650X25 6-1/2″ 21.00″ 25ft 2.20lbs
HTS4100-700X25 7″ 22.00″ 25ft 2.40lbs
HTS4100-725X25 7-1/4″ 23.00″ 25ft 2.50lbs
HTS4100-750X25 7-1/2″ 24.00″ 25ft 2.60lbs
HTS4100-800X25 8″ 25.00″ 25ft 2.70lbs

Note : If utilizing packing material, service temperatures may vary.
Note: Standard coil length is 25 ft., WHEN FULLY EXTENDED; other lengths available on request.1hpe
