Sale!

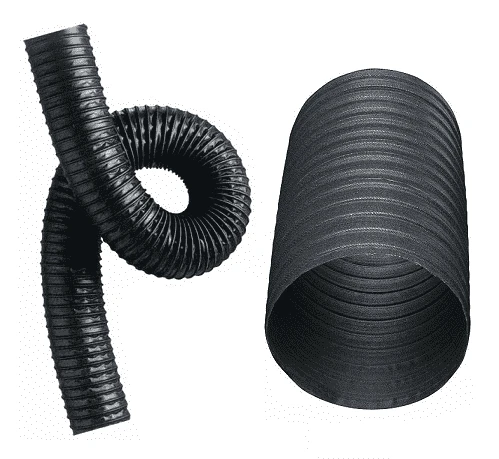

HTNP2-600X25 By Kuriyama | Series HTNP | Neo-Duct Ducting Hose | Black | ID: 6" | 21 PSI | Neoprene Coated | 25ft Length

HTNP2-600X25 By Kuriyama | Series HTNP | Neo-Duct Ducting Hose | Black | ID: 6″ | 21 PSI | Neoprene Coated | 25ft Length

Original price was: $269.00.Current price is: $98.99.

SKU: AG9ZZ 1486948139044 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Dust collection, Air movement,
Fume control, Light Material Handling		 SAE Rating: N/A
Other Ratings: UL94V-O Tube: Neoprene-coated two-ply polyester
Reinforcement: N/A Cover: N/A
Temperature Range: -65 deg. F (-54 deg. C) to 250 deg. F (+127 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Double-ply construction – works extremely well in both positive and negative pressure applications, offers extreme
    flexibility and compressibility, combined with excellent crush-resistance and tensile strength. Recommended for all air
    handling applications, dust and fume control and light material handling.
  • Neoprene coating with polyester fabric construction – provides excellent flexibility, will not rot
  • Manufactured to meet UL94V-O rating
  • Standard packaging: 25′ lengths in cartons
Part Number Nominal ID Min. Bend.
Radius		 Max Working*
Pressure		 Length Weight
(in.) (mm) (in.) (mm) PSI (lbs/ft)
HTNP2-150X25 1-1/2″ 38.1mm 2.6″ 66.0mm 32 PSI 25ft .16 lbs
HTNP2-200X018 2″ 50.8mm 3.5″ 88.9mm 30 PSI 18ft .16 lbs
HTNP2-200X055 2″ 50.8mm 3.5″ 88.9mm 30 PSI 55ft .16 lbs
HTNP2-200X25 2″ 50.8mm 3.5″ 88.9mm 30 PSI 25ft .16 lbs
HTNP2-250X25 2-1/2″ 63.5mm 4.0″ 101.6mm 28 PSI 25ft .28 lbs
HTNP2-300X25 3″ 76.2mm 5.0″ 127.0mm 25 PSI 25ft .33 lbs
HTNP2-350X25 3-1/2″ 88.9mm 5.7″ 144.8mm 24 PSI 25ft .42 lbs
HTNP2-400X25 4″ 101.6mm 6.5″ 165.1mm 23 PSI 25ft .48 lbs
HTNP2-500X25 5″ 127.0mm 7.5″ 190.5mm 22 PSI 25ft .61 lbs
HTNP2-600X25 6″ 152.4mm 9.0″ 228.6mm 21 PSI 25ft .70 lbs
HTNP2-700X25 7″ 177.8mm 9.5″ 241.3mm 20 PSI 25ft .92 lbs
HTNP2-800X25 8″ 203.2mm 10.0″ 254.0mm 19 PSI 25ft 1.04 lbs
HTNP2-250X25 10″ 254mm 11.0″ 279.4mm 18 PSI 25ft 1.36 lbs
HTNP2-1200X25 12″ 304.8mm 13.5″ 342.9mm 17 PSI 25ft 1.85 lbs
HTNP2-1400X25 14″ 355.6mm 15.5″ 393.7mm 16 PSI 25ft 2.10 lbs
HTNP2-1600X25 16″ 406.4mm 18.5″ 469.9mm 15 PSI 25ft 2.40 lbs
HTNP2-1800X25 18″ 457.2mm 22.0″ 558.8mm 6 PSI 25ft 2.70 lbs
HTNP2-2000X25 20″ 508.0mm 24.0″ 609.6mm 4 PSI 25ft 3.00 lbs

* Minimum burst pressure 4:1 safety factor for ID sizes 1″ to 2″ and 3:1 for ID sizes 2 1/2″ to 3″.
