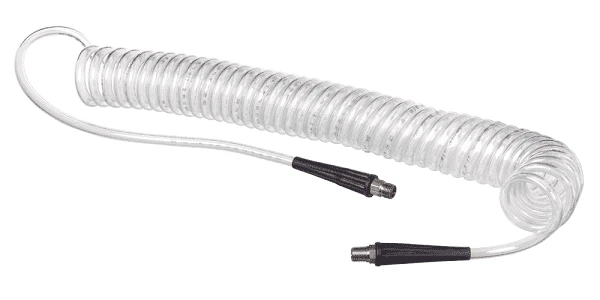

HSC2840-06X25 Kuri-Tec By Kuriyama | HSC2840 Series | Self-Store Coiled Tubing Assemblies For Air Tool Service | 3/8" ID | .570" OD | 3/8" X 1/4" Male NPT Fittings | Ether-Based Polyurethane | Blue Tint | 25ft Length

HSC2840-06X25 Kuri-Tec By Kuriyama | HSC2840 Series | Self-Store Coiled Tubing Assemblies For Air Tool Service | 3/8″ ID | .570″ OD | 3/8″ X 1/4″ Male NPT Fittings | Ether-Based Polyurethane | Blue Tint | 25ft Length

Original price was: $64.88.Current price is: $45.42.

SKU: AG9ZZ 1487298560036 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Self-Store Coiled Tubing Assemblies for Air Tool Service SAE Rating: N/A
Other Ratings: N/A Tube: Ether-Based Polyurethane
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +175 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Standard assemblies have 4″ pigtail and 20″ whip end.
  • Permanent crimped male swivel brass fittings provide greater strength and pull-out resistance.
  • Rubber bend restrictors over fittings prevents scratches and scuffs.
  • Note: Not recommended for transfer of brake fluids.
  • Hose assemblies are furnished with the following fittings:

    • 1/4″ ID Hoses: 1/4″ x 1/4″ Male NPT
    • 3/8″ ID Hoses: 3/8″ x 1/4″ Male NPT
Part Number Nominal ID Nominal OD Working
Pressure		 Working
Length		 Coil OD Standard
Package		 Approx Weight
per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F
(20 deg. C)
(PSI)		 @ 122 deg. F

(50 deg. C)
(PSI)
HSC2840-04X10 1/4″ 6.5mm .375″ 9.5mm 125 PSI 75 PSI 8 ft. 2 in. 10ft 5 lbs.
HSC2840-04X15 1/4″ 6.5mm .375″ 9.5mm 125 PSI 75 PSI 12 ft. 2 in. 10ft 6.5 lbs.
HSC2840-04X20 1/4″ 6.5mm .375″ 9.5mm 125 PSI 75 PSI 16 ft. 2 in. 10ft 8.5 lbs.
HSC2840-04X25 1/4″ 6.5mm .375″ 9.5mm 125 PSI 75 PSI 20 ft. 2 in. 10ft 10 lbs.
HSC2840-04X30 1/4″ 6.5mm .375″ 9.5mm 125 PSI 75 PSI 24 ft. 2 in. 10ft 12 lbs.
HSC2840-04X50 1/4″ 6.5mm .375″ 9.5mm 125 PSI 75 PSI 40 ft. 2 in. 1ft 2 lbs.
HSC2840-06X10 3/8″ 9.5mm .570″ 14.5mm 125 PSI 75 PSI 8 ft. 3 in. 5ft 5 lbs.
HSC2840-06X15 3/8″ 9.5mm .570″ 14.5mm 125 PSI 75 PSI 12 ft. 3 in. 5ft 7 lbs.
HSC2840-06X20 3/8″ 9.5mm .570″ 14.5mm 125 PSI 75 PSI 16 ft. 3 in. 5ft 9 lbs.
HSC2840-06X25 3/8″ 9.5mm .570″ 14.5mm 125 PSI 75 PSI 20 ft. 3 in. 5ft 11 lbs.
HSC2840-06X30 3/8″ 9.5mm .570″ 14.5mm 125 PSI 75 PSI 24 ft. 3 in. 5ft 12 lbs.
HSC2840-06X50 3/8″ 9.5mm .570″ 14.5mm 125 PSI 75 PSI 40 ft. 3 in. 1ft 4 lbs.
