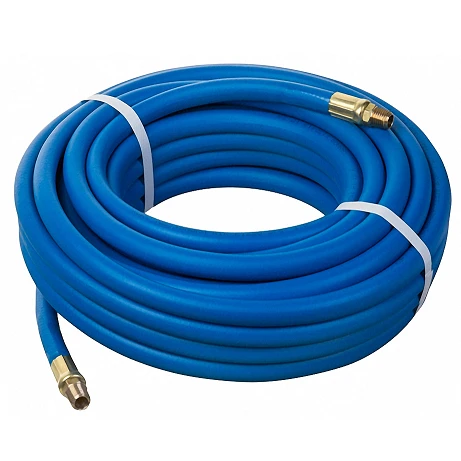

HS1236-04X25 Kuri-Tec By Kuriyama | TUNDRA-AIR HS1236 Series | High Grade Low Temperature Air Hose Assembly | Blue | 1/4″ ID | .500″ OD | 25ft Length
Original price was: $20.84.$14.59Current price is: $14.59.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Air Hose | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | N/A |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -40 deg. F (-40 deg. C) to +150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal OD | Working Pressure | Assembled Lengths | Approx Weight per Pkg | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | @ 70 deg. F (20 deg. C) (PSI) | @ 122 deg. F (50 deg. C) (PSI) | |||
| HS1236-04X100 | 1/4″ | 6.5mm | .500″ | 12.7mm | 300 PSI | 160 PSI | 100 ft. | 7.8 lbs. |
| HS1236-04X25 | 1/4″ | 6.5mm | .500″ | 12.7mm | 300 PSI | 160 PSI | 25 ft. | 2.0 lbs. |
| HS1236-04X50 | 1/4″ | 6.5mm | .500″ | 12.7mm | 300 PSI | 160 PSI | 50 ft. | 4.0 lbs. |
| HS1236-06X100 | 3/8″ | 9.5mm | .625″ | 15.9mm | 300 PSI | 160 PSI | 100 ft. | 10.7 lbs. |
| HS1236-06X25 | 3/8″ | 9.5mm | .625″ | 15.9mm | 300 PSI | 160 PSI | 25 ft. | 2.8 lbs. |
| HS1236-06X50 | 3/8″ | 9.5mm | .625″ | 15.9mm | 300 PSI | 160 PSI | 50 ft. | 5.5 lbs. |
| HS1236-08X100 | 1/2″ | 12.7mm | .781″ | 19.8mm | 300 PSI | 160 PSI | 100 ft. | 16.0 lbs. |
| HS1236-08X25 | 1/2″ | 12.7mm | .781″ | 19.8mm | 300 PSI | 160 PSI | 25 ft. | 4.1 lbs. |
| HS1236-08X50 | 1/2″ | 12.7mm | .781″ | 19.8mm | 300 PSI | 160 PSI | 50 ft. | 8.1 lbs. |
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
