Sale!

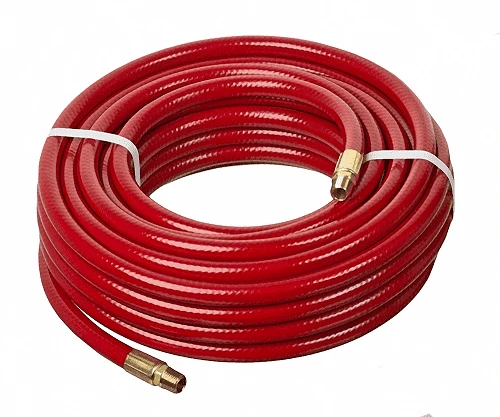

HS1184-04X25 Kuri-Tec By Kuriyama | HS1184 Series | Utility-Grade Air Tool Hose Assembly | Red | 1/4″ ID | .475″ OD | PVC | 25ft Length
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Air Tools | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal OD | Working Pressure | Assembled Lengths | Approx Weight per Pkg | ||
|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | @ 70 deg. F (20 deg. C) (PSI) | |||
| HS1184-04X100 | 1/4″ | 6.5mm | .475″ | 12.1mm | 300 PSI | 100 ft. | 7.4 lbs. |
| HS1184-04X25 | 1/4″ | 6.5mm | .475″ | 12.1mm | 300 PSI | 25 ft. | 1.9 lbs. |
| HS1184-04X50 | 1/4″ | 6.5mm | .475″ | 12.1mm | 300 PSI | 50 ft. | 3.7 lbs. |
| HS1184-06X100 | 3/8″ | 9.5mm | .600″ | 15.2mm | 300 PSI | 100 ft. | 10.2 lbs. |
| HS1184-06X25 | 3/8″ | 9.5mm | .600″ | 15.2mm | 300 PSI | 25 ft. | 2.6 lbs. |
| HS1184-06X50 | 3/8″ | 9.5mm | .600″ | 15.2mm | 300 PSI | 50 ft. | 5.1 lbs. |
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
