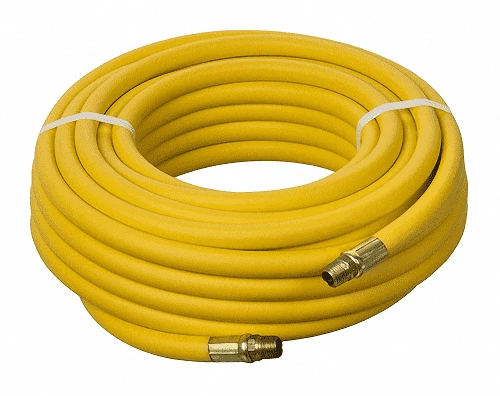

HS1171-08X50 Kuri-Tec By Kuriyama | HS1171 Series | General Service Pneumatic Air Tool Hose Assembly | Yellow | 1/2″ ID | .750″ OD | PVC | 50ft Length
Original price was: $42.59.$29.81Current price is: $29.81.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | N/A | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal OD | Working Pressure | Assembled Lengths | Approx Weight per Pkg | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | @ 70 deg. F (20 deg. C) (PSI) | @ 122 deg. F (50 deg. C) (PSI) | |||
| HS1171-04X100 | 1/4″ | 6.5mm | .475″ | 12.1mm | 300 PSI | 150 PSI | 100 ft. | 7.4 lbs. |
| HS1171-04X25 | 1/4″ | 6.5mm | .475″ | 12.1mm | 300 PSI | 150 PSI | 25 ft. | 1.9 lbs. |
| HS1171-04X50 | 1/4″ | 6.5mm | .475″ | 12.1mm | 300 PSI | 150 PSI | 50 ft. | 3.7 lbs. |
| HS1171-06X100 | 3/8″ | 9.5mm | .600″ | 15.2mm | 300 PSI | 150 PSI | 100 ft. | 10.2 lbs. |
| HS1171-06X25 | 3/8″ | 9.5mm | .600″ | 15.2mm | 300 PSI | 150 PSI | 25 ft. | 2.6 lbs. |
| HS1171-06X50 | 3/8″ | 9.5mm | .600″ | 15.2mm | 300 PSI | 150 PSI | 50 ft. | 5.1 lbs. |
| HS1171-08X100 | 1/2″ | 12.7mm | .750″ | 19.1mm | 300 PSI | 150 PSI | 100 ft. | 14.0 lbs. |
| HS1171-08X25 | 1/2″ | 12.7mm | .750″ | 19.1mm | 300 PSI | 150 PSI | 25 ft. | 3.5 lbs. |
| HS1171-08X50 | 1/2″ | 12.7mm | .750″ | 19.1mm | 300 PSI | 150 PSI | 50 ft. | 7.0 lbs. |
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
