Sale!

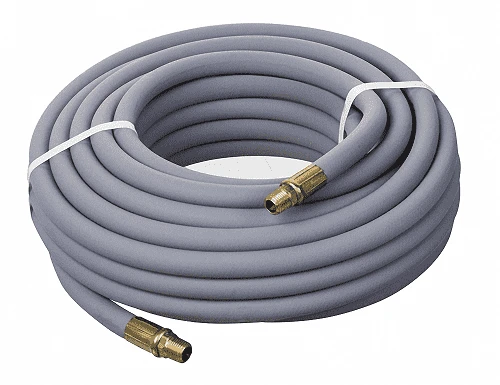

HS1138-06X100 Kuri-Tec By Kuriyama | POLYAIR HS1138 Series | Multi-Purpose Air Hose Assembly | Grey | 3/8″ ID | .625″ OD | 100ft Length

Original price was: $71.59.Current price is: $50.11.

SPECIFICATIONS

Other Features:
Application:	Multi-Purpose Air Hose	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	N/A
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Assemblies are shrink wrapped and labeled Note: Hose assemblies are furnished with the following fittings: 1/4″ ID – 1/4″ X 1/4″M NPT 5/16″ ID – 5/16″ X 1/4″M NPT 3/8″ ID – 3/8″ X 1/4″M NPT 1/2″ ID – 1/2″ X 1/2″M NPT 5/8″ ID – 5/8″ X 3/4″M NPT 3/4″ ID – 3/4″ X 3/4″M NPT 1″ ID – 1″ X 1″M NPT

Part Number	Nominal ID	Nominal OD	Standard Lengths	Approx Weight per Pkg
	(in.)	(in.)	Coil
HS1138-04X100	1/4″	.500″	100 ft.	8.8 lbs.
HS1138-04X25	1/4″	.500″	25 ft.	2.2 lbs.
HS1138-04X50	1/4″	.500″	50 ft.	4.4 lbs.
HS1138-06X100	3/8″	.625″	100 ft.	11.6 lbs.
HS1138-06X25	3/8″	.625″	25 ft.	2.9 lbs.
HS1138-06X50	3/8″	.625″	50 ft.	5.8 lbs.
HS1138D-08X100	1/2″	.813″	100 ft.	18.0 lbs.
HS1138D-08X25	1/2″	.813″	25 ft.	4.5 lbs.
HS1138D-08X50	1/2″	.813″	50 ft.	9.0 lbs.
HS1138E-12X100	3/4″	1.125″	100 ft.	30.0 lbs.
HS1138E-12X25	3/4″	1.125″	25 ft.	7.5 lbs.
HS1138E-12X50	3/4″	1.125″	50 ft.	15.0 lbs.
HS1138F-16X100	1″	1.406″	100 ft.	41.0 lbs.
HS1138F-16X25	1″	1.406″	25 ft.	10.3 lbs.
HS1138F-16X50	1″	1.406″	50 ft.	20.5 lbs.
