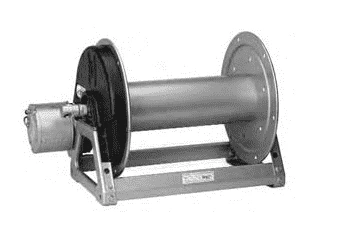

HD-1514-17-18 By Hannay | 1500 Series | Hydraulic Powered Rewind Reel

Original price was: $301.00.Current price is: $98.99.

SKU: AG9ZZ 1476858544164 Categories: Hose Equipment, Tools & Equipment Tags: All-categories, Collection-lvl1_All Equipment, Collection-lvl2_Hose Equipment, Collection-lvl3_Hose Reels, Hannay Hose Reels, Hose-equipment, Hydraulic Powered, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Reels for Hose, Series 1500 - Manual or Power Rewind Reels

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Lawn Care Pest Control Pressure Washing Agriculture Steam Cleaning
Features:
Lightweight compact reels designed for long lengths of hose in power rewind. Direct crank rewind is permanently attached. Chain and sprocket drive powered by a hydraulic motor. Standard inlet 90 deg. ball bearing swivel joint 1/2″ female NPT threads. Standard outlet 1/2″ female NPT threads. Pressures to 3000 psi (207 bar) Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C). NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.

Model Number	Hose Capacity of Reel (Ft.)					Approx. Weight (Lbs.)	Reel Dimensions (In.)
	I.D. (in)	1/4″	3/8″	1/2″	5/8″
	O.D. (in)	5/8″	3/4″	7/8″	1″		A	B	E Crank	E Power	F Crank	F Power	X
HD-1514-17-18		175′ length	125′ length	75′ length	50′ length	42 lbs.	11″	6″	16.5″	19″	18.5″	16.5″	9.5″
HD-1520-17-18		350′ length	275′ length	175′ length	125′ length	44 lbs.	17″	12″	16.5″	19″	24.5″	22.5″	15.5″
HD-1526-17-18		500′ length	400′ length	300′ length	200′ length	46 lbs.	23″	18″	16.5″	19″	30.5″	28.5″	21.5″
HD-1530-17-18		N/A	500′ length	375′ length	275′ length	48 lbs.	27″	22″	16.5″	19″	34.5″	32.5″	25.5″
HD-1536-17-18		N/A	N/A	475′ length	350′ length	50 lbs.	33″	28″	16.5″	19″	40.5″	38.5″	31.5″
