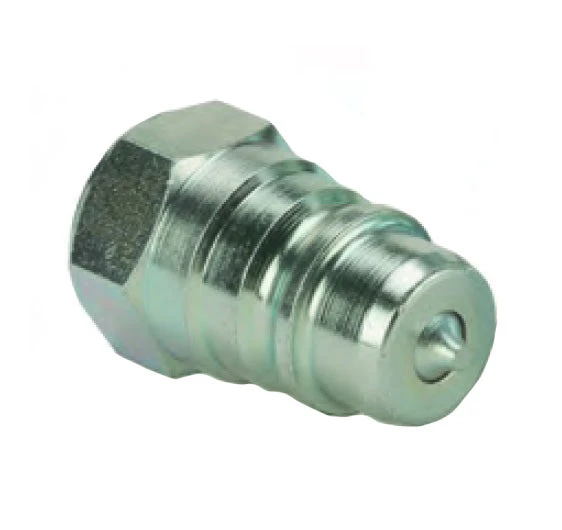

HA0503200 Hansen® By Danfoss | Quick Disconnect Coupling | H5000 Series | 1/2″ Female BSPP X 1/2″ Body Size | Plug | NBR Seal | Steel
Original price was: $20.08.$14.06Current price is: $14.06.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Product Features: |
|
|---|---|
| Applications & Markets: |
|
| European Pressure Equipment Directive: |
|
| Materials: |
|
| Seal Elastomer Data* | |
|---|---|
| Seal Elastomer | Max. Operation Temperature Range |
| NBR (Nitrile) | -20°C +100°C/-4°F +212°F |
| FKM | -20°C +200°C/-4°F +392°F |
| EPDM (Ethylene-Propylene)** | -40°C +150°C/-40°F +302°F |
* For reference only, based on Danfoss recommended temperatures.
** In accordance with NF L 17-241 or NAS 1613 rev. 5
| Body Size | Nominal Flow Diameter | Max. Operating Pressure* Non Hazardous Liquids & Gases in Group 2 | Hazardous Liquids & Gases in Group 1 | Rated Flow** | Fluid Loss | |||
|---|---|---|---|---|---|---|---|---|
| in | mm | bar | psi | bar | psi | lpm | gpm | ml-cc. |
| 1/8″ | 3.8mm | 1,000 bar | 14,500 psi | 1,000 bar | 14,500 psi | 6.1 lpm | 1.61 gpm | 0.4 ml-cc. |
| 1/4″ | 5.7mm | 700 bar | 10,150 psi | 700 bar | 10,150 psi | 11.6 lpm | 3.06 gpm | 1 ml-cc. |
| 3/8″ | 7.6mm | 600 bar | 8,700 psi | 600 bar | 8,700 psi | 16.7 lpm | 4.41 gpm | 2 ml-cc. |
| 1/2″ | 10.3mm | 500 bar | 7,250 psi | 500 bar | 7,250 psi | 25.5 lpm | 6.74 gpm | 2.5 ml-cc. |
| 3/4″ | 14.2mm | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 55 lpm | 14.53 gpm | 5.5 ml-cc. |
| 1″ | 16.5mm | 300 bar | 4,350 psi | 300 bar | 4,350 psi | 87 lpm | 22.98 gpm | 9 ml-cc. |
| 1-1/4″ | 20.5mm | 200 bar | 2,900 psi | 200 bar | 2,900 psi | 140 lpm | 36.98 gpm | 23 ml-cc. |
| 1-1/2″ | 25.8mm | 150 bar | 2,175 psi | 38 bar | 550 psi | 208 lpm | 54.95 gpm | 36 ml-cc. |
| 2″ | 34.7mm | 100 bar | 1,450 psi | 28 bar | 405 psi | 357 lpm | 94.3 gpm | 70 ml-cc. |
* For pulsating pressures when disconnected apply a multiplier of 0.5.
** Indicated values refer to a 1 bar/14.5 psi pressure drop.
 |
 |
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

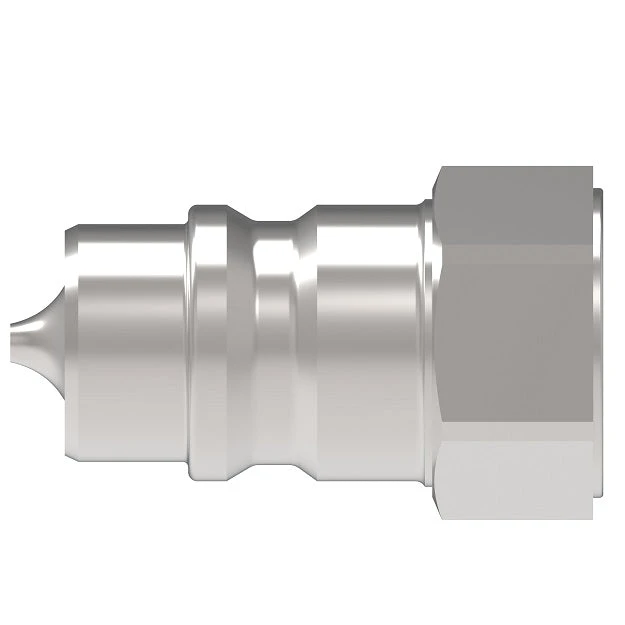

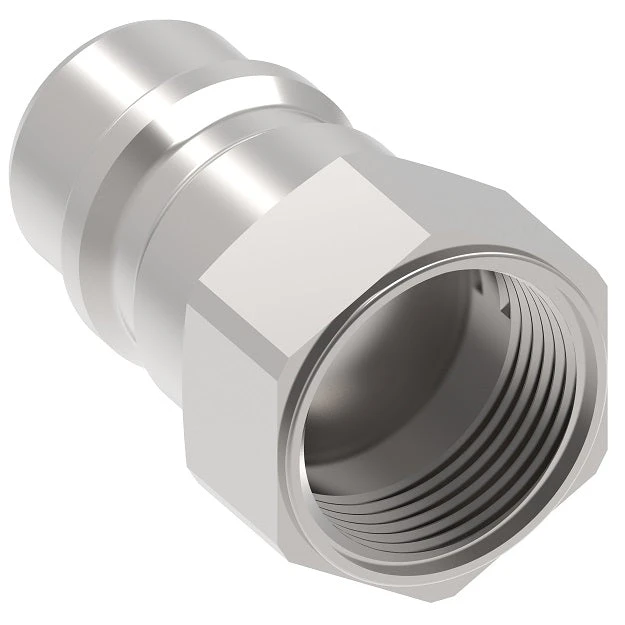

Socket/Female (Figure 1) |
Socket with Sleeve Lock/Female (Figure 2) |

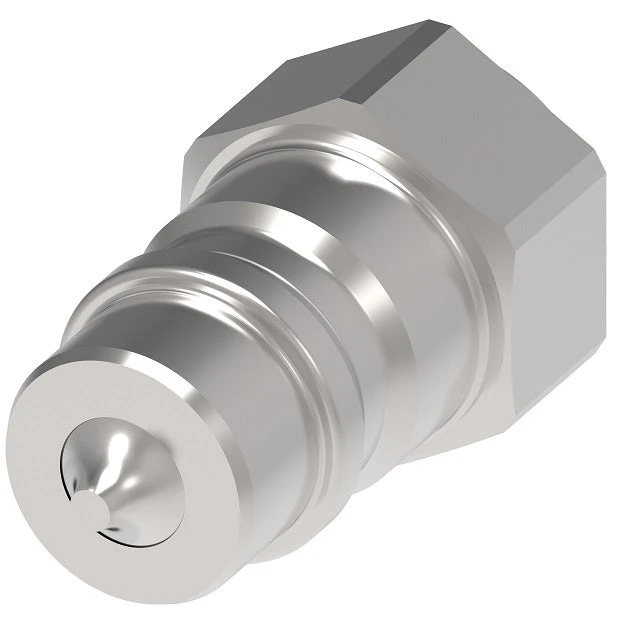

Plug/Male (Figure 3) |
||||||||||
| NBR* Part Number |
FKM Part Number |
EPDM Part Number |
Type | Body Size |
Nominal Flow Diameter |
Thread Size (Female) |
Figure | Dimensions | ||||
| A, D, G | B, E, I | C, F, H | J | Across Flats Hex |
||||||||
| in (mm) |
in (mm) |
in (mm) |
in (mm) |
in (mm) |
||||||||
| HA0500100 | HA05001V0 | HA05001E0 | Socket/Female | 1/8″ | 3.8mm | 1/8-28 Fem. BSPP | 1 | 1.65″ (42mm) |
0.94″ (24mm) |
0.83″ (21mm) |
– | 0.63″ (16mm) |
| HA0500300 | HA05003V0 | HA05003E0 | Socket with Sleeve Lock/Female |
1/8″ | 3.8mm | 1/8-28 Fem. BSPP | 2 | 1.65″ (42mm) |
0.94″ (24mm) |
0.83″ (21mm) |
– | 0.63″ (16mm) |
| HA0500200 | HA05002V0 | HA05002E0 | Plug/Male | 1/8″ | 3.8mm | 1/8-28 Fem. BSPP | 3 | 1.10″ (28mm) |
0.43″ (11mm) |
0.72″ (18.4mm) |
0.39″ (10mm) |
0.63″ (16mm) |
| HA0520100 | HA05201V0 | HA05201E0 | Socket/Female | 1/8″ | 3.8mm | 1/8-27 Fem. NPT | 1 | 1.65″ (42mm) |
0.94″ (24mm) |
0.83″ (21mm) |
– | 0.63″ (16mm) |
| HA0520300 | HA05203V0 | HA05203E0 | Socket with Sleeve Lock/Female |
1/8″ | 3.8mm | 1/8-27 Fem. NPT | 2 | 1.65″ (42mm) |
0.94″ (24mm) |
0.83″ (21mm) |
– | 0.63″ (16mm) |
| HA0520200 | HA05202V0 | HA05202E0 | Plug/Male | 1/8″ | 3.8mm | 1/8-27 Fem. NPT | 3 | 1.10″ (28mm) |
0.43″ (11mm) |
0.72″ (18.4mm) |
0.39″ (10mm) |
0.63″ (16mm) |
| HA0530100 | HA05301V0 | HA05301E0 | Socket/Female | 1/8″ | 3.8mm | M10x100 Fem. Metric | 1 | 1.65″ (42mm) |
0.94″ (24mm) |
0.83″ (21mm) |
– | 0.63″ (16mm) |
| HA0530300 | HA05303V0 | HA05303E0 | Socket with Sleeve Lock/Female |
1/8″ | 3.8mm | M10x100 Fem. Metric | 2 | 1.65″ (42mm) |
0.94″ (24mm) |
0.83″ (21mm) |
– | 0.63″ (16mm) |
| HA0530200 | HA05302V0 | HA05302E0 | Plug/Male | 1/8″ | 3.8mm | M10x100 Fem. Metric | 3 | 1.10″ (28mm) |
0.43″ (11mm) |
0.72″ (18.4mm) |
0.39″ (10mm) |
0.63″ (16mm) |
| HA0501100 | HA05011V0 | HA05011E0 | Socket/Female | 1/4″ | 5.7mm | 1/4-19 Fem. BSPP | 1 | 1.97″ (50mm) |
1.10″ (28mm) |
0.94″ (24mm) |
– | 0.75″ (19mm) |
| HA0501300 | HA05013V0 | HA05013E0 | Socket with Sleeve Lock/Female |
1/4″ | 5.7mm | 1/4-19 Fem. BSPP | 2 | 1.97″ (50mm) |
1.10″ (28mm) |
0.94″ (24mm) |
– | 0.75″ (19mm) |
| HA0501200 | HA05012V0 | HA05012E0 | Plug/Male | 1/4″ | 5.7mm | 1/4-19 Fem. BSPP | 3 | 1.38″ (35mm) |
0.56″ (14.2mm) |
0.86″ (21.8mm) |
0.55″ (14mm) |
0.75″ (19mm) |
| HA0521100 | HA05211V0 | HA05211E0 | Socket/Female | 1/4″ | 5.7mm | 1/4-18 Fem. NPT | 1 | 1.97″ (50mm) |
1.10″ (28mm) |
0.94″ (24mm) |
– | 0.75″ (19mm) |
| HA0521300 | HA05213V0 | HA05213E0 | Socket with Sleeve Lock/Female |
1/4″ | 5.7mm | 1/4-18 Fem. NPT | 2 | 1.97″ (50mm) |
1.10″ (28mm) |
0.94″ (24mm) |
– | 0.75″ (19mm) |
| HA0521200 | HA05212V0 | HA05212E0 | Plug/Male | 1/4″ | 5.7mm | 1/4-18 Fem. NPT | 3 | 1.38″ (35mm) |
0.56″ (14.2mm) |
0.86″ (21.8mm) |
0.55″ (14mm) |
0.75″ (19mm) |
| HA0531100 | HA05311V0 | HA05311E0 | Socket/Female | 1/4″ | 5.7mm | M14x150 Fem. Metric | 1 | 1.97″ (50mm) |
1.10″ (28mm) |
0.94″ (24mm) |
– | 0.75″ (19mm) |
| HA0531300 | HA05313V0 | HA05313E0 | Socket with Sleeve Lock/Female |
1/4″ | 5.7mm | M14x150 Fem. Metric | 2 | 1.97″ (50mm) |
1.10″ (28mm) |
0.94″ (24mm) |
– | 0.75″ (19mm) |
| HA0531200 | HA05312V0 | HA05312E0 | Plug/Male | 1/4″ | 5.7mm | M14x150 Fem. Metric | 3 | 1.38″ (35mm) |
0.56″ (14.2mm) |
0.86″ (21.8mm) |
0.55″ (14mm) |
0.75″ (19mm) |
| HA0502100 | HA05021V0 | HA05021E0 | Socket/Female | 3/8″ | 7.6mm | 3/8-19 Fem. BSPP | 1 | 2.32″ (59mm) |
1.34″ (34mm) |
1.10″ (28mm) |
– | 0.90″ (23mm) |
| HA0502300 | HA05023V0 | HA05023E0 | Socket with Sleeve Lock/Female |
3/8″ | 7.6mm | 3/8-19 Fem. BSPP | 2 | 2.32″ (59mm) |
1.34″ (34mm) |
1.10″ (28mm) |
– | 0.90″ (23mm) |
| HA0502200 | HA05022V0 | HA05022E0 | Plug/Male | 3/8″ | 7.6mm | 3/8-19 Fem. BSPP | 3 | 1.65″ (42mm) |
0.75″ (19mm) |
1.04″ (26.4mm) |
0.70″ (18mm) |
0.90″ (23mm) |
| HA0522100 | HA05221V0 | HA05221E0 | Socket/Female | 3/8″ | 7.6mm | 3/8-18 Fem. NPT | 1 | 2.32″ (59mm) |
1.34″ (34mm) |
1.10″ (28mm) |
– | 0.90″ (23mm) |
| HA0522300 | HA05223V0 | HA05223E0 | Socket with Sleeve Lock/Female |
3/8″ | 7.6mm | 3/8-18 Fem. NPT | 2 | 2.32″ (59mm) |
1.34″ (34mm) |
1.10″ (28mm) |
– | 0.90″ (23mm) |
| HA0522200 | HA05222V0 | HA05222E0 | Plug/Male | 3/8″ | 7.6mm | 3/8-18 Fem. NPT | 3 | 1.65″ (42mm) |
0.75″ (19mm) |
1.04″ (26.4mm) |
0.70″ (18mm) |
0.90″ (23mm) |
| HA0532100 | HA05321V0 | HA05321E0 | Socket/Female | 3/8″ | 7.6mm | M18x150 Fem. Metric | 1 | 2.32″ (59mm) |
1.34″ (34mm) |
1.10″ (28mm) |
– | 0.90″ (23mm) |
| HA0532300 | HA05323V0 | HA05323E0 | Socket with Sleeve Lock/Female |
3/8″ | 7.6mm | M18x150 Fem. Metric | 2 | 2.32″ (59mm) |
1.34″ (34mm) |
1.10″ (28mm) |
– | 0.90″ (23mm) |
| HA0532200 | HA05322V0 | HA05322E0 | Plug/Male | 3/8″ | 7.6mm | M18x150 Fem. Metric | 3 | 1.65″ (42mm) |
0.75″ (19mm) |
1.04″ (26.4mm) |
0.70″ (18mm) |
0.90″ (23mm) |
| HA0503100 | HA05031V0 | HA05031E0 | Socket/Female | 1/2″ | 10.3mm | 1/2-14 Fem. BSPP | 1 | 2.71″ (69mm) |
1.50″ (38mm) |
1.22″ (31mm) |
– | 1.06″ (27mm) |
| HA0503300 | HA05033V0 | HA05033E0 | Socket with Sleeve Lock/Female |
1/2″ | 10.3mm | 1/2-14 Fem. BSPP | 2 | 2.71″ (69mm) |
1.50″ (38mm) |
1.22″ (31mm) |
– | 1.06″ (27mm) |
| HA0503200 | HA05032V0 | HA05032E0 | Plug/Male | 1/2″ | 10.3mm | 1/2-14 Fem. BSPP | 3 | 1.97″ (50mm) |
0.81″ (20.6mm) |
1.22″ (31mm) |
0.94″ (24mm) |
1.06″ (27mm) |
| HA0523100 | HA05231V0 | HA05231E0 | Socket/Female | 1/2″ | 10.3mm | 1/2-4 Fem. NPT | 1 | 2.71″ (69mm) |
1.50″ (38mm) |
1.22″ (31mm) |
– | 1.06″ (27mm) |
| HA0523300 | HA05233V0 | HA05233E0 | Socket with Sleeve Lock/Female |
1/2″ | 10.3mm | 1/2-4 Fem. NPT | 2 | 2.71″ (69mm) |
1.50″ (38mm) |
1.22″ (31mm) |
– | 1.06″ (27mm) |
| HA0523200 | HA05232V0 | HA05232E0 | Plug/Male | 1/2″ | 10.3mm | 1/2-4 Fem. NPT | 3 | 1.97″ 50mm | 0.81″ (20.6mm) |
1.22″ (31mm) |
0.94″ (24mm) |
1.06″ (27mm) |
| HA0533100 | HA05331V0 | HA05331E0 | Socket/Female | 1/2″ | 10.3mm | M22x150 Fem. Metric | 1 | 2.71″ (69mm) |
1.50″ (38mm) |
1.22″ (31mm) |
– | 1.06″ (27mm) |
| HA0533300 | HA05333V0 | HA05333E0 | Socket with Sleeve Lock/Female |
1/2″ | 10.3mm | M22x150 Fem. Metric | 2 | 2.71″ (69mm) |
1.50″ (38mm) |
1.22″ (31mm) |
– | 1.06″ (27mm) |
| HA0533200 | HA05332V0 | HA05332E0 | Plug/Male | 1/2″ | 10.3mm | M22x150 Fem. Metric | 3 | 1.97″ (50mm) |
0.81″ (20.6mm) |
1.22″ (31mm) |
0.94″ (24mm) |
1.06″ (27mm) |
| HA0504100 | HA05041V0 | HA05041E0 | Socket/Female | 3/4″ | 14.2mm | 3/4-14 Fem. BSPP | 1 | 3.50″ (89mm) |
1.89″ (48mm) |
1.57″ (40mm) |
– | 1.38″ (35mm) |
| HA0504300 | HA05043V0 | HA05043E0 | Socket with Sleeve Lock/Female |
3/4″ | 14.2mm | 3/4-14 Fem. BSPP | 2 | 3.50″ (89mm) |
1.89″ (48mm) |
1.57″ (40mm) |
– | 1.38″ (35mm) |
| HA0504200 | HA05042V0 | HA05042E0 | Plug/Male | 3/4″ | 14.2mm | 3/4-14 Fem. BSPP | 3 | 2.48″ (63mm) |
1.10″ (27.9mm) |
1.58″ (40.2mm) |
1.10″ (28mm) |
1.38″ (35mm) |
| HA0524300 | HA05243V0 | HA05243E0 | Socket with Sleeve Lock/Female |
3/4″ | 14.2mm | 3/4-14 Fem. NPT | 2 | 3.50″ (89mm) |
1.89″ (48mm) |
1.57″ (40mm) |
– | 1.38″ (35mm) |
| HA0524200 | HA05242V0 | HA05242E0 | Plug/Male | 3/4″ | 14.2mm | 3/4-14 Fem. NPT | 3 | 2.48″ (63mm) |
1.10″ (27.9mm) |
1.58″ (40.2mm) |
1.10″ (28mm) |
1.38″ (35mm) |
| HA0534100 | HA05341V0 | HA05341E0 | Socket/Female | 3/4″ | 14.2mm | M27x150 Fem. Metric | 1 | 3.50″ (89mm) |
1.89″ (48mm) |
1.57″ (40mm) |
– | 1.38″ (35mm) |
| HA0534300 | HA05343V0 | HA05343E0 | Socket with Sleeve Lock/Female |
3/4″ | 14.2mm | M27x150 Fem. Metric | 2 | 3.50″ (89mm) |
1.89″ (48mm) |
1.57″ (40mm) |
– | 1.38″ (35mm) |
| HA0534200 | HA05342V0 | HA05342E0 | Plug/Male | 3/4″ | 14.2mm | M27x150 Fem. Metric | 3 | 2.48″ (63mm) |
1.10″ (27.9mm) |
1.58″ (40.2mm) |
1.10″ (28mm) |
1.38″ (35mm) |
| HA0505100 | HA05051V0 | HA05051E0 | Socket/Female | 1″ | 16.5mm | 1-11 Fem. BSPP | 1 | 3.89″ (99mm) |
2.05″ (52mm) |
1.77″ (45mm) |
– | 1.61″ (41mm) |
| HA0505300 | HA05053V0 | HA05053E0 | Socket with Sleeve Lock/Female |
1″ | 16.5mm | 1-11 Fem. BSPP | 2 | 3.89″ (99mm) |
2.05″ (52mm) |
1.77″ (45mm) |
– | 1.61″ (41mm) |
| HA0505200 | HA05052V0 | HA05052E0 | Plug/Male | 1″ | 16.5mm | 1-11 Fem. BSPP | 3 | 2.79″ (71mm) |
1.27″ (32.4mm) |
1.87″ (47.5mm) |
1.22″ (31mm) |
1.61″ (41mm) |
| HA0525100 | HA05251V0 | HA05251E0 | Socket/Female | 1″ | 16.5mm | 1-11-1/2 Fem. NPT | 1 | 3.89″ (99mm) |
2.05″ (52mm) |
1.77″ (45mm) |
– | 1.61″ (41mm) |
| HA0525300 | HA05253V0 | HA05253E0 | Socket with Sleeve Lock/Female |
1″ | 16.5mm | 1-11-1/2 Fem. NPT | 2 | 3.89″ (99mm) |
2.05″ (52mm) |
1.77″ (45mm) |
– | 1.61″ (41mm) |
| HA0525200 | HA05252V0 | HA05252E0 | Plug/Male | 1″ | 16.5mm | 1-11-1/2 Fem. NPT | 3 | 2.79″ (71mm) |
1.27″ (32.4mm) |
1.87″ (47.5mm) |
1.22″ (31mm) |
1.61″ (41mm) |
| – | HA05061V0 | HA05061E0 | Socket/Female | 1-1/4″ | 20.5mm | 1-1/4-11 Fem. BSPP | 1 | 5.20″ (132mm) |
2.95″ (75mm) |
2.44″ (62mm) |
– | 2.16″ (55mm) |
| – | HA05063V0 | HA05063E0 | Socket with Sleeve Lock/Female |
1-1/4″ | 20.5mm | 1-1/4-11 Fem. BSPP | 2 | 5.20″ (132mm) |
2.95″ (75mm) |
2.44″ (62mm) |
– | 2.16″ (55mm) |
| – | HA05062V0 | HA05062E0 | Plug/Male | 1-1/4″ | 20.5mm | 1-1/4-11 Fem. BSPP | 3 | 3.82″ (97mm) |
1.85″ (46.9mm) |
2.49″ (63.2mm) |
1.89″ (48mm) |
2.16″ (55mm) |
| – | HA05071V0 | HA05071E0 | Socket/Female | 1-1/2″ | 25.8mm | 1-1/2-11 Fem. BSPP | 1 | 5.90″ (150mm) |
3.35″ (85mm) |
2.95″ (75mm) |
– | 2.56″ (65mm) |
| – | HA05073V0 | HA05073E0 | Socket with Sleeve Lock/Female |
1-1/2″ | 25.8mm | 1-1/2-11 Fem. BSPP | 2 | 5.90″ (150mm) |
3.35″ (85mm) |
2.95″ (75mm) |
– | 2.56″ (65mm) |
| – | HA05072V0 | HA05072E0 | Plug/Male | 1-1/2″ | 25.8mm | 1-1/2-11 Fem. BSPP | 3 | 4.29″ (109mm) |
2.20″ (56mm) |
2.94″ (74.7mm) |
2.04″ (52mm) |
2.56″ (65mm) |
| – | HA05091V0 | HA05091E0 | Socket/Female | 2″ | 34.7mm | 2-11 Fem. BSPP | 1 | 6.69″ (170mm) |
3.82″ (97mm) |
3.35″ (85mm) |
– | 2.95″ (75mm) |
| – | HA05093V0 | HA05093E0 | Socket with Sleeve Lock/Female |
2″ | 34.7mm | 2-11 Fem. BSPP | 2 | 6.69″ (170mm) |
3.82″ (97mm) |
3.35″ (85mm) |
– | 2.95″ (75mm) |
| – | HA05092V0 | HA05092E0 | Plug/Male | 2″ | 34.7mm | 2-11 Fem. BSPP | 3 | 4.76″ (121mm) |
2.56″ (65mm) |
3.30″ (84mm) |
1.97″ (50mm) |
2.95″ (75mm) |
* Body sizes 1-1/4, 1-1/2 and 2 are supplied with FKM seals as a standard.
To obtain connected length of coupling add dimensions A (Fig. 1) and J (Fig. 3) together.
Be the first to review “HA0503200 Hansen® By Danfoss | Quick Disconnect Coupling | H5000 Series | 1/2″ Female BSPP X 1/2″ Body Size | Plug | NBR Seal | Steel”
Related products
Sale!
Original price was: $30.00.$21.00Current price is: $21.00.
Sale!
Original price was: $22.48.$15.74Current price is: $15.74.
Sale!
Original price was: $34.60.$24.22Current price is: $24.22.
Sale!
Hose Assemblies
Original price was: $162.91.$96.99Current price is: $96.99.
Sale!
Original price was: $50.15.$35.11Current price is: $35.11.
Sale!
Original price was: $318.31.$98.99Current price is: $98.99.
Sale!
Original price was: $64.88.$45.42Current price is: $45.42.
Sale!
Hose Assemblies
Original price was: $112.67.$78.87Current price is: $78.87.
Reviews
There are no reviews yet.
