H7050D By ZSi-Foster | Double Weld Mount Beta Clamp | Heavy Series | For 3″ Tube | Polypropylene/Steel

Original price was: $140.46.Current price is: $95.99.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
Shock absorption, vibration dampening, and noise reducing properties. Securely and easily anchor clamps to machinery and steel work with weldable plates. Easily cleaned. Ribs in clamp bore absorb shock and vibration in direction of tube axis. Upper and lower clamp halves are identical. Standard – Polypropylene (Green Color): -22°F to 194°F ( -30°C to +90°C)
Materials:
Components: Steel Cushion: Polypropylene
Installation:
For more information see: Beta Clamps Technical Info & Installation Guide PDF.

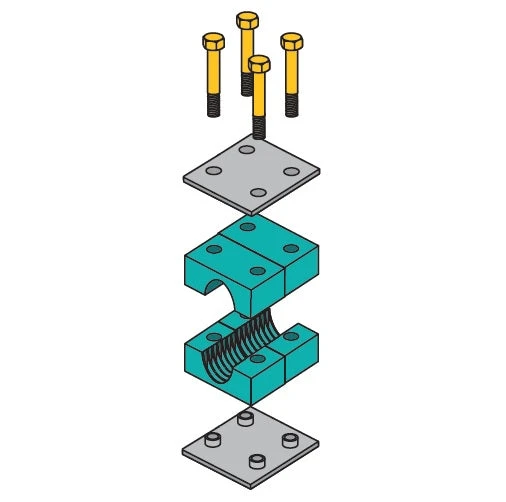

Assembly Includes:
	Quantity	Description
	1 Each	Double Weld Plate
	1 Each	Double Cover Plate
	4 Each	Hex Bolts
	2 set	Cushions

Clamp for:
Tube Part Number	Pipe Part Number	Size	Hex Bolt
H3004D	H3009D	1/4″	3/8-16 x 1-3/4
–	H3011D	3/8″	3/8-16 x 1-3/4
H3008D	H4014D	1/2″	Tube: 3/8-16 x 1-3/4 Pipe: 3/8-16 x 2-1/4
H3010D	–	5/8″	3/8-16 x 1-3/4
H4016D	H5021D	1″	Tube: 3/8-16 x 2-1/4 Pipe: 3/8-16 x 2-3/4
H5020D	H5027D	1-1/4″	3/8-16 x 2-3/4
H5024D	H6030D	1-1/2″	Tube: 3/8-16 x 2-3/4 Pipe: 1/2-13 x 4
H6028D	–	1-3/4″	1/2-13 x 4
H6032D	H6038D	2″	1/2-13 x 4
H6034D	–	2-1/4″	1/2-13 x 4
H6040D	H7046D	2-1/2″	Tube: 1/2-13 x 4 Pipe: 5/8-11 x 5-1/4
H7044D	–	2-3/4″	5/8-11 x 5-1/4
H7050D	H7056D	3″	5/8-11 x 5-1/4
H7057D	–	3-1/2″	5/8-11 x 5-1/4
