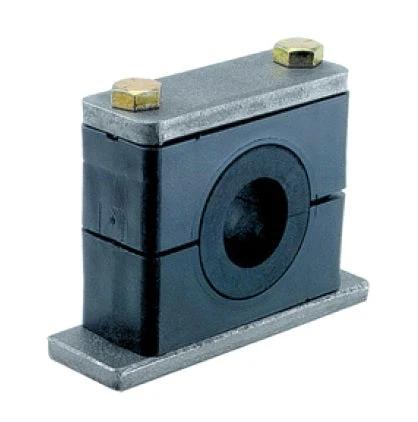

H4010RIS By ZSi-Foster | Weld Mount Beta Clamp | Heavy Series With Rubber Insert | For 5/8″ Tube | Polypropylene/Steel

Original price was: $12.00.Current price is: $8.40.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
Shock absorption, vibration dampening, and noise reducing properties. Securely and easily anchor clamps to machinery and steel work with weldable plates. Easily cleaned. Ribs in clamp bore absorb shock and vibration in direction of tube axis. Upper and lower clamp halves are identical. Increase size range over standard series
Materials:
Steel
Installation:
For more information see: Beta Clamps Technical Info & Installation Guide PDF.

Assembly Includes:
	Quantity	Description
	1 Each	Weld Plate
	1 Each	Cover Plate
	2 Each	Hex Bolts
	1 Set	Cushions
	1 Each	Rubber Insert

Clamp for:
Tube Part Number	Pipe Part Number	Size	Hex Bolt
–	H4011RIS	3/8″	3/8-16 x 2-1/4
H4008RIS	H5014RIS	1/2″	Tube: 3/8-16 x 2-1/4 Pipe: 3/8-16 x 2-3/4
H4010RIS	–	5/8″	3/8-16 x 2-1/4
H4012RIS	H5017RIS	3/4″	Tube: 3/8-16 x 2-1/4 Pipe: 3/8-16 x 2-3/4
H5015RIS	–	7/8″	3/8-16 x 2-3/4
H5016RIS	H6021RIS	1″	Tube: 3/8-16 x 2-3/4 Pipe: 1/2-13 x 4
H5020RIS	H6027RIS	1-1/4″	Tube: 3/8-16 x 2-3/4 Pipe: 1/2-13 x 4
H6024RIS	H6030RIS	1-1/2″	1/2-13 x 4
H6032RIS	H7038RIS	2″	Tube: 1/2-13 x 4 Pipe: 5/8-11 x 5-1/2
H6034RIS	–	2-1/8″	1/2-13 x 4
–	H7046RIS	2-1/2″	5/8-11 x 5-1/2
H7050RIS	–	3″	5/8-11 x 5-1/2
