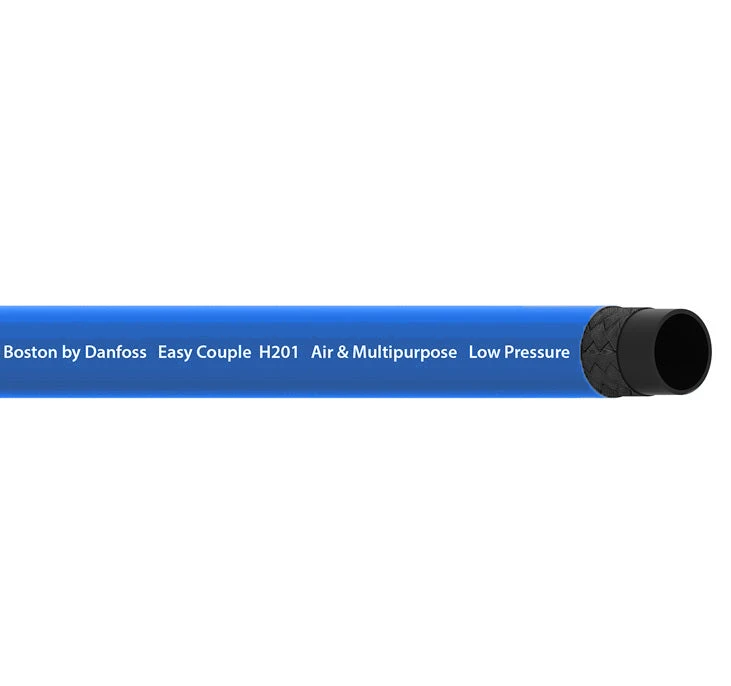

H20110BU Boston By Danfoss | H201 Series | Low Pressure SOCKETLESS™ Hose | 0.63″ ID | Blue | 50ft Length
Original price was: $254.50.$95.99Current price is: $95.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Fuel, lubricating oils, air and water. In-plant robotic manufacturing. Air lines and air tools. | Tube: | Nitrile |
| Other Ratings: | Red, green, and black are MSHA approved. | Cover: | Neoprene (black hose) Vinyl Nitrile (colored hose) |
| Reinforcement: | Single Textile Braid | Temperature Range: | -40°F to +260°F (-40°C to +127°C) |
| Air & Water Applications Temperature Range: | -40°F to +212°F (-40°C to +100°C) | Oil Applications Temperature Range: | – 40°F to +260°F (-40°C to +127°C) |
| Part Number Black | Part Number Blue | Part Number Green | Part Number Gray | Part Number Red | Part Number Yellow | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | Length | Vacuum | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | ft | in/Hg | ||||||
| H20104BK | H20104BU | H20104GN | H20104GY | H20104RD | H20104YW | 6 | 6,4mm | 0.25″ | 12,7mm | 0.50″ | 21,0 bar | 300 psi | 84,0 bar | 1200 psi | 76,2mm | 3.00″ | 0,13 kg/m | 0.09 lbs/ft | 250 ft | 28 in/Hg |
| H20106BK | H20106BU | H20106GN | H20106GY | H20106RD | H20106YW | 10 | 9,5mm | 0.38″ | 16,7mm | 0.65″ | 21,0 bar | 300 psi | 84,0 bar | 1200 psi | 76,2mm | 3.00″ | 0,19 kg/m | 0.13 lbs/ft | 50 ft | 28 in/Hg |
| H20108BK | H20108BU | H20108GN | H20108GY | H20108RD | H20108YW | 13 | 12,7mm | 0.50″ | 19,1mm | 0.75″ | 21,0 bar | 300 psi | 84,0 bar | 1200 psi | 127,0mm | 5.00″ | 0,22 kg/m | 0.15 lbs/ft | 50 ft | 28 in/Hg |
| H20110BK | H20110BU | H20110GN | H20110GY | H20110RD | H20110YW | 16 | 15,9mm | 0.63″ | 23,8mm | 0.93″ | 21,0 bar | 300 psi | 84,0 bar | 1200 psi | 152,4mm | 6.00″ | 0,34 kg/m | 0.23 lbs/ft | 50 ft | 28 in/Hg |
| H20112BK | H20112BU | H20112GN | H20112GY | H20112RD | H20112YW | 19 | 19,1mm | 0.75″ | 26,2mm | 1.03″ | 21,0 bar | 300 psi | 84,0 bar | 1200 psi | 152,4mm | 6.00″ | 0,39 kg/m | 0.26 lbs/ft | 50 ft | 28 in/Hg |
| H20116BK | H20116BU | – | – | – | – | 25 | 25,4mm | 1.00″ | 35,0mm | 1.39″ | 14,0 bar | 200 psi | 55,0 bar | 800 psi | 254,0mm | 10.00″ | 0,57 kg/m | 0.38 lbs/ft | 50 ft | 18 in/Hg |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
