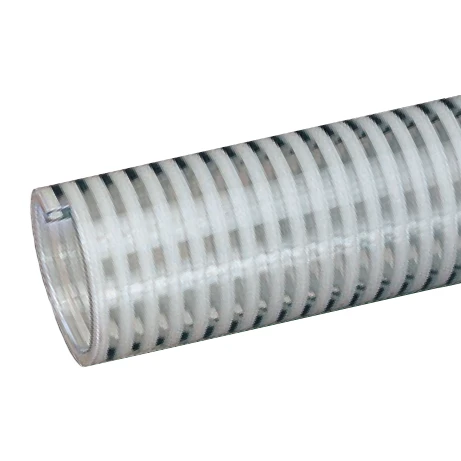

H075X100 Tigerflex By Kuriyama | H Series | Standard Duty Suction Hose | 3/4" ID | PVC | 100ft Length

H075X100 Tigerflex By Kuriyama | H Series | Standard Duty Suction Hose | 3/4″ ID | PVC | 100ft Length

Original price was: $118.67.Current price is: $83.07.

SKU: AG9ZZ 1487402958884 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Agricultural liquid fertilizer, Air seeder lines, Drain lines,
Pumps, rental and construction dewatering
Trash, Rock dusting, Water suction – standard duty, Irrigation lines		 SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Transparent Construction (H & K Series only) – “See-the flow.”
    Allows for visual confirmation of material flow.
  • Smooth Outer Cover (Sizes 3/4″ – 5″) – Provides increased
    pressure rating and smooth surface for banding.
  • Convoluted Outer Cover (Sizes 6″ & 8″) – Provides
    increased hose flexibility.
Part Number ID ID OD OD Working Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Approx. Bending
Radius		 Standard Length Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
H075X100 3/4″ 19.0mm 1.01″ 25.6mm 110 PSI 70 PSI 28 in.Hg 26 in.Hg 3″ 100ft 0.19 lbs
H100X100 1″ 25.4mm 1.26″ 32.0mm 85 PSI 60 PSI 28 in. Hg 26 in .Hg 3″ 100ft 0.26 lbs
H125X100 1-1/4″ 31.7mm 1.56″ 39.6mm 85 PSI 60 PSI 28 in. Hg 24 in .Hg 4″ 100ft 0.35 lbs
H150X100 1-1/2″ 38.1mm 1.83″ 46.5mm 70 PSI 50 PSI 28 in. Hg 24 in. Hg 5″ 100ft 0.48 lbs
H200X100 2″ 50.8mm 2.32″ 59.0mm 65 PSI 45 PSI 28 in. Hg 24 in. Hg 7″ 100ft 0.66 lbs
H250X100 2-1/2″ 63.5mm 2.87″ 73.0mm 65 PSI 45 PSI 28 in. Hg 24 in. Hg 8″ 100ft 0.87 lbs
H300X100 3″ 76.2mm 3.43″ 87.0mm 60 PSI 40 PSI 28 in. Hg 22 in. Hg 10″ 100ft 1.24 lbs
H400X100 4″ 101.6mm 4.50″ 114.7mm 50 PSI 35 PSI 28 in. Hg 22 in. Hg 15″ 100ft 1.85 lbs
H500X100 5″ 127.0mm 5.58″ 141.3mm 45 PSI 30 PSI 28 in. Hg 24 in. Hg 22″ 100ft 2.42 lbs
H600X100 6″ 152.4mm 6.75″ 171.4mm 40 PSI 25 PSI 28 in. Hg 20 in. Hg 30″ 100ft 3.39 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
