GW25-20x20 By Couplamatic | GW Series Coupling | 1-1/4" Hose ID X 1-5/8x12 Thread JIC 37° Female Swivel | 45° Elbow | Trivalent Zinc Plating

GW25-20×20 By Couplamatic | GW Series Coupling | 1-1/4″ Hose ID X 1-5/8×12 Thread JIC 37° Female Swivel | 45° Elbow | Trivalent Zinc Plating

Original price was: $59.61.Current price is: $41.73.

SKU: AG9ZZ 7356031402149 Category: Fittings & Clamps Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Collection-lvl3_4 and 6 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, Female-swivel, GW Series 100R12 No-Skive Couplings, GW Series Couplings, GW Series JIC 37° - 45° Female Swivel, GW Series JIC Fittings, LegacyProductTypeReplacement_Female Swivel, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_45-deg-elbow, Thread-type_jic

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
NO SKIVE REQUIRED. The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

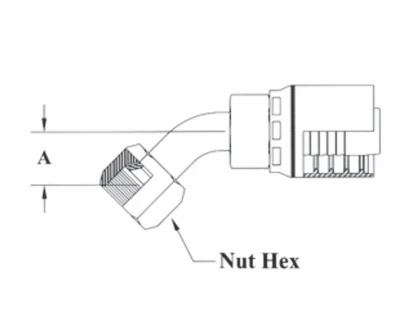

Part Number	Hose ID	Tube Size	Thread Size	A-Drop Inches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Thread Size	A-Drop Inches	Nut Hex	Weatherhead 430U
GW25-8×8	1/2″	1/2″	3/4×16	0.71″	7/8″	43008U-688
GW25-8×10	1/2″	5/8″	7/8×14	0.84″	1″	43008U-690
GW25-12×12	3/4″	3/4″	1-1/16×12	1.12″	1-1/4″	43012U-692
GW25-12×16	3/4″	1″	1-5/16×12	1.15″	1-1/2″	–
GW25-16×16	1″	1″	1-5/16×12	1.15″	1-1/2″	43016U-696
GW25-20×20	1-1/4″	1-1/4″	1-5/8×12	1.69″	2″	–
GW25-24×24	1-1/2″	1-1/2″	1-7/8×12	1.70″	2-1/4″	–

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
