GW01-12x16 By Couplamatic | GW Series Coupling | 3/4" Hose ID X 1-11-1/2 Thread NPTF Male Solid | Straight | Trivalent Zinc Plating

GW01-12×16 By Couplamatic | GW Series Coupling | 3/4″ Hose ID X 1-11-1/2 Thread NPTF Male Solid | Straight | Trivalent Zinc Plating

Original price was: $13.46.Current price is: $9.42.

SKU: AG9ZZ 7356030058661 Categories: , Tags: , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the
    market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

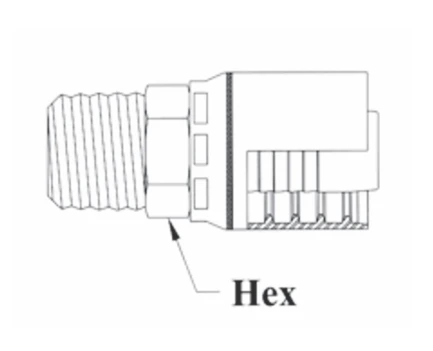

Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Weatherhead 430U
GW01-8×8 1/2″ 1/2″ 1/2-14 7/8″ 43008U-108
GW01-8×12 1/2″ 3/4″ 3/4-14 1-1/8″ 43008U-112
GW01-12×12 3/4″ 3/4″ 3/4-14 1-1/8″ 43012U-112
GW01-12×16 3/4 1″ 1-11-1/2 1-3/8″ 43012U-116
GW01-16×12 1″ 3/4″ 3/4-14 1-3/8″ 43016U-112
GW01-16×16 1″ 1″ 1-11-1/2 1-3/8″ 43016U-116
GW01-20×20 1-1/4″ 1-1/4″ 1-1/4-11-1/2 1-11/16″ 43020U-120
GW01-24×24 1-1/2″ 1-1/2″ 1-1/2-11-1/2 2″ 43024U-124
GW01-32×32 2″ 2″ 2-11-1/2 2-1/2″ 43032U-132

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
