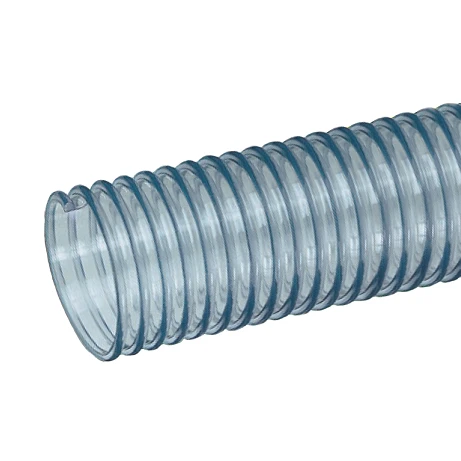

GTF200X100 Tigerflex By Kuriyama | GTF Series | Food Grade Ducting/Material Handling Hose | 2″ ID | PVC | 100ft Length

Original price was: $390.67.Current price is: $97.99.

SKU: AG9ZZ 1487387721764 Category: Bulk Hose & Covers Tags: All-categories, Collection-lvl1_All Hose, Collection-lvl2_Flexible Ducting, Collection-lvl3_Fume Ducting, Collection-lvl3_Material Ducting, Filter-All-Brand_Tigerflex, Filter-All-Series_GTF Series, Filter-All-SpecialProperties_Outer Helix Protection, Filter-All-Specifications and Approvals_Applicable 3-A Sanitary Standards, Filter-All-Specifications and Approvals_Applicable FDA Requirements, Filter-All-Specifications and Approvals_Applicable USDA Standards, Filter-All-Specifications and Approvals_RoHS Compliant, Filter-AllHose-Color_Clear/Semi-Clear, Filter-AllHose-ID_2", Filter-AllHose-TubingConstruction_PVC, Filter-IndustrialHoseTubingJoints-OD_2.39", Flexible-ducting, Food Grade, GTF Series Food Grade PVC Ducting-Material Handling Hose, Industrial Hose Fittings, Kuriyama Tigerflex Hose, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Tigerflex Thermoplastic Industrial Hoses, Unit-ft-100

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Other Features:
Application:	Ducting, ventilation and fume removal, Food grade blower and ducting systems, Material handling – light duty, Pharmaceutical product transfer	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix.	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Food Grade Materials – Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) (GTF only) for use in meat and poultry plants. Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow. Easy Slide Helix – Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
GTF200X100	2″	50.8mm	2.39″	60.8mm	15 PSI	6 PSI	21 in. Hg	12 in. Hg	2″	100ft	0.30 lbs
GTF250X50	2-1/2″	63.5mm	2.89″	73.4mm	10 PSI	5 PSI	19in. Hg	10in. Hg	2″	50ft	0.39 lbs
GTF250X100	2-1/2″	63.5mm	2.89″	73.4mm	10 PSI	5 PSI	19in. Hg	10in. Hg	2″	100ft	0.39 lbs
GTF300X50	3″	76.2mm	3.46″	87.9mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	3″	50ft	0.50 lbs
GTF300X100	3″	76.2mm	3.46″	87.9mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	3″	100ft	0.50 lbs
GTF400X100	4″	101.6mm	4.50″	114.3mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3″	100ft	0.77 lbs
GTF400X50	4″	101.6mm	4.50″	114.3mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3″	50ft	0.77 lbs
GTF600X50	6″	152.4mm	6.54″	166.1mm	6 PSI	3 PSI	7 in. Hg	5 in. Hg	6″	50ft	1.08 lbs
GTF800X50	8″	203.2mm	8.59″	218.2mm	4 PSI	2 PSI	5 in. Hg	3 in. Hg	8″	50ft	1.74 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
