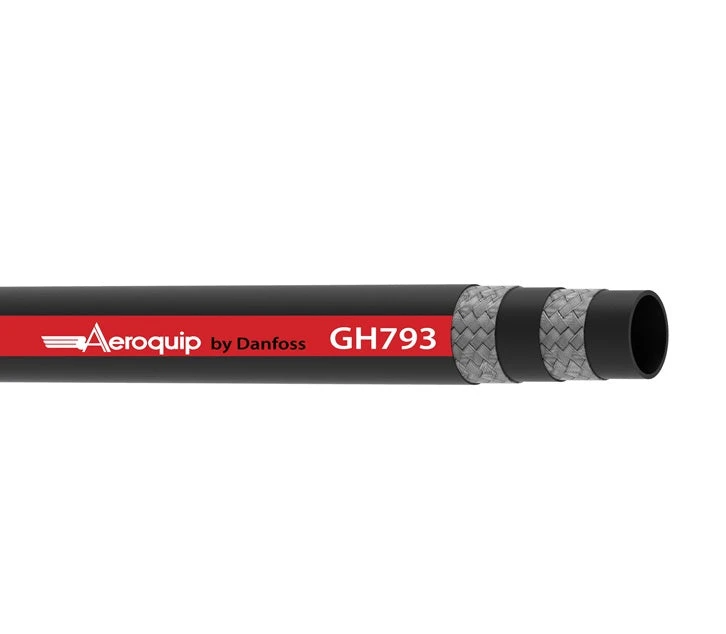

GH793-10 Aeroquip By Danfoss | MatchMate® Global Double Wire Braid Hydraulic Hose | SAE 100R2 | 0.63″ ID
Original price was: $12.22.$8.55Current price is: $8.55.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Hydraulic system service with petroleum and water-based fluids, for general industrial service. | SAE Rating: | Meets: SAE 100R2 Type S, EN 853 (Type 2SN), DIN 2022, Teil 4 (Type 2SN) |
| Other Ratings: | N/A | Tube: | Special Low Temperature Synthetic Rubber |
| Reinforcement: | Double Wire Braid | Cover: | DURA-TUFF™ Synthetic Rubber |
| Temperature Range: | -40°F to +260°F (-40°C to +127°C) | ||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH793-4 | 6 | 6,4mm | 0.25″ | 15,2mm | 0.60″ | 448,0 bar 350,0 bar | 6500 psi* 5000 psi | 1792,0 bar 1400,0 bar | 26000 psi* 20000 psi | 101,6mm | 4.00″ | 0,39 kg/m | 0.26 lbs/ft |
| GH793-6 | 10 | 9,7mm | 0.38″ | 19,1mm | 0.75″ | 400,0 bar 280,0 bar | 5800 psi* 4000 psi | 1600,0 bar 1120,0 bar | 23200 psi* 16000 psi | 127,0mm | 5.00″ | 0,57 kg/m | 0.38 lbs/ft |
| GH793-8 | 12 | 12,7mm | 0.50″ | 22,1mm | 0.87″ | 345,0 bar 245,0 bar | 5000 psi* 3500 psi | 1380,0 bar 980,0 bar | 20000 psi* 14000 psi | 177,8mm | 7.00″ | 0,68 kg/m | 0.46 lbs/ft |
| GH793-10 | 16 | 16,0mm | 0.63″ | 24,9mm | 0.98″ | 276,0 bar 192,0 bar | 4000 psi* 2750 psi | 1104,0 bar 770,0 bar | 16000 psi* 11000 psi | 203,2mm | 8.00″ | 0,80 kg/m | 0.54 lbs/ft |
| GH793-12 | 19 | 19,1mm | 0.75″ | 29,5mm | 1.16″ | 241,0 bar 157,0 bar | 3500 psi* 2250 psi | 964,0 bar 630,0 bar | 14000 psi* 9000 psi | 241,3mm | 9.50″ | 0,98 kg/m | 0.66 lbs/ft |
| GH793-16 | 25 | 25,4mm | 1.00″ | 38,1mm | 1.50″ | 207,0 bar 140,0 bar | 3000 psi* 2000 psi | 828,0 bar 560,0 bar | 12000 psi* 8000 psi | 304,8mm | 12.00″ | 1,50 kg/m | 1.01 lbs/ft |
| GH793-20 | 31 | 31,8mm | 1.25″ | 48,8mm | 1.92″ | 172,0 bar | 2500 psi | 688,0 bar | 10000 psi | 419,1mm | 16.50″ | 2,29 kg/m | 1.54 lbs/ft |
| GH793-24 | 38 | 38,1mm | 1.50″ | 54,6mm | 2.15″ | 138,0 bar | 2000 psi | 552,0 bar | 8000 psi | 508,0mm | 20.00″ | 2,50 kg/m | 1.68 lbs/ft |
| GH793-32 | 51 | 50,8mm | 2.00″ | 63,8mm | 2.51″ | 110,0 bar | 1600 psi | 440,0 bar | 6400 psi | 635,0mm | 25.00″ | 3,30 kg/m | 2.22 lbs/ft |
* Improved pressure performance when used with global crimp fittings.
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
