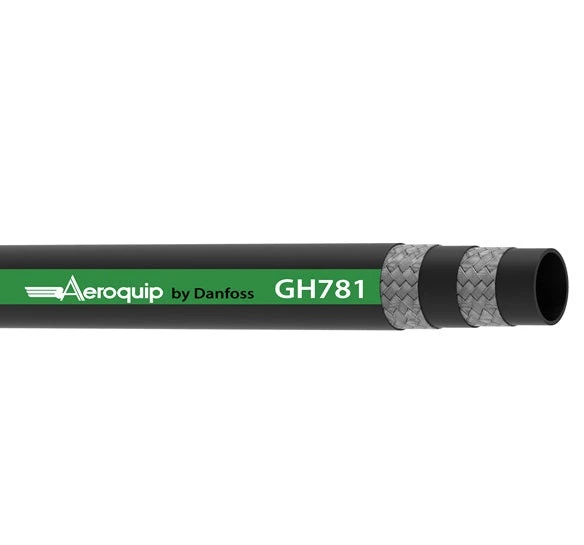

GH781-20 Aeroquip By Danfoss | MatchMate® Global Premium Double Wire Braid Hydraulic Hose | SAE 100R16 | 1.25″ ID
Original price was: $33.18.$23.23Current price is: $23.23.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Low and medium pressure hydraulic systems, petroleum and waterbased fluids, construction equipment, and agriculture equipment. | SAE Rating: | Exceeds: SAE 100R16 Type S, EN 857 2SC, ISO 18752, ISO 11237-1 Type 2SC performance |
| Other Ratings: | MSHA Accepted, ABS Accepted, DNV Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | Double Wire Braid | Cover: | DURA-TUFF™ Synthetic Rubber |
| Temperature Range: | -50°F to +260°F (-46°C to +126°C) | ||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH781-4 | 6 | 6,4mm | 0.25″ | 13,9mm | 0.55″ | 448 bar | 6,500 psi | 1792 bar | 26000 psi | 50,0mm | 1.96″ | 0,33 kg/m | 0.22 lbs/ft |
| GH781-6 | 10 | 9,5mm | 0.38″ | 17,4mm | 0.69″ | 400 bar | 5,800 psi | 1600 bar | 23200 psi | 65,0mm | 2.55″ | 0,43 kg/m | 0.29 lbs/ft |
| GH781-8 | 12 | 12,7mm | 0.50″ | 20,9mm | 0.82″ | 345 bar | 5,000 psi | 1380 bar | 20000 psi | 90,0mm | 3.54″ | 0,58 kg/m | 0.39 lbs/ft |
| GH781-10 | 16 | 15,9mm | 0.62″ | 24,0mm | 0.94″ | 276 bar | 4,000 psi | 1104 bar | 16000 psi | 100,0mm | 3.94″ | 0,65 kg/m | 0.44 lbs/ft |
| GH781-12 | 19 | 19,0mm | 0.75″ | 27,9mm | 1.10″ | 241 bar | 3,500 psi | 964 bar | 14000 psi | 120,0mm | 4.72″ | 0,79 kg/m | 0.53 lbs/ft |
| GH781-16 | 25 | 25,4mm | 1.00″ | 35,9mm | 1.41″ | 207 bar | 3,000 psi | 828 bar | 12000 psi | 150,0mm | 5.90″ | 1,07 kg/m | 0.72 lbs/ft |
| GH781-20 | 31 | 31,8mm | 1.25″ | 43,4mm | 1.71″ | 172 bar | 2,500 psi | 688 bar | 10000 psi | 210,0mm | 8.26″ | 1,62 kg/m | 1.09 lbs/ft |
| GH781-24 | 38 | 38,1mm | 1.50″ | 51,5mm | 2.03″ | 138 bar | 2,000 psi | 552 bar | 8000 psi | 250,0mm | 9.84″ | 2,08 kg/m | 1.40 lbs/ft |
| GH781-32 | 51 | 50,8mm | 2.00″ | 63,9mm | 2.52″ | 110 bar | 1,600 psi | 440 bar | 6400 psi | 315,0mm | 12.40″ | 2,82 kg/m | 1.90 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
