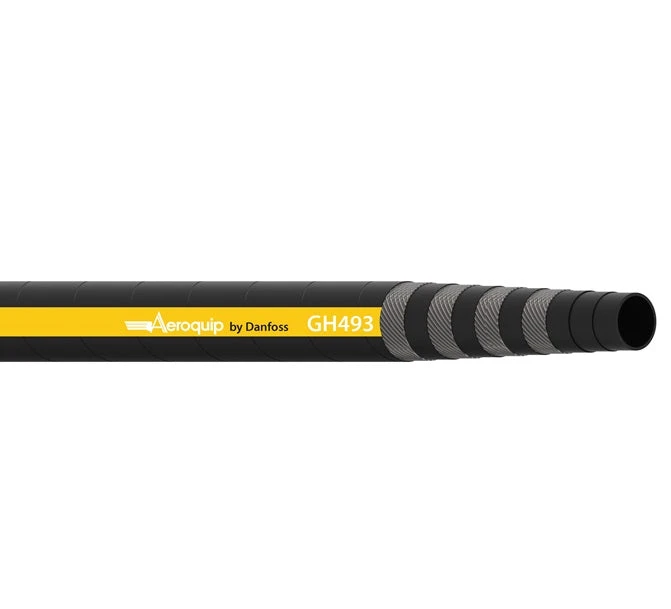

GH493-8 Aeroquip By Danfoss | MatchMate® Global 1/2 SAE Bend Radius Premium 4-Spiral Wire Hydraulic Hose | SAE 100R12 | 0.50″ ID
Original price was: $18.18.$12.73Current price is: $12.73.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Typical applications include construction, mining, farming and high performance industrial equipment. | SAE Rating: | Meets or exceeds: SAE 100R12, EN 856 Type R12, ISO 18752, ISO 3862 Type R12, EN 856 4SP performance (-8 thru -16) |
| Other Ratings: | MSHA Accepted, ABS Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | 4-Spiral Wire | Cover: | DURA-TUFF™ Synthetic Rubber |
| Temperature Range: | -40°F to +260°F (-40°C to +126°C) | ||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH493-6 | 10 | 9,5mm | 0.38″ | 20,2mm | 0.80″ | 448,0 bar | 6500 psi | 1792,0 bar | 26000 psi | 62,5mm | 2.46″ | 0,71 kg/m | 0.48 lbs/ft |
| GH493-8 | 12 | 12,7mm | 0.50″ | 23,6mm | 0.93″ | 415,0 bar | 6000 psi | 1660,0 bar | 24000 psi | 90,0mm | 3.54″ | 0,87 kg/m | 0.59 lbs/ft |
| GH493-10 | 16 | 15,9mm | 0.62″ | 27,4mm | 1.08″ | 415,0 bar | 6000 psi | 1660,0 bar | 24000 psi | 100,0mm | 3.94″ | 1,00 kg/m | 0.68 lbs/ft |
| GH493-12 | 19 | 19,0mm | 0.75″ | 30,7mm | 1.21″ | 380,0 bar | 5500 psi | 1520,0 bar | 22000 psi | 120,0mm | 4.72″ | 1,34 kg/m | 0.90 lbs/ft |
| GH493-16 | 25 | 25,4mm | 1.00″ | 37,9mm | 1.49″ | 350,0 bar | 5100 psi | 1400,0 bar | 20400 psi | 150,0mm | 5.91″ | 1,78 kg/m | 1.20 lbs/ft |
| GH493-20 | 31 | 31,8mm | 1.25″ | 46,6mm | 1.84″ | 310,0 bar | 4500 psi | 1240,0 bar | 18000 psi | 210,0mm | 8.27″ | 2,41 kg/m | 1.62 lbs/ft |
| GH493-24 | 38 | 38,1mm | 1.50″ | 53,9mm | 2.12″ | 275,0 bar | 4000 psi | 1100,0 bar | 16000 psi | 250,0mm | 9.84″ | 3,00 kg/m | 2.01 lbs/ft |
| GH493-32 | 51 | 50,8mm | 2.00″ | 66,8mm | 2.63″ | 275,0 bar | 4000 psi | 1100,0 bar | 16000 psi | 320,0mm | 12.60″ | 4,37 kg/m | 2.94 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
