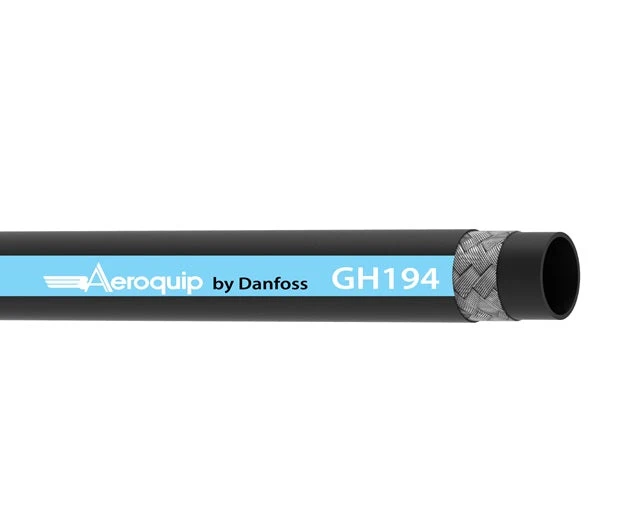

GH194-8 Aeroquip By Danfoss | HI-IMPULSE MatchMate® Global Premium High Temperature Single Wire Braid Hydraulic Hose | SAE 100R1AT | 0.50″ ID
Original price was: $13.05.$9.14Current price is: $9.14.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids. | SAE Rating: | Meets or exceeds: SAE 100R1AT Type S, EN 853 1SN, ISO 1436-1 Type 1SN performance. |
| Other Ratings: | MSHA Accepted, ABS Accepted, DNV Accepted | Tube: | AQP elastomer CPE |
| Reinforcement: | Single Wire Braid | Cover: | Blue CPE |
| Temperature Range: | -40°F to + 302°F (-40°C to + 150°C) | ||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH194-4 | 6 | 6,4mm | 0.25″ | 13,5mm | 0.53″ | 225 bar | 3,250 psi | 900 bar | 13,000 psi | 100,0mm | 3.94″ | 0,25 kg/m | 0.17 lbs/ft |
| GH194-6 | 10 | 9,5mm | 0.38″ | 17,3mm | 0.68″ | 215 bar | 3,125 psi | 860 bar | 12,500 psi | 125,0mm | 4.92″ | 0,37 kg/m | 0.25 lbs/ft |
| GH194-8 | 12 | 12,7mm | 0.50″ | 20,4mm | 0.80″ | 175 bar | 2,550 psi | 700 bar | 10,200 psi | 180,0mm | 7.09″ | 0,45 kg/m | 0.30 lbs/ft |
| GH194-10 | 16 | 15,9mm | 0.62″ | 23,8mm | 0.94″ | 140 bar | 2,050 psi | 560 bar | 8,200 psi | 205,0mm | 8.07″ | 0,54 kg/m | 0.36 lbs/ft |
| GH194-12 | 19 | 19,0mm | 0.75″ | 27,4mm | 1.08″ | 125 bar | 1,800 psi | 500 bar | 7,200 psi | 240,0mm | 9.45″ | 0,69 kg/m | 0.46 lbs/ft |
| GH194-16 | 25 | 25,4mm | 1.00″ | 36,2mm | 1.42″ | 90 bar | 1,300 psi | 360 bar | 5,200 psi | 300,0mm | 11.81″ | 0,98 kg/m | 0.66 lbs/ft |
| GH194-20 | 31 | 31,8mm | 1.25″ | 43,9mm | 1.73″ | 65 bar | 950 psi | 260 bar | 3,800 psi | 420,0mm | 16.54″ | 1,26 kg/m | 0.85 lbs/ft |
| GH194-24 | 38 | 38,1mm | 1.50″ | 50,6mm | 1.99″ | 50 bar | 725 psi | 200 bar | 2,900 psi | 500,0mm | 19.69″ | 1,58 kg/m | 1.06 lbs/ft |
| GH194-32 | 51 | 50,8mm | 2.00″ | 64,0mm | 2.52″ | 40 bar | 580 psi | 160 bar | 2,320 psi | 630,0mm | 24.80″ | 2,04 kg/m | 1.37 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
