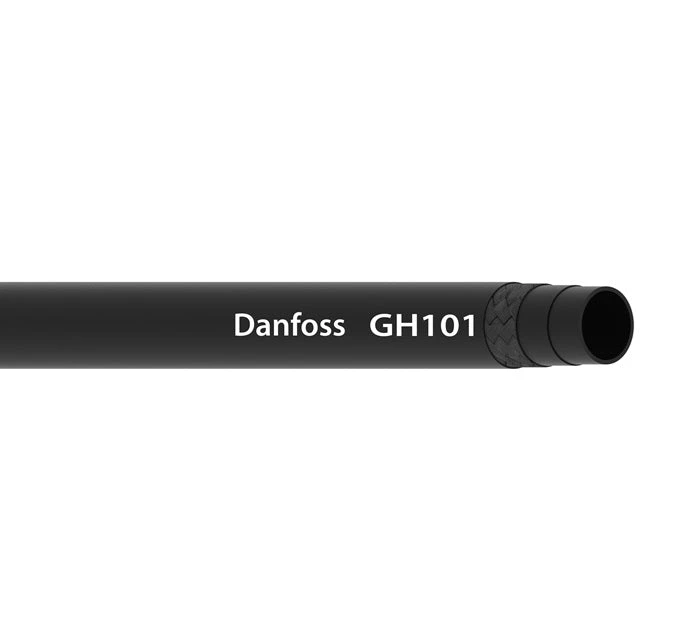

GH101-8 Aeroquip By Danfoss | Diesel & Biodiesel Transportation Hose | CPE Rubber Cover | 0.50″ ID
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | High temperature, low pressure oil. Engine fuel systems for diesel and biodiesel use. Low pressure oil applications, including synthetics for transmission oil cooler applications. | SAE Ratings: | N/A |
| Other Ratings: | Meets: ASTM D380, ASTM D6751, EN412, EN2240 | Tube: | Eaton Developed HNBR |
| Reinforcement: | Aramid Braid | Cover: | CPE Rubber |
| Operating Parameters: | Up to B20: -40°F to +302°F (-40°C to +150°C) Up to B100: -40°F to +257°F (-40°C to +125°C) | ||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Vacuum Service | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kPa | in. Hg. | kg/m | lbs/ft | |
| GH101-4 | 7 | 6,4mm | 0.25″ | 14,6mm | 0.57″ | 28,0 bar | 400 psi | 112,0 bar | 1600 psi | 31,8mm | 1.25″ | 94,8kPa | 28 in. Hg. | 0,14 kg/m | 0.09 lbs/ft |
| GH101-6 | 10 | 9,5mm | 0.38″ | 17,4mm | 0.59″ | 28,0 bar | 400 psi | 112,0 bar | 1600 psi | 38,1mm | 2.00″ | 94,8kPa | 28 in. Hg. | 0,18 kg/m | 0.12 lbs/ft |
| GH101-8 | 12 | 12,7mm | 0.50″ | 21,2mm | 0.83″ | 28,0 bar | 400 psi | 112,0 bar | 1600 psi | 50,8mm | 2.50″ | 94,8kPa | 28 in. Hg. | 0,25 kg/m | 0.17 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
