GC66-8x15 By Couplamatic | Grip Crimp Coupling | 1/2" Hose ID X M22x1.5 Thread Size DIN Light 24° Seat Male Solid | Straight | Trivalent Zinc Plating

GC66-8×15 By Couplamatic | Grip Crimp Coupling | 1/2″ Hose ID X M22x1.5 Thread Size DIN Light 24° Seat Male Solid | Straight | Trivalent Zinc Plating

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 7356080324773 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, Grip Crimp Couplings, Grip Crimp DIN Light 24° Seat - Male Solid, Grip Crimp DIN Light Fittings, Grip Crimp Trivalent Zinc Plating Couplings, LegacyProductTypeReplacement_Male Solid, Male-solid, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_straight, Thread-type_din-light

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI’s recommended crimp specification. Trivalent Zinc Plating

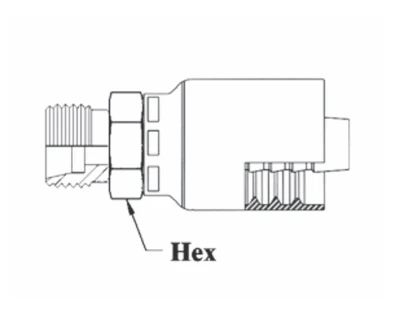

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Gates Mega	Parker 43
GC66-4×8	1/4″	M14x1.5	8mm	5/8″	4G-8MDL	1D043-8-4
GC66-6×10	3/8″	M16x1.5	10mm	3/4″	6G-10MDL	1D043-10-6
GC66-6×12	3/8″	M18x1.5	12mm	3/4″	6G-12MDL	1D043-12-6
GC66-8×15	1/2″	M22x1.5	15mm	7/8″	8G-15MDL	1D043-15-8
GC66-10×18	5/8″	M26x1.5	18mm	1-1/16″	–	1D043-18-10
GC66-12×22	3/4″	M30x2.0	22mm	1-1/4″	12G-22MDL	1D043-22-12

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
