GC45-10x20 By Couplamatic | Grip Crimp Coupling | 5/8" Hose ID X M30x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating

GC45-10×20 By Couplamatic | Grip Crimp Coupling | 5/8″ Hose ID X M30x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating

Original price was: $25.11.Current price is: $17.58.

SKU: AG9ZZ 7356082978981 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, Female-swivel, Grip Crimp Couplings, Grip Crimp DIN Heavy 24° Seat - Female Swivel 90° Bend, Grip Crimp DIN Heavy Fittings, Grip Crimp Trivalent Zinc Plating Couplings, LegacyProductTypeReplacement_Female Swivel, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_90-deg-elbow, Thread-type_din-heavy

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI’s recommended crimp specification. Trivalent Zinc Plating

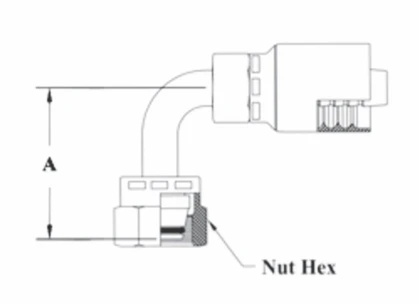

Part Number	Hose ID	Tube Size	Thread Size	A-DropInches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Thread Size	A-DropInches	Nut Hex	Gates Mega	Parker 43
GC45-4×10	1/4″	10mm	M18x1.5	1.50″	7/8″	–	–
GC45-6×12	3/8″	12mm	M20x1.5	1.95″	1″	–	11C43-12-6
GC45-6×14	3/8″	14mm	M22x1.5	2.07″	1-1/16″	6G-14FDHORX90	11C43-14-6
GC45-8×16	1/2″	16mm	M24x1.5	2.05″	1-1/8″	8G-16FDHORX90	11C43-16-8
GC45-10×20	5/8″	20mm	M30x2.0	2.38″	1-1/2″	–	–

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
