GC41-6x10 By Couplamatic | Grip Crimp Coupling | 3/8" Hose ID X M16x1.5 Thread Size DIN Light Universal Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating

GC41-6×10 By Couplamatic | Grip Crimp Coupling | 3/8″ Hose ID X M16x1.5 Thread Size DIN Light Universal Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating

Original price was: $14.49.Current price is: $10.14.

SKU: AG9ZZ 7356080586917 Categories: , Tags: , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI’s recommended crimp specification.
  • Trivalent Zinc Plating

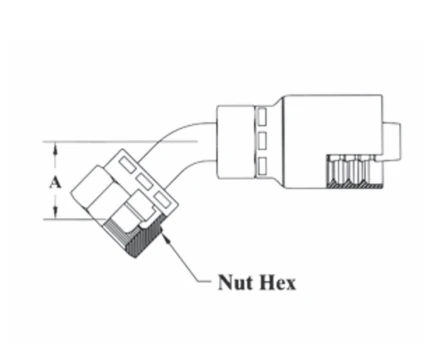

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC41-4×8* 1/4″ 8mm M14x1.5 0.97″ 11/16″ 4G-8FDLORX45 1C443-8-4
GC41-4×10 1/4″ 10mm M16x1.5 0.96″ 3/4″ – 1C443-10-4
GC41-6×10* 3/8″ 10mm M16x1.5 0.96″ 3/4″ 6G-10FDLORX45 1C443-10-6
GC41-6×12 3/8″ 12mm M18x1.5 1.00″ 7/8″ – 1C443-12-6
GC41-8×15* 1/2″ 15mm M22x1.5 1.18″ 1-1/16″ 8G-15FDLORX45 1C443-15-8
GC41-10×18 5/8″ 18mm M26x1.5 1.25″ 1-1/4″ – 1C443-18-10
GC41-12×22 3/4″ 22mm M30x2.0 1.41″ 1-1/2″ – 1C443-22-12

*Does not have groove for optional O-ring

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
