Sale!

GC26-10x10 By Couplamatic | Grip Crimp Coupling | 5/8" Hose ID X 7/8x14 Thread Size JIC/SAE Dual Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack Of 5

GC26-10×10 By Couplamatic | Grip Crimp Coupling | 5/8″ Hose ID X 7/8×14 Thread Size JIC/SAE Dual Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack Of 5

Original price was: $64.80.Current price is: $45.36.

SKU: AG9ZZ 7356063318181 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, Female-swivel, Grip Crimp Couplings, Grip Crimp JIC Fittings, Grip Crimp JIC/SAE Dual Seat - 90° Female Swivel, Grip Crimp Trivalent Zinc Plating Couplings, LegacyProductTypeReplacement_Female Swivel, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_90-deg-elbow, Thread-type_jic, Thread-type_sae

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI’s recommended crimp specification. Trivalent Zinc Plating

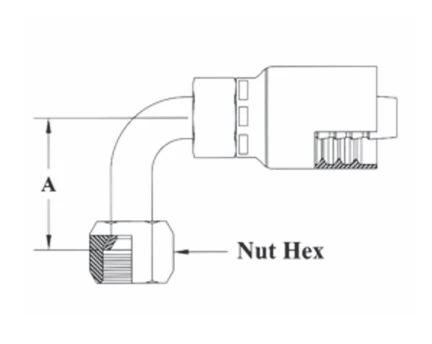

Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Gates Mega	Parker 43
GC26-4×4	1/4″	7/16×20	1/4″	0.81″	9/16″	4G-4FJX90M	13943-4-4
GC26-4×5	1/4″	1/2×20	5/16″	0.83″	5/8″	4G-5FJX90M	13943-5-4
GC26-4×6*	1/4″	9/16×18	3/8″	0.91″	11/16″	4G-6FJX90M	13943-6-4
GC26-6×4	3/8″	7/16X20	1/4″	0.81″	9/16″	–	13943-4-6
GC26-6×5	3/8″	1/2×20	5/16″	0.83″	5/8″	–	13943-5-6
GC26-6×6*	3/8″	9/16×18	3/8″	0.91″	11/16″	6G-6FJX90M	13943-6-6
GC26-6×8	3/8″	3/4×16	1/2″	1.15″	7/8″	6G-8FJX90M	13943-8-6
GC26-8×8	1/2″	3/4×16	1/2″	1.15″	7/8″	8G-8FJX90M	13943-8-8
GC26-8×10	1/2″	7/8×14	5/8″	1.23″	1″	8G-10FJX90M	13943-10-8
GC26-10×10	5/8″	7/8×14	5/8″	1.23″	1″	10G-10FJX90S	13943-10-10
GC26-10×12*	5/8″	1-1/16×12	3/4″	1.88″	1-1/4″	10G-12FJX90S	13943-12-10
GC26-12×10	3/4″	7/8×14	5/8″	1.23″	1″	12G-10FJX90M	13943-10-12
GC26-12×12*	3/4″	1-1/16×12	3/4″	1.88″	1-1/4″	12G-12FJX90M	13943-12-12
GC26-12×16*	3/4″	1-5/16×12	1″	2.20″	1-1/2″	–	13943-12-12
GC26-16×16*	1″	1-5/16×12	1″	2.20″	1-1/2″	16G-16FJX90M	13943-12-12
GC26-20×20	1-1/4″	1-5/8×12	1-1/4″	3.31″	2″	20G-20FJX90M	13943-20-20

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
