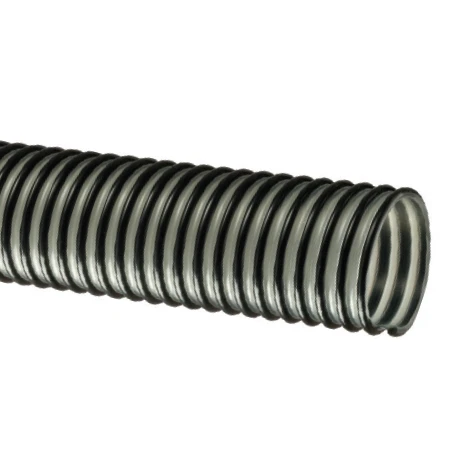

GC-C500X100 Tigerflex By Kuriyama | GC-C Series | Ground Cover Heavy Duty Lined Material Handling Hose | 5″ ID | Polyurethane | 100ft Length

Original price was: $353.00.Current price is: $96.99.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Material handling – heavy duty abrasive, Soil, seed and compost delivery, Mulch, bark, wood chips and other surfacing material delivery	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Rigid PVC Helix	Cover:	PVC
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Abrasion Resistant Polyurethane Liner – designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses. “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures. Convoluted Outer Cover – Provides increased hose flexibility. Allows for easier unwinding and winding on hose reels. Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow. Oil Resistant Polyurethane Liner – Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
GC-C400X100	4″	101.6mm	4.59″	116.6mm	30 PSI	15 PSI	28 in. Hg	25 in. Hg	6″	100ft	1.00 lbs
GC-C500X100	5″	127.0mm	5.57″	141.5mm	30 PSI	15 PSI	25 in. Hg	20 in. Hg	10″	100ft	1.80 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
