Sale!

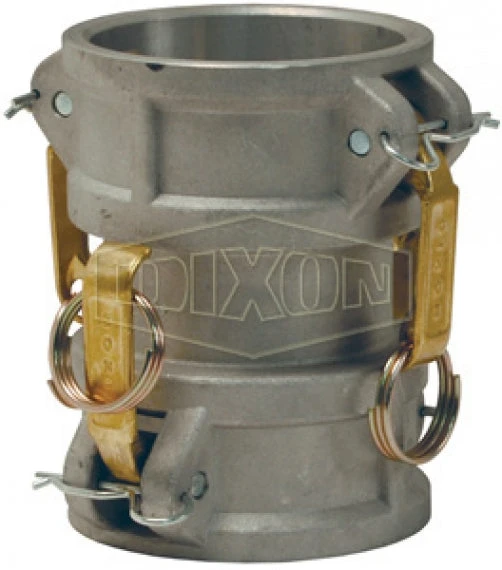

G400-DD-AL By Dixon Valve | Global Cam & Groove Spool Coupler | Type DD | 4" Coupler X 4" Coupler | A380 Permanent Mold Aluminum

G400-DD-AL By Dixon Valve | Global Cam & Groove Spool Coupler | Type DD | 4″ Coupler X 4″ Coupler | A380 Permanent Mold Aluminum

Original price was: $93.35.Current price is: $65.35.

SKU: AG9ZZ 1478495961124 Categories: , Tags: , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Construction:
  • Made to Dixon specifications and branded Dixon.
  • Nitrile rubber seals standard.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 Coupler x Coupler Size Max. Operating Pressure
G200-DD-AL G200-DD-SS 2″ x 2″ 250 PSI
G300-DD-AL G300-DD-SS 3″ x 3″ 125 PSI
G400-DD-AL G400-DD-SS 4″ x 4″ 100 PSI
