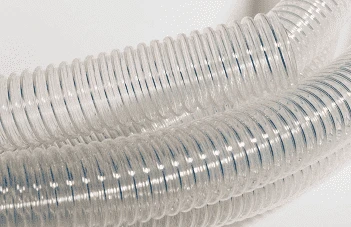

FXFE6.CONV.12S Versilon™ By Saint Gobain | 5/8″ I.D. X 3/4″ O.D. X .025″ Wall | ConvoFlex | Convoluted Flexible FEP Tubing | 50′ Package Length
Original price was: $338.00.$97.99Current price is: $97.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Biotech, Pharmaceutical, Aerospace, Semiconductor, Chemical Processing | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | FEP |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | N/A | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | FDA |
| Literature: | Versilon™™ Convoflex Convoluted Flexible FEP Tubing (PDF) | ||
| Other Features: | |||
| |||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Min. Bend Radius (in.) | Burst Pressure (PSI)* | Cv** |
|---|---|---|---|---|---|---|
| FXFE6.CONV.06S | 1/4″ | 3/8″ | .020″ | 1/2″ | 100 PSI | 0.31 |
| FXFE6.CONV.08S | 3/8″ | 1/2″ | .023″ | 3/4″ | 70 PSI | 0.83 |
| FXFE6.CONV.10S | 1/2″ | 5/8″ | .025″ | 1″ | 60 PSI | 1.64 |
| FXFE6.CONV.12S | 5/8″ | 3/4″ | .025″ | 1-1/2″ | 50 PSI | 2.78 |
| FXFE6.CONV.14S | 3/4″ | 7/8″ | .025″ | 2″ | 40 PSI | 4.56 |
| FXFE6.CONV.16S | 7/8″ | 1″ | .025″ | 2-1/2″ | 38 PSI | 8.20 |
*Each individual application should be evaluated to determine the degree of safety factor to be used with these values.
**Based on a long radius sweep.
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics.
Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation
This product is priced and sold by Packaged Length. At this time, this particular hose is not available “by the foot” through our site.
