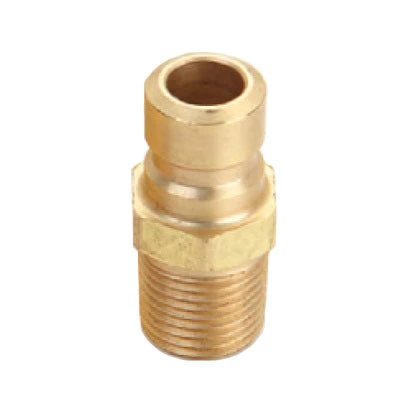

FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8" Male NPTF X 1/4" Body Size | Plug | Brass
FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8" Male NPTF X 1/4" Body Size | Plug | Brass - Image 2
FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8" Male NPTF X 1/4" Body Size | Plug | Brass - Image 3
FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8" Male NPTF X 1/4" Body Size | Plug | Brass - Image 4

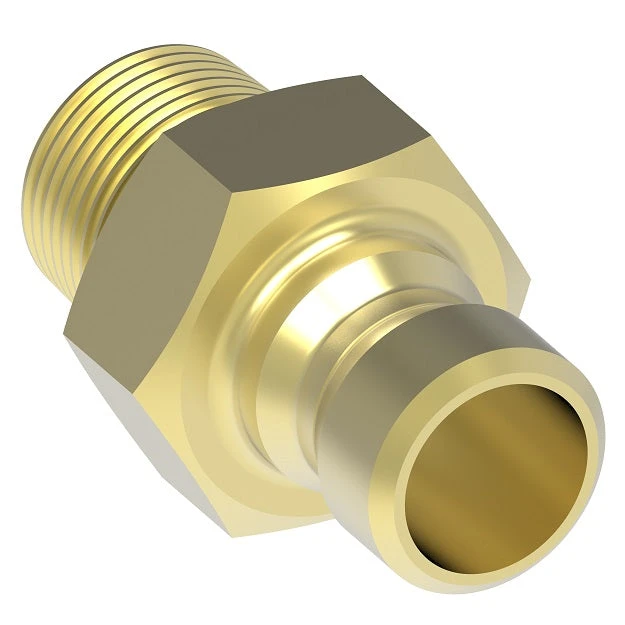

FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8" Male NPTF X 1/4" Body Size | Plug | Brass -Hose Ware House Danfoss Hansen Flo Temp Series Male Thread Plug 2 1b224acd e2c7 419f 9ee7 7bcabaf2e4dd
FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8" Male NPTF X 1/4" Body Size | Plug | Brass -Hose Ware House Danfoss Hansen Flo Temp Series Male Thread Plug 3 b168d1e6 ec11 4767 a5dc e01d5cb2e136

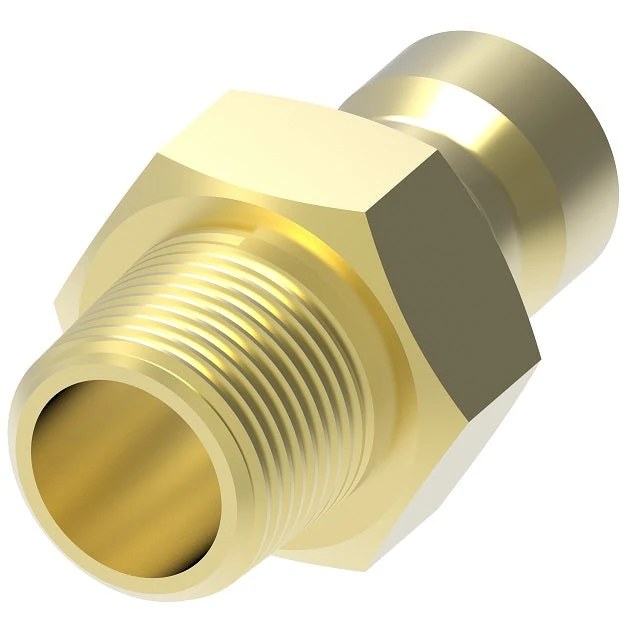

FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8" Male NPTF X 1/4" Body Size | Plug | Brass -Hose Ware House Danfoss Hansen Flo Temp Series Male Thread Plug 4 337882dd 2559 4a8f 9072 989fa7c727d1

FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8″ Male NPTF X 1/4″ Body Size | Plug | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 1481730981924 Categories: , Tags: , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • Non valved straight through models for maximum flow.
  • Valved sockets/females for automatic shut-off when line is disconnected.
  • Brass plugs/males with male pipe thread for recessed mounting to avoid damage to plugs/males when molds are being changed or stored.
Applications & Markets:
  • Injection Molding
  • Heating and Cooling
Materials:
  • Standard body material: Brass
Size Max. Operating Pressure Min. Burst Pressure Rated Flow
1/4″ 14 bar 200 psi 56 bar 800 psi 8.3 lpm 2.2 gpm
3/8″ 14 bar 200 psi 56 bar 800 psi 17 lpm 4.5 gpm
1/2″ 14 bar 200 psi 56 bar 800 psi 49 lpm 13 gpm
FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8" Male NPTF X 1/4" Body Size | Plug | Brass -Hose Ware House DanfossHansenFlo
Male/Plug (Figure 1)
Flo-Temp Series | Male Thread
Part Number Coupling Type Body Size Port Size Thread Type Figure Dimensions Installation Recess
A B C DIA Depth
FTP251 Plug/Male 1/4″ 1/8″ 1/8-27 Male NPTF 1 0.94″
(23.9mm)		 0.49″
(12.4mm)		 0.44″
(11.2mm)		 0.69″
(17.5mm)		 0.69″
(17.5mm)
FTP251BST Plug/Male 1/4″ 1/8″ 1/8-28 Male BSPT 1 0.94″
(23.9mm)		 0.49″
(12.4mm)		 0.44″
(11.2mm)		 0.69″
(17.5mm)		 0.69″
(17.5mm)
FTP252 Plug/Male 1/4″ 1/4″ 1/4-18 Male NPTF 1 1.15″
(29.2mm)		 0.63″
(16.0mm)		 0.56″
(14.2mm)		 0.84″
(21.3mm)		 0.94″
(23.9mm)
FTP252BST Plug/Male 1/4″ 1/4″ 1/4-19 Male BSPT 1 1.15″
(29.2mm)		 0.63″
(16.0mm)		 0.56″
(14.2mm)		 0.84″
(21.3mm)		 0.94″
(23.9mm)
FTP253 Plug/Male 1/4″ 3/8″ 3/8-18 Male NPTF 1 1.19″
(30.2mm)		 0.77″
(19.6mm)		 0.69″
(17.5mm)		 1.00″
(25.4mm)		 0.94″
(23.9mm)
FTP352 Plug/Male 3/8″ 1/4″ 1/4-18 Male NPTF 1 1.40″
(35.6mm)		 0.63″
(16.0mm)		 0.56″
(14.2mm)		 1.00″
(25.4mm)		 1.09″
(27.7mm)
FTP352BST Plug/Male 3/8″ 1/4″ 1/4-19 Male BSPT 1 1.40″
(35.6mm)		 0.63″
(16.0mm)		 0.56″
(14.2mm)		 1.00″
(25.4mm)		 1.09″
(27.7mm)
FTP353 Plug/Male 3/8″ 3/8″ 3/8-18 Male NPTF 1 1.40″
(35.6mm)		 0.77″
(19.6mm)		 0.69″
(17.5mm)		 1.00″
(25.4mm)		 1.13″
(28.7mm)
FTP353BST Plug/Male 3/8″ 3/8″ 3/8-19 Male BSPT 1 1.40″
(35.6mm)		 0.77″
(19.6mm)		 0.69″
(17.5mm)		 1.00″
(25.4mm)		 1.13″
(28.7mm)
FTP354 Plug/Male 3/8″ 1/2″ 1/2-14 Male NPTF 1 1.56″
(39.6mm)		 0.98″
(24.9mm)		 0.88″
(22.4mm)		 1.19″
(30.2mm)		 1.25″
(31.8mm)
FTP554 Plug/Male 1/2″ 1/2″ 1/2-14 Male NPTF 1 1.75″
(44.5mm)		 0.98″
(24.9mm)		 0.88″
(22.4mm)		 1.25″
(31.8mm)		 1.50″
(38.1mm)
FTP556 Plug/Male 1/2″ 3/4″ 3/4-14 Male NPTF 1 1.75″
(44.5mm)		 1.25″
(31.8mm)		 1.13″
(28.7mm)		 1.50″
(38.1mm)		 1.56″
(39.6mm)
FTP253 Hansen By Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | 3/8" Male NPTF X 1/4" Body Size | Plug | Brass -Hose Ware House DanfossHansenFlo
Male/Plug (Figure 2)
Flo-Temp Series | Female Thread
Part Number Coupling Type Body Size Port Size Thread Type Figure Dimensions
D E Hex
FTP251F Plug/Male 1/4″ 1/8″ 1/8-27 Female NPTF 2 1.00″
(25.4mm)		 0.58″
(14.7mm)		 0.50″
(12.7mm)
FTP252F Plug/Male 1/4″ 1/4″ 1/4-18 Female NPTF 2 1.20″
(30.5mm)		 0.72″
(18.3mm)		 0.63″
(16.0mm)
FTP352F Plug/Male 3/8″ 1/4″ 1/4-18 Female NPTF 2 1.38″
(35.1mm)		 0.72″
(18.3mm)		 0.63″
(16.0mm)
FTP353F Plug/Male 3/8″ 3/8″ 3/8-18 Female NPTF 2 1.40″
(35.6mm)		 0.87″
(22.1mm)		 0.75″
(19.1mm)
FTP354F Plug/Male 3/8″ 1/2″ 1/2-14 Female NPTF 2 1.62″
(41.1mm)		 1.08″
(27.4mm)		 0.94″
(23.9mm)
FTP554F Plug/Male 1/2″ 1/2″ 1/2-14 Female NPTF 2 1.72″
(43.7mm)		 1.08″
(27.4mm)		 0.94″
(23.9mm)
FTP556F Plug/Male 1/2″ 3/4″ 3/4-14 Female NPTF 2 1.78″
(45.2mm)		 1.30″
(33.0mm)		 1.13″
(28.7mm)
