Sale!

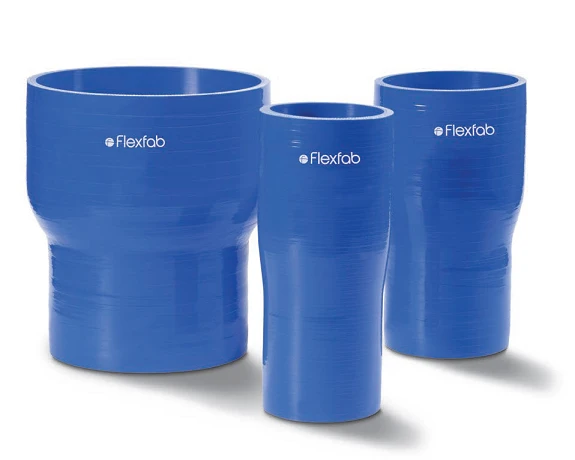

FLX7903-100150 By FlexFab | Series 7903 | 4-ply Reducer | 1.00"/1.50" ID | 1.39"/1.89" OD | Blue | 6" Overall Length

FLX7903-100150 By FlexFab | Series 7903 | 4-ply Reducer | 1.00″/1.50″ ID | 1.39″/1.89″ OD | Blue | 6″ Overall Length

Original price was: $18.49.Current price is: $12.94.

SKU: AG9ZZ 1481965502500 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Overview:
  • Can be used as a coolant hose
  • Can be used as a charge air connector (CAC)
  • Comes in standard 6″ lengths
Construction:
  • Silicone hose with 4-plies of Meta-Aramid Reinforcement
Specifications:
  • Meets or exceeds the operating requirements of SAE J20 R1 Class A
  • Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
  • Standard Wall Thickness is .170″/.220″
  • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Working pressure is 1/3 of the burst pressure
Applications:
  • For heavy duty pressure connections in hostile engine environments
  • Resists hardening, cracking, cold leaks, aging, and many chemicals
Part Number Inside Diameter Outside Diameter Overall LengthInches Burst Pressure Weight Clamp
SAE J20 R1 TMC
FLX7903-100125 1.00″/1.25″ 1.39″/1.64″ 6.00″ 275 PSI 125 PSI 0.50 lbs. FLX2582-0016 /
FLX2582-0020
FLX2584-0175 /
FLX2584-0212
FLX7903-100150 1.00″/1.50″ 1.39″/1.89″ 6.00″ 250 PSI 125 PSI 0.50 lbs. FLX2582-0016 /
FLX2582-0024
FLX2584-0175/
FLX2584-0212
FLX7903-100175 1.00″/1.75″ 1.39″/2.14″ 6.00″ 225 PSI 125 PSI 0.50 lbs. FLX2582-0016 /
FLX2582-0028
FLX2584-0175/
FLX2584-0262
FLX7903-100200 1.00″/2.00″ 1.39″/2.39″ 6.00″ 200 PSI 100 PSI 0.50 lbs FLX2582-0016 /
FLX2582-0032
FLX2584-0175/
FLX2584-0262
FLX7903-125200 1.25″/2.00″ 1.64″/2.39″ 6.00″ 200 PSI 100 PSI 0.50 lbs. FLX2582-0020 /
FLX2582-0032
FLX2584-0175/
FLX2584-0262
FLX7903-150200 1.50″/2.00″ 1.89″/2.39″ 6.00″ 200 PSI 100 PSI 0.50 lbs. FLX2582-0024 /
FLX2582-0032
FLX2584-0212/
FLX2584-0262
FLX7903-175200 1.75″/2.00″ 2.14″/2.39″ 6.00″ 200 PSI 100 PSI 0.50 lbs. FLX2582-0028 /
FLX2582-0032
FLX2584-0262/
FLX2584-0262
FLX7903-200225 2.00″/2.25″ 2.39″/2.64″ 6.00″ 175 PSI 100 PSI 0.50 lbs. FLX2582-0032 /
FLX2582-0036
FLX2584-0262/
FLX2584-0312
FLX7903-200250 2.00″/2.50″ 2.39″/2.89″ 6.00″ 150 PSI 100 PSI 0.50 lbs. FLX2582-0032 /
FLX2582-0040
FLX2584-0262/
FLX2584-0312
FLX7903-200275 2.00″/2.75″ 2.39″/3.14″ 6.00″ 125 PSI 100 PSI 0.50 lbs FLX2582-0032 /
FLX2582-0044
FLX2584-0262/
FLX2584-0362
FLX7903-200300 2.00″/3.00″ 2.39″/3.39″ 6.00″ 100 PSI 100 PSI 0.50 lbs FLX2582-0032 /
FLX2582-0048
FLX2584-0262/
FLX2584-0362
FLX7903-225250 2.25″/2.50″ 2.64″/2.89″ 6.00″ 150 PSI 100 PSI 0.50 lbs FLX2582-0036 /
FLX2582-0040
FLX2584-0312/
FLX2584-0312
FLX7903-225275 2.25″/2.75″ 2.64″/3.14″ 6.00″ 125 PSI 100 PSI 0.50 lbs FLX2582-0036 /
FLX2582-0044
FLX2584-0312/
FLX2584-0362
FLX7903-225300 2.25″/3.00″ 2.64″/3.39″ 6.00″ 100 PSI 100 PSI 0.50 lbs FLX2582-0036 /
FLX2582-0048
FLX2584-0312/
FLX2584-0362
FLX7903-250275 2.50″/2.75″ 2.89″/3.14″ 6.00″ 125 PSI 100 PSI 0.50 lbs FLX2582-0040 /
FLX2582-0044
FLX2584-0312/
FLX2584-0362
FLX7903-250300 2.50″/3.00″ 2.89″/3.39″ 6.00″ 100 PSI 100 PSI 0.50 lbs FLX2582-0040 /
FLX2582-0048
FLX2584-0312/
FLX2584-0362
FLX7903-250350 2.50″/3.50″ 2.89″/3.89″ 6.00″ 75 PSI 100 PSI 0.50 lbs FLX2582-0040 /
FLX2582-0056
FLX2584-0312/
FLX2584-0412
FLX7903-275300 2.75″/3.00″ 3.14″/3.39″ 6.00″ 100 PSI 100 PSI 0.50 lbs FLX2582-0044 /
FLX2582-0048
FLX2584-0362/
FLX2584-0362
FLX7903-300350 3.00″/3.50″ 3.39″/3.89″ 6.00″ 75 PSI 100 PSI 0.50 lbs FLX2582-0048 /
FLX2582-0056
FLX2584-0362/
FLX2584-0412
FLX7903-300400 3.00″/4.00″ 3.39″/4.39″ 6.00″ 50 PSI 100 PSI 0.50 lbs FLX2582-0048 /
FLX2582-0064
FLX2584-0362/
FLX2584-0462
FLX7903-350400 3.50″/4.00″ 3.89″/4.39″ 6.00″ 50 PSI 100 PSI 0.50 lbs FLX2582-0056 /
FLX2582-0064
FLX2584-0412/
FLX2584-0462
FLX7903-400500 4.00″/5.00″ 4.39″/5.39″ 6.00″ N/A N/A 0.50 lbs FLX2584-0462 /
FLX2584-0562

*Specifications for reference only. Specific test data available on request.
