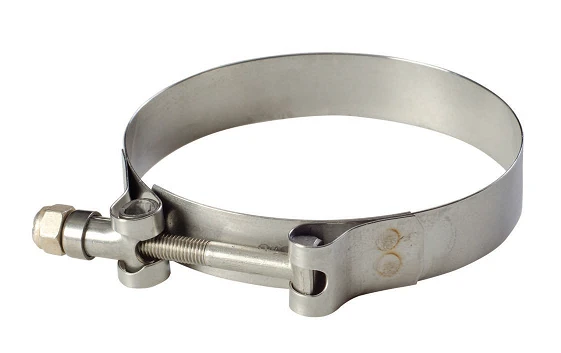

FLX2583-0500 By FlexFab | Series 2583 | T-Bolt Clamps | 5.00″ Min Dia | 5.31″ Max Dia | 10 Per Pack

Original price was: $101.80.Current price is: $71.26.

SKU: AG9ZZ 1481976217636 Categories: Fittings & Clamps, Ties Banding & Clamps Tags: 2583 Series, 2583 Series T-Bolt Clamps, All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Ties Banding And Clamps, Collection-lvl3_Clamps, FlexFab Clamps, FlexFab Silicone Hose, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Ties-banding-and-clamps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Recommended for Charge Air Connectors and Turbo Charger Sleeves Heavy-duty T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in high vibration applications in heavy-duty trucks, industrial machinery, off-road equipment, agricultural irrigation equipment and machinery. Features a 3/4″ wide stainless steel band with welded construction for reliability.
Specifications:
All 300 grade stainless steel T-bolt clamps Hex Head: 7/16″ with Nylon insert Band Width: 3/4″
Applications:
Recommended for silicone coolant hose, CAC hose, turbo sleeves, marine hose, 90 and 45 degree elbows, and silfab ducting Resists salt water and may be used in marine applications
CAC And Turbo Charger Hose Clamping Instructions:
Use only T-bolt style clamps. Constant torque T-bolt style clamps may help retain clamp load. Torque clamps to 70-75 inch-lbs.

Part Number	Min. Dia. (in.)	Max. Dia.(in.)	PackSize	Weightlbs – Per 10
FLX2583-0138	1.38″	1.56″	10	1 lbs
FLX2583-0150	1.50″	1.63″	10	1.5 lbs
FLX2583-0163	1.63″	1.88″	10	1.5 lbs
FLX2583-0175	1.75″	2.00″	10	1.5 lbs
FLX2583-0188	1.88″	2.19″	10	1.5 lbs
FLX2583-0200	2.00″	2.31″	10	1.5 lbs
FLX2583-0213	2.13″	2.44″	10	1.5 lbs
FLX2583-0225	2.25″	2.56″	10	1.5 lbs
FLX2583-0238	2.38″	2.69″	10	1.5 lbs
FLX2583-0250	2.50″	2.81″	10	1.5 lbs
FLX2583-0263	2.63″	2.94″	10	1.5 lbs
FLX2583-0275	2.75″	3.06″	10	1.5 lbs
FLX2583-0288	2.88″	3.19″	10	1.5 lbs
FLX2583-0300	3.00″	3.31″	10	1.5 lbs
FLX2583-0313	3.13″	3.44″	10	1.5 lbs
FLX2583-0325	3.25″	3.56″	10	1.5 lbs
FLX2583-0338	3.38″	3.69″	10	1.5 lbs
FLX2583-0350	3.50″	3.81″	10	1.5 lbs
FLX2583-0363	3.63″	3.94″	10	1.5 lbs
FLX2583-0375	3.75″	4.06″	10	1.5 lbs
FLX2583-0400	4.00″	4.31″	10	2 lbs
FLX2583-0425	4.25″	4.56″	10	2 lbs
FLX2583-0450	4.50″	4.81″	10	2 lbs
FLX2583-0475	4.75″	5.06″	10	2 lbs
FLX2583-0500	5.00″	5.31″	10	2 lbs
